Pslab mini hardware
About the Pslab mini hardware PCB
Pslab mini hardware is an open source ESP32 PCB design by fossasia, published on GitHub under the Apache-2.0 license. It is a 4-layer board measuring 85 × 56 mm, with 154 components from 68 distinct parts.
Its main chip is the ESP32-C3, from the ESP32 family. Other key parts include the AMS1117-3.3, MT2496, IP5189T-QW, SP0503BAHT and OPA356AIDBVR. By type, the board carries 59 capacitors, 52 resistors, 12 ICs, 8 diodes, 6 connectors and 6 inductors.
It belongs with the test & measurement, iot & wireless and power & battery designs in this gallery.

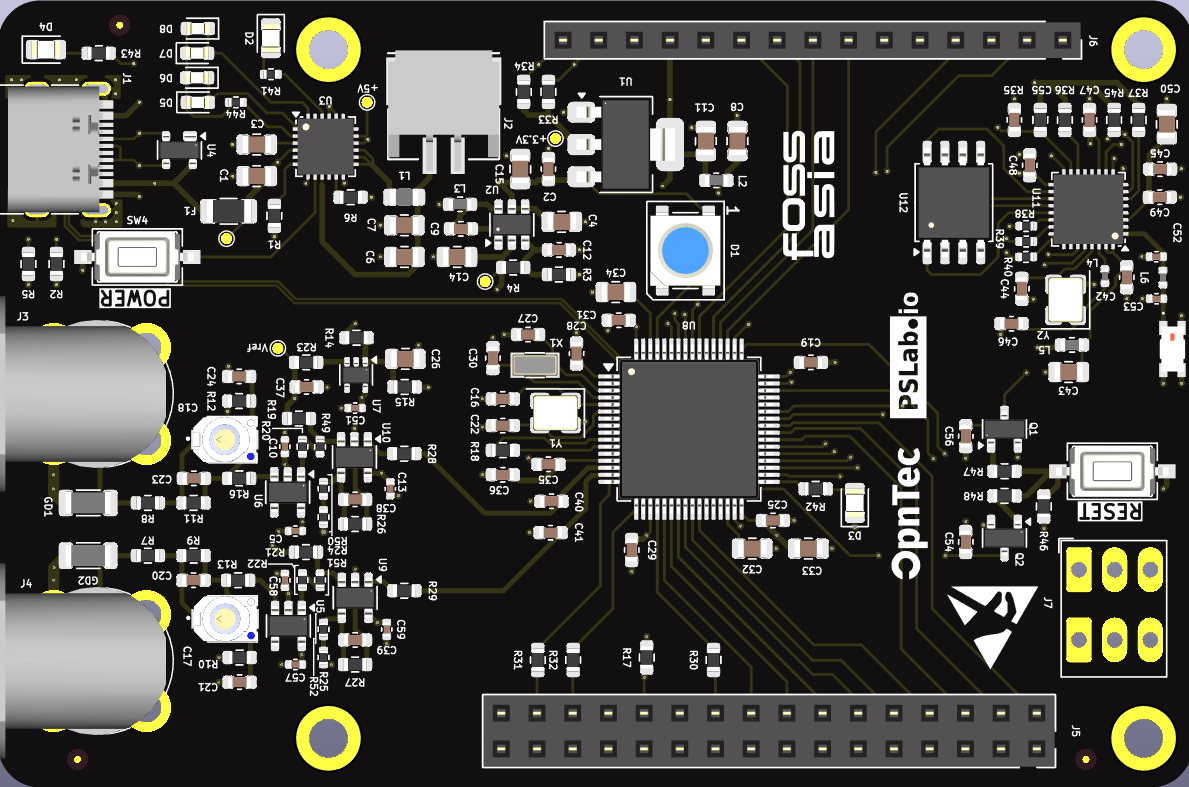

From the project
PSLab Mini Hardware https://pslab.io
This repository contains the PSLab-Mini hardware design files. PSLab-Mini is a scaled-down version of the PSLab board, aiming to provide instruments for doing signal measurements. It consists of an Oscilloscope, a Logic analyzer, and a Multimeter.
It also integrates an ESP chip in conjunction with the main MCU(STM32), for enabling wireless connectivity via the board.
Main components on the Pslab mini hardware
Pslab mini hardware bill of materials (BOM)
154 components, 68 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AMS1117-3.3 | SOT-223-3_TabPin2 | U1 |
| 1 | MT2496 | SOT-23-6 | U2 |
| 1 | IP5189T-QW IP5189T | QFN-24-1EP_4x4mm_P0.5mm_EP2.6x2.6mm | U3 |
| 1 | SP0503BAHT | SOT-143 | U4 |
| 4 | OPA356AIDBVR | SOT-23-5 | U5, U6, U9, U10 |
| 1 | TLV9001IDCK | SOT-353_SC-70-5 | U7 |
| 1 | STM32H563RIT6 | LQFP-64_10x10mm_P0.5mm | U8 |
| 1 | ESP32-C3 | QFN-32-1EP_5x5mm_P0.5mm_EP3.7x3.7mm | U11 |
| 1 | W25Q32JVSSIQ W25Q32JV | SOIC-8_5.3x5.3mm_P1.27mm | U12 |
| 2 | MMBT3904 | SOT-416 | Q1, Q2 |
| 1 | 32KHZ768 32kHz768 | Crystal_SMD_3215-2Pin_3.2x1.5mm | X1 |
| 1 | CRYSTAL_25MHZ Crystal_25MHz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 1 | 40MHZ 40MHz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y2 |
| 1 | GT-USB-7010ASV USB_C_Receptacle_USB2.0_16P | USB_C_Receptacle_G-Switch_GT-USB-7010ASV | J1 |
| 1 | BAT | 2.0mm_connector_edge | J2 |
| 2 | Conn_Coaxial | BNC_connector_dosinconn DOSIN-801-0050 | J3, J4 |
| 1 | CONN_02X16_ODD_EVEN Conn_02x16_Odd_Even | PinSocket_2x16_P2.54mm_Vertical | J5 |
| 1 | CONN_01X15_SOCKET Conn_01x15_Socket | PinSocket_1x15_P2.54mm_Vertical | J6 |
| 1 | 2450AT18D0100001E | 2450AT18D0100001E | ANT1 |
| 1 | 1A | Fuse_1206_3216Metric | F1 |
Show 48 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | SMD3216-090N | SMD3216-090N | GD1, GD2 |
| 1 | Reset | SW_Tactile_SPST_NO_Straight_CK_PTS636Sx25SMTRLFS | SW1 |
| 1 | Power | SW_Tactile_SPST_NO_Straight_CK_PTS636Sx25SMTRLFS | SW4 |
| 1 | WS2812B | LED_WS2812B_PLCC4_5.0x5.0mm_P3.2mm | D1 |
| 2 | GREEN | LED_0805_2012Metric | D2, D3 |
| 1 | BLUE | LED_0805_2012Metric | D4 |
| 1 | 0.25 25% | LED_0603_1608Metric | D5 |
| 1 | 0.5 50% | LED_0603_1608Metric | D6 |
| 1 | 0.75 75% | LED_0603_1608Metric | D7 |
| 1 | 100% | LED_0603_1608Metric | D8 |
| 1 | 4.7UH 4.7uH | L_0805_2012Metric | L1 |
| 3 | 3.3UH 3.3uH | L_0603_1608Metric | L2, L3, L5 |
| 1 | 24NH 24nH | L_0402_1005Metric | L4 |
| 1 | TBD | L_0402_1005Metric | L6 |
| 7 | 22UF 22uF | C_0805_2012Metric | C1, C4, C6, C7, C11, C14, C15 |
| 5 | 1UF 1uF | C_0603_1608Metric | C2, C36, C42, C48, C49 |
| 3 | 2.2UF 2.2uF | C_0805_2012Metric | C3, C32, C34 |
| 7 | 100NF 100nF | C_0402_1005Metric | C5, C10, C13, C51, C57, C58, C59 |
| 4 | 10UF 10uF | C_0805_2012Metric | C8, C26, C43, C50 |
| 1 | 22NF 22nF | C_0603_1608Metric | C9 |
| 1 | 12PF 12pF | C_0603_1608Metric | C12 |
| 2 | 5.6PF 5.6pF | C_0603_1608Metric | C16, C22 |
| 2 | 2pF~6pF | STC3MA06-T1 | C17, C18 |
| 12 | 100NF 100nF | C_0603_1608Metric | C19, C25, C28, C29, C31, C35, C37, C45 +4 |
| 2 | 16PF 16pF | C_0603_1608Metric | C20, C23 |
| 2 | 90PF 90pF | C_0603_1608Metric | C21, C24 |
| 4 | 10PF 10pF | C_0603_1608Metric | C27, C30, C44, C46 |
| 1 | 4.7UF 4.7uF | C_0805_2012Metric | C33 |
| 2 | 1.2PF 1.2pF | C_0603_1608Metric | C38, C39 |
| 2 | 22PF 22pF | C_0603_1608Metric | C40, C41 |
| 2 | TBD | C_0402_1005Metric | C52, C53 |
| 1 | RC0603FR-0751KL 51k | R_0603_1608Metric | R1 |
| 7 | 5K1 5k1 | R_0603_1608Metric | R2, R5, R17, R33, R34, R42, R43 |
| 1 | 100K 100k | R_0603_1608Metric | R3 |
| 1 | 42.2K 42.2k | R_0603_1608Metric | R4 |
| 1 | RC0603FR-07200KL 200k | R_0603_1608Metric | R6 |
| 2 | 10R | R_0603_1608Metric | R7, R8 |
| 2 | 820K 820k | R_0603_1608Metric | R9, R11 |
| 2 | 180K 180k | R_0603_1608Metric | R10, R12 |
| 2 | 2k | R_0603_1608Metric | R13, R16 |
| 6 | 10K0.1 10k | R_0603_1608Metric | R14, R15, R19, R21, R26, R27 |
| 8 | 10K 10k | R_0603_1608Metric | R18, R35, R36, R37, R45, R46, R47, R48 |
| 8 | 3k | R_0402_1005Metric | R20, R22, R24, R25, R49, R50, R51, R52 |
| 1 | 4R7 | R_0603_1608Metric | R23 |
| 2 | 47R | R_0603_1608Metric | R28, R29 |
| 3 | 200 | R_0603_1608Metric | R30, R31, R32 |
| 3 | 0 | R_0402_1005Metric | R38, R39, R40 |
| 2 | 200 | R_0402_1005Metric | R41, R44 |
Pslab mini hardware design files
The KiCad project lives in the fossasia/pslab-mini-hardware repository on GitHub; these links point at the commit this page was built from.
Pslab mini hardware: common questions
What microcontroller does the Pslab mini hardware use?
The Pslab mini hardware is built around the ESP32-C3, from the ESP32 family.
How big is the Pslab mini hardware PCB?
The Pslab mini hardware measures 85 × 56 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Pslab mini hardware?
154 components, from 68 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Pslab mini hardware design files?
From the fossasia/pslab-mini-hardware repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Pslab mini hardware design in my own project?
Yes, under the terms of its Apache-2.0 license, which fossasia chose for the repository.
Can I test firmware for the Pslab mini hardware without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
