Franzininho-WIFI-dev edition

Franzininho·Franzininho-WIFI-dev-edition·Franzininho WIFI/Franzininho WIFI.kicad_pcb

Franzininho-WIFI-dev edition PCB layout, top view — open source ESP32 board by Franzininho

About the Franzininho-WIFI-dev edition PCB

Franzininho-WIFI-dev edition is an open source ESP32 PCB design by Franzininho, published on GitHub. It is a board measuring 51.1 × 30 mm, with 29 components from 16 distinct parts.

Its main chip is the ESP32-S2-WROOM, from the ESP32 family. Other key parts include the BL1117-33CX. By type, the board carries 10 capacitors, 6 diodes, 5 resistors, 4 connectors, 2 ICs and 2 switches.

It belongs with the iot & wireless, displays & leds and sensors designs in this gallery.

From the project

Versão da Franzininho para teste e validação do ESP32-S2

The Franzininho WiFi Developer Edition is a development board designed to evaluate ESP32-S2 modules (WROOM and WROVER) and to support the development of the next generation of Franzininho boards.

The Franzininho project was created to help people develop skills in electronics and programming through DIY (Do-It-Yourself) activities, aligned with the maker culture in Brazil.

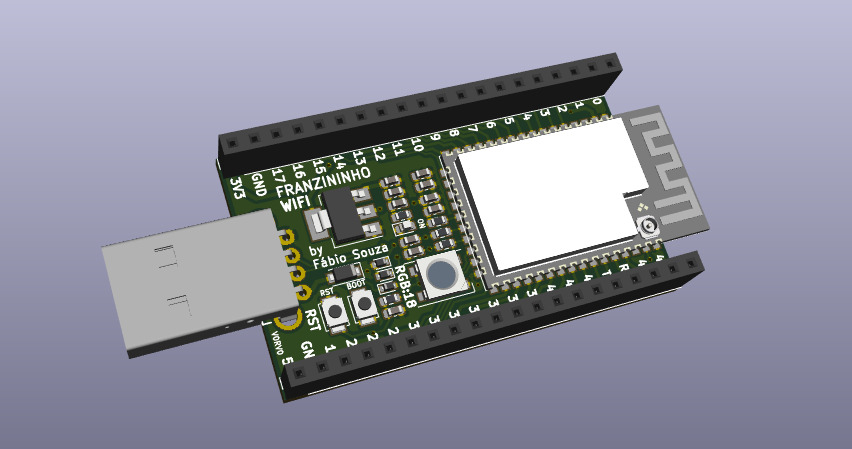

Franzininho-WIFI-dev edition, from the project README
From the project README

Main components on the Franzininho-WIFI-dev edition

ESP32-S2-WROOMBL1117-33CX

Franzininho-WIFI-dev edition bill of materials (BOM)

29 components, 16 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-S2-WROOM
esp32-s2-wroom
U1
1
BL1117-33CX
U2
1
USB-A-H
J1
2
CONN_01X20_MALE
Conn_01x20_Male
J2, J3
1
CONN_ARM_JTAG_SWD_10
Conn_ARM_JTAG_SWD_10
J4
2
SW_Push
SW1, SW2
3
LESD5Z5.0T1G
LESD5D5.0CT1G
D1, D2, D4
1
1N5819W
D3
1
XL-0603QYGC
LED
D5
1
WS2812B-B
WS2812B
D6
4
CL10A106KP8NNNC
10uF
C1, C3, C7, C9
3
CC0603KRX7R9BB104
100nF
C2, C8, C10
2
CL10C200JB8NNNC
20pF
C4, C5
1
CL10A105KB8NNNC
1uF
C6
3
0603WAF1002T5E
10k
R1, R2, R5
2
0603WAF0000T5E
0
R3, R4

Franzininho-WIFI-dev edition design files

The KiCad project lives in the Franzininho/Franzininho-WIFI-dev-edition repository on GitHub; these links point at the commit this page was built from.

Franzininho-WIFI-dev edition: common questions

What microcontroller does the Franzininho-WIFI-dev edition use?

The Franzininho-WIFI-dev edition is built around the ESP32-S2-WROOM, from the ESP32 family.

How big is the Franzininho-WIFI-dev edition PCB?

The Franzininho-WIFI-dev edition measures 51.1 × 30 mm and is 1.6 mm thick.

How many components are on the Franzininho-WIFI-dev edition?

29 components, from 16 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Franzininho-WIFI-dev edition design files?

From the Franzininho/Franzininho-WIFI-dev-edition repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Franzininho-WIFI-dev edition design in my own project?

The repository has no license, so all rights stay with Franzininho. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Franzininho-WIFI-dev edition without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
