KiCad10 RP2350B DevelopmentBoard PCB layout, top view — open source RP2040/RP2350 board by FrWA14

About the KiCad10 RP2350B DevelopmentBoard PCB

KiCad10 RP2350B DevelopmentBoard is an open source RP2040/RP2350 PCB design by FrWA14, published on GitHub. It is a 2-layer board measuring 76 × 76 mm, with 46 components from 22 distinct parts.

Its main chip is the RP2350B-QFN80, from the RP2040/RP2350 family. Other key parts include the AMS1117-3.3 and W25Q128JVS. By type, the board carries 20 capacitors, 12 resistors, 5 connectors, 3 ICs, 2 switches and 2 diodes.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

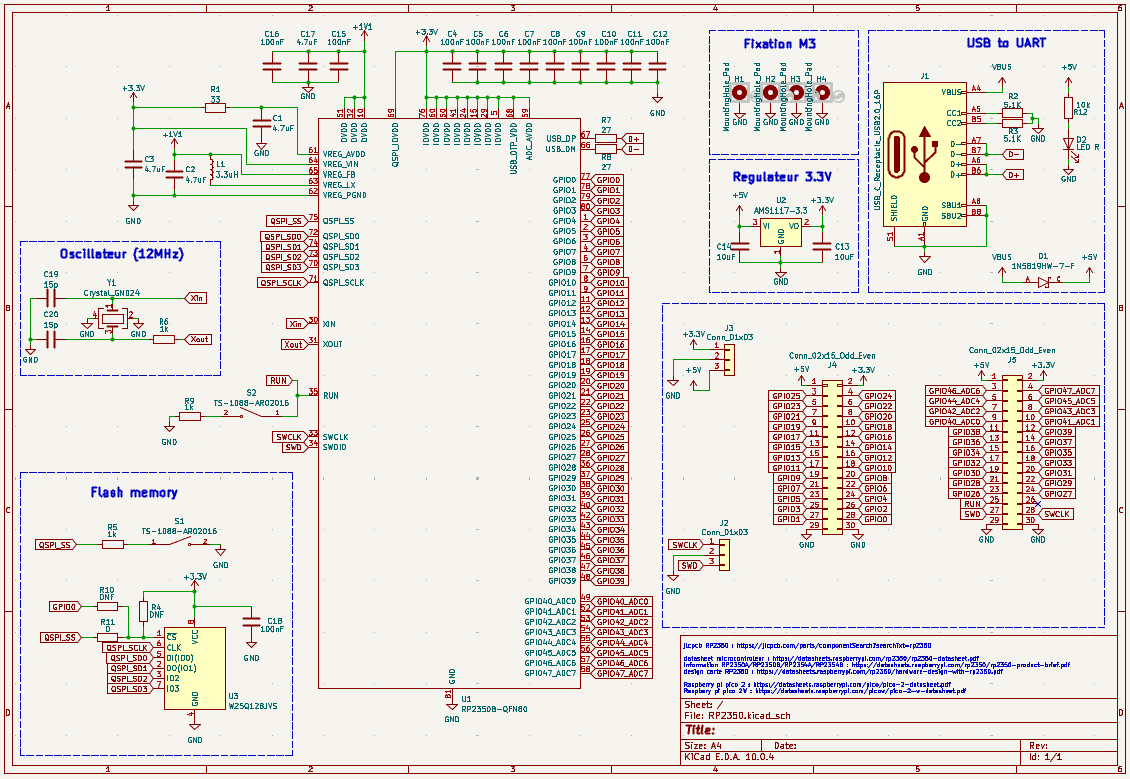

Contient tous les fichiers KiCad 10 nécessaires pour fabriquer une carte de développement RP2350B (bibliothèques, empreintes et modèles 3D inclus, sérigraphie couleur JLCPCB).

Carte basée sur le microcontrôleur RP2350B (QFN-80) de Raspberry Pi, conçue sous KiCad 10.

- RP2350.stl : cliquer dessus pour faire tourner la carte en 3D directement sur GitHub. - RP2350.step : modèle complet (carte et composants) pour FreeCAD, Fusion 360, SolidWorks, etc.

Ouvrir RP2350.kicadpro` avec KiCad 10. Le projet est autonome : aucune bibliothèque à installer.

KiCad10 RP2350B DevelopmentBoard, from the project README
From the project README

Main components on the KiCad10 RP2350B DevelopmentBoard

RP2350B-QFN80AMS1117-3.3W25Q128JVS

KiCad10 RP2350B DevelopmentBoard bill of materials (BOM)

46 components, 22 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
RP2350B-QFN80
U1
1
AMS1117-3.3
U2
1
W25Q128JVS
U3
1
CRYSTAL_GND24
Crystal_GND24
Y1
1
USB_C_RECEPTACLE_USB2.0_16P
USB_C_Receptacle_USB2.0_16P
J1
2
CONN_01X03
Conn_01x03
J2, J3
2
CONN_02X15_ODD_EVEN
Conn_02x15_Odd_Even
J4, J5
2
TS-1088-AR02016
S1, S2
1
1N5819HW-7-F
D1
1
C965799
LED R
D2
1
3.3UH
3.3uH
L1
4
4.7UF
4.7uF
C1, C2, C3, C17
12
100NF
100nF
C4, C5, C6, C7, C8, C9, C10, C11 +4
2
10UF
10uF
C13, C14
2
15P
15p
C19, C20
1
33
R1
2
5.1K
R2, R3
2
DNF
R4, R10
3
1k
R5, R6, R9
2
27
R7, R8
Show 2 more
QtyPartRefs
1
0
R11
1
10K
10k
R12

KiCad10 RP2350B DevelopmentBoard design files

The KiCad project lives in the FrWA14/KiCad10_RP2350B_DevelopmentBoard repository on GitHub; these links point at the commit this page was built from.

KiCad10 RP2350B DevelopmentBoard: common questions

What microcontroller does the KiCad10 RP2350B DevelopmentBoard use?

The KiCad10 RP2350B DevelopmentBoard is built around the RP2350B-QFN80, from the RP2040/RP2350 family.

How big is the KiCad10 RP2350B DevelopmentBoard PCB?

The KiCad10 RP2350B DevelopmentBoard measures 76 × 76 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the KiCad10 RP2350B DevelopmentBoard?

46 components, from 22 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the KiCad10 RP2350B DevelopmentBoard design files?

From the FrWA14/KiCad10_RP2350B_DevelopmentBoard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the KiCad10 RP2350B DevelopmentBoard design in my own project?

The repository has no license, so all rights stay with FrWA14. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the KiCad10 RP2350B DevelopmentBoard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
