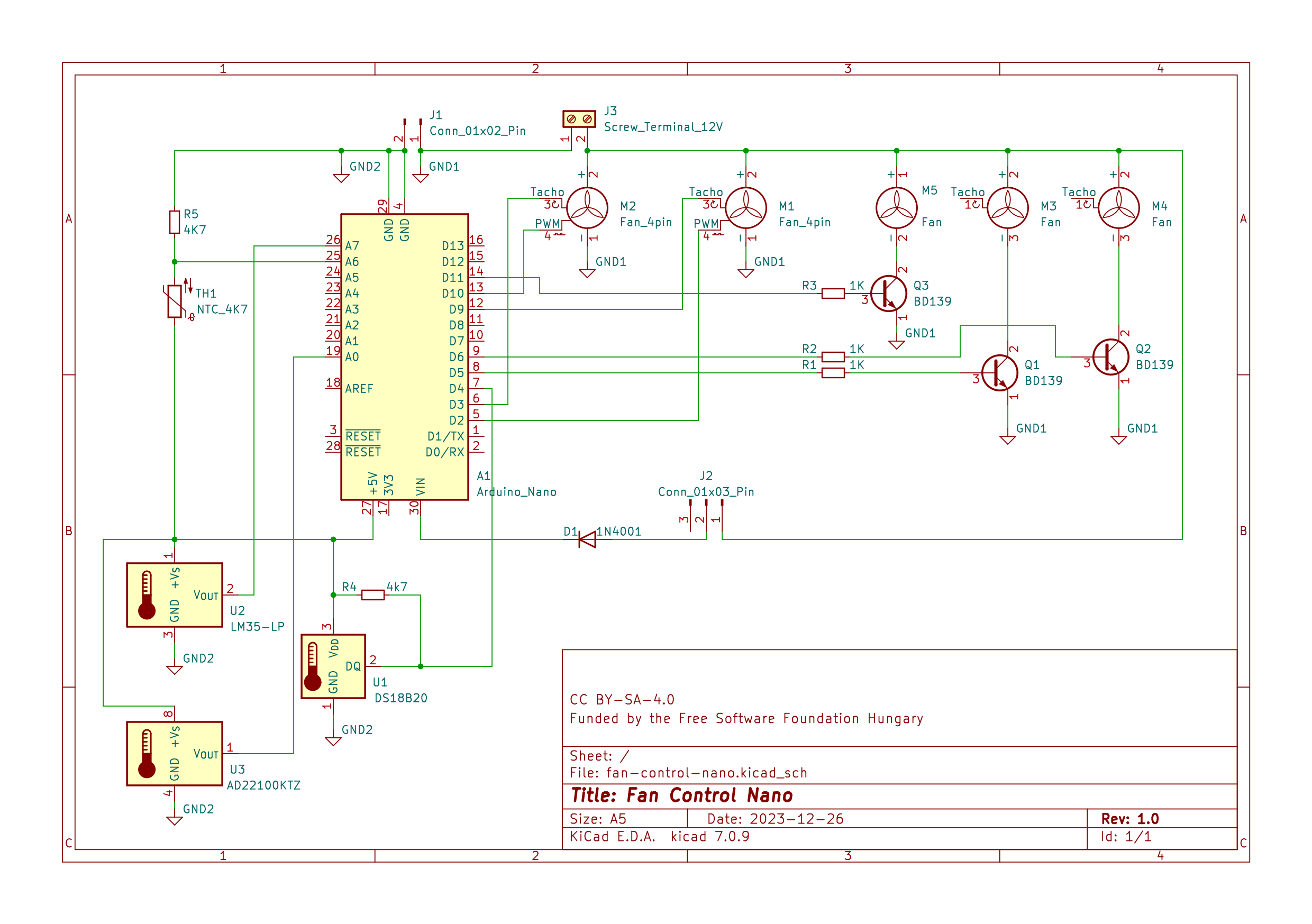

gajdipajti·fan-control·circuits/fan-control-nano/fan-control-nano.kicad_sch

Fan control

About the Fan control PCB

Fan control is an open source AVR/Arduino PCB design by gajdipajti, published on GitHub under the GPL-3.0 license. It is a board, with 22 components from 14 distinct parts.

Its main chip is the Arduino_Nano, from the AVR/Arduino family. Other key parts include the DS18B20, LM35-LP and AD22100KTZ. By type, the board carries 6 modules, 5 resistors, 3 ICs, 3 transistors, 3 connectors and 1 diode.

It belongs with the displays & leds designs in this gallery.

From the project

A project for controlling 2, 3, and 4 wire DC fans using Arduino or a Raspberry Pi. It also integrates into munin monitoring. Funded by the Free Software Foundation Hungary. The code is under GPLv3. Schematics, drawings, and the documentation is under CC BY-SA-4.0. If you have an idea about how to improve the project, jus file an issue.

A project for controlling 2, 3, and 4 wire DC fans using an Arduino Nano or a Raspberry Pi. It also integrates into munin monitoring. Funded by the Free Software Foundation Hungary. The code is under GPLv3. Schematics, drawings, circuit diagrams, and the documentation is under CC BY-SA-4.0. If you have an idea about how to improve the project, just file an issue and contribute.

Main components on the Fan control

DS18B20LM35-LPAD22100KTZArduino_Nano

Fan control bill of materials (BOM)

22 components, 14 distinct parts.

QtyPartRefs
1
DS18B20
U1
1
LM35-LP
U2
1
AD22100KTZ
U3
1
Arduino_Nano
A1
2
Fan_4pin
M1, M2
3
Fan
M3, M4, M5
3
BD139
Q1, Q2, Q3
1
Conn_01x02_Pin
J1
1
Conn_01x03_Pin
J2
1
Screw_Terminal_12V
J3
1
NTC_4K7
TH1
1
1N4001
D1
3
1K
R1, R2, R3
2
4K7
R4, R5

Fan control design files

The KiCad project lives in the gajdipajti/fan-control repository on GitHub; these links point at the commit this page was built from.

Fan control: common questions

What microcontroller does the Fan control use?

The Fan control is built around the Arduino_Nano, from the AVR/Arduino family.

How many components are on the Fan control?

22 components, from 14 distinct parts. The full bill of materials is listed on this page.

Where can I download the Fan control design files?

From the gajdipajti/fan-control repository on GitHub, which has the schematic; the links under Design files point to each one.

Can I use the Fan control design in my own project?

Yes, under the terms of its GPL-3.0 license, which gajdipajti chose for the repository.

Can I test firmware for the Fan control without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
