PCT2075 PROBE

galopago·i2c-temp-probe-pcb·pct2075-probe-pcb/PCT2075_PROBE_PCB.kicad_pcb

PCT2075 PROBE PCB layout, top view — open source board by galopago

About the PCT2075 PROBE PCB

PCT2075 PROBE is an open source PCB design by galopago, published on GitHub under the MIT license. It is a 2-layer board measuring 4 × 35 mm, with 5 components from 3 distinct parts.

Other key parts include the PCT2075GV. By type, the board carries 3 resistors, 1 IC and 1 capacitor.

It belongs with the sensors designs in this gallery.

From the project

Small circuit board, designed to be installed inside a metal tube or thermowell.

Small circuit board (4.0x35mm), based on PCT2074 chip, designed to be installed inside a metal tube or thermowell.

The root folder contains template KiCad files: project, schematic and PCB /modules folder contains additional footprints needed to edit printed circuit board /library folder contains additional footprints needed to edit schematic /gerber folder contains ready to manufacture files. * /assets folder contains support files for reade.md

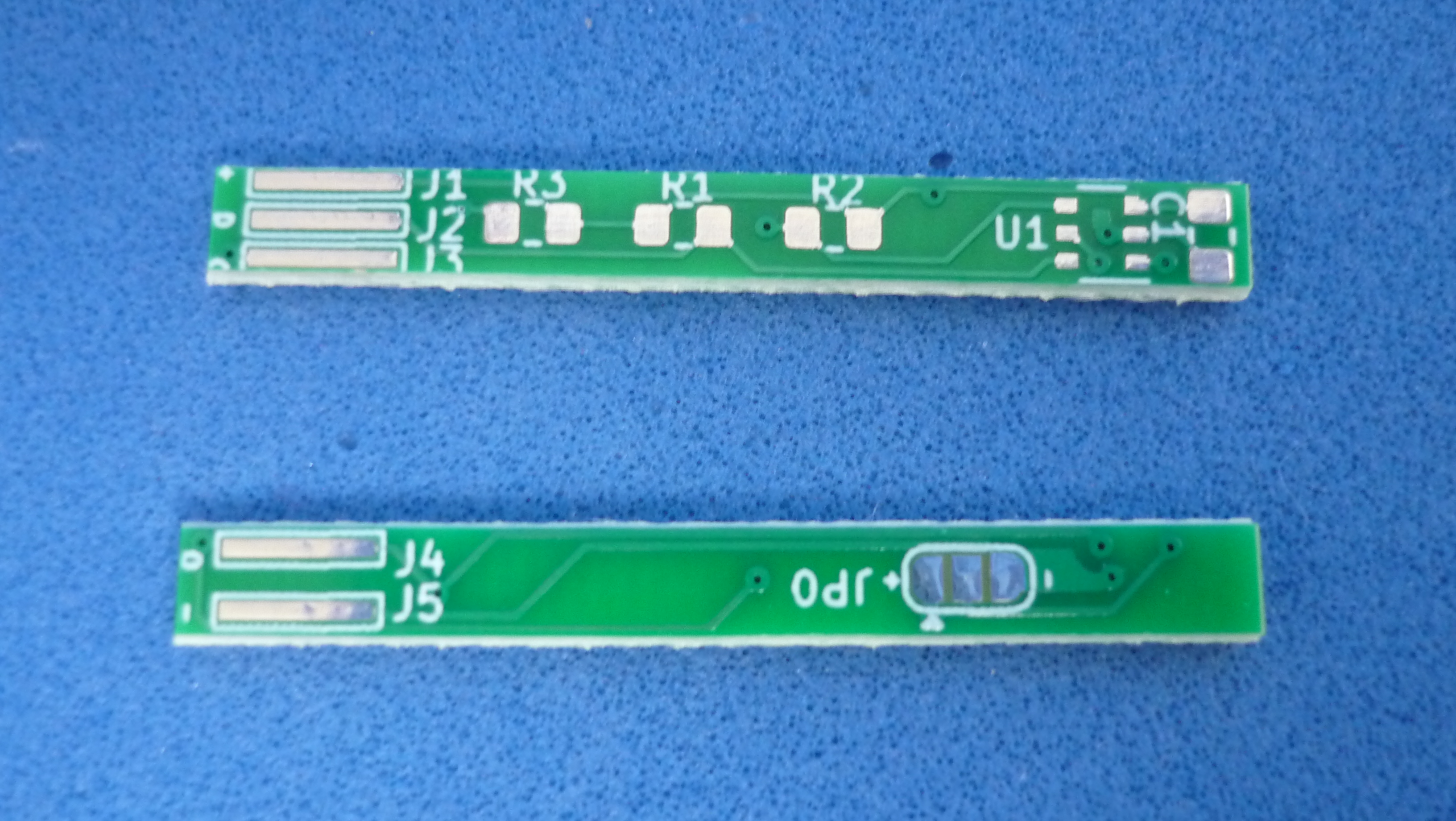

PCT2075 PROBE, from the project README
From the project README

Main components on the PCT2075 PROBE

PCT2075GV

PCT2075 PROBE bill of materials (BOM)

5 components, 3 distinct parts.

QtyPartRefs
1
PCT2075GV
U1
1
C
C1
3
R
R1, R2, R3

PCT2075 PROBE design files

The KiCad project lives in the galopago/i2c-temp-probe-pcb repository on GitHub; these links point at the commit this page was built from.

PCT2075 PROBE: common questions

How big is the PCT2075 PROBE PCB?

The PCT2075 PROBE measures 4 × 35 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PCT2075 PROBE?

5 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the PCT2075 PROBE design files?

From the galopago/i2c-temp-probe-pcb repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the PCT2075 PROBE design in my own project?

Yes, under the terms of its MIT license, which galopago chose for the repository.
