LM75A PROBE

galopago·i2c-temp-probe-pcb·lm75A-probe-pcb/LM75A_PROBE_PCB.kicad_pcb

LM75A PROBE PCB layout, top view — open source board by galopago

About the LM75A PROBE PCB

LM75A PROBE is an open source PCB design by galopago, published on GitHub under the MIT license. It is a 2-layer board measuring 5.5 × 35 mm, with 5 components from 3 distinct parts.

Other key parts include the LM75B. By type, the board carries 3 resistors, 1 IC and 1 capacitor.

It belongs with the sensors designs in this gallery.

From the project

Small circuit board, designed to be installed inside a metal tube or thermowell.

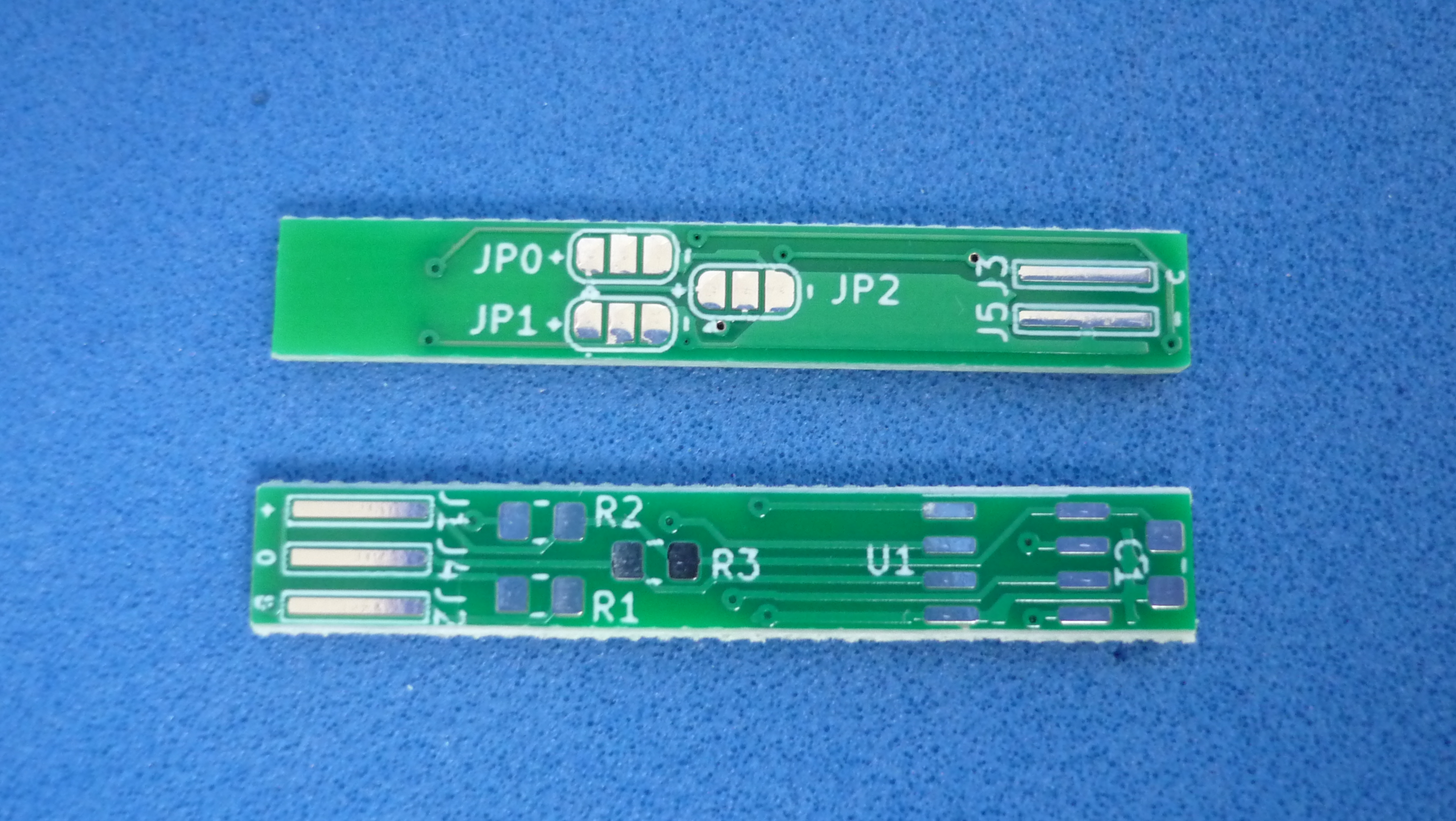

Small circuit board (5.5x35mm), based on LM75A chip, designed to be installed inside a metal tube or thermowell.

The root folder contains template KiCad files: project, schematic and PCB /modules folder contains additional footprints needed to edit printed circuit board /gerber folder contains ready to manufacture files. /assets folder contains support files for reade.md

LM75A PROBE, from the project README
From the project README

Main components on the LM75A PROBE

LM75B

LM75A PROBE bill of materials (BOM)

5 components, 3 distinct parts.

QtyPartRefs
1
LM75B
U1
1
C
C1
3
R
R1, R2, R3
