ESP32CAM PROTO 83x58mm PCB layout, top view — open source board by galopago

About the ESP32CAM PROTO 83x58mm PCB

ESP32CAM PROTO 83x58mm is an open source PCB design by galopago, published on GitHub under the MIT license. It is a 2-layer board measuring 75 × 49 mm, with 6 components from 2 distinct parts.

It belongs with the power & battery designs in this gallery.

From the project

Misistemote is an Open Source, modular ecosystem that uses pre-made PCB to mix and match your choice of processor board. Is oriented to make small, mobile, battery powered electronic projects work in real conditions in a very short time.

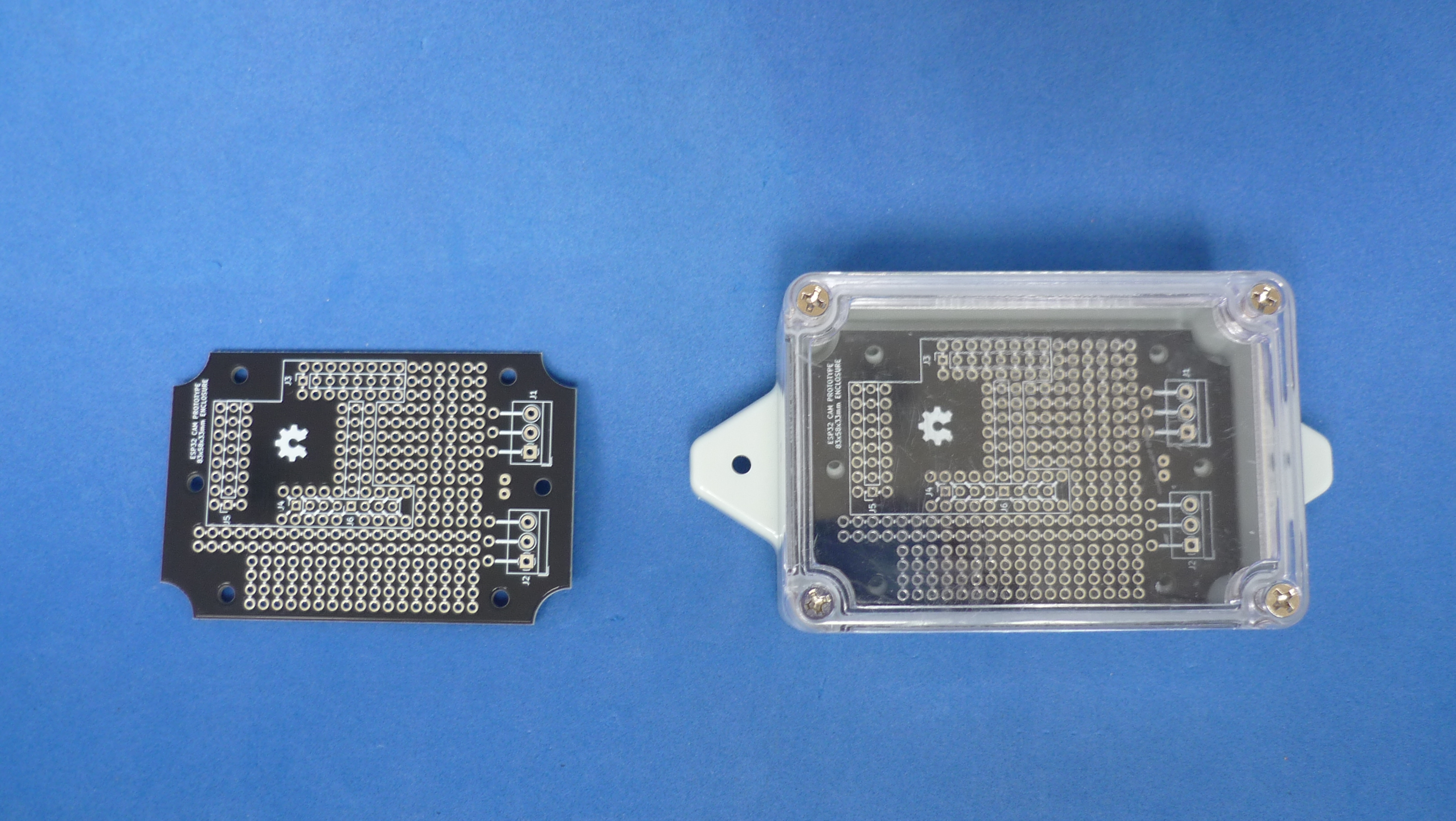

The board is designed to fit inside a generic 83x58mm waterproof enclosure.

Read this in other languages: Español , Portugues

The root folder contains template KiCad files: project, schematic and PCB /modules folder contains additional footprints needed to edit printed circuit board /gerber folder contains ready to manufacture files. /assets folder contains support files for reade.md

ESP32CAM PROTO 83x58mm, from the project README
From the project README

ESP32CAM PROTO 83x58mm bill of materials (BOM)

6 components, 2 distinct parts.

QtyPartRefs
2
Screw_Terminal_01x03
J1, J2
4
Conn_01x08_Female
J3, J4, J5, J6

ESP32CAM PROTO 83x58mm design files

The KiCad project lives in the galopago/misistemote repository on GitHub; these links point at the commit this page was built from.

ESP32CAM PROTO 83x58mm: common questions

How big is the ESP32CAM PROTO 83x58mm PCB?

The ESP32CAM PROTO 83x58mm measures 75 × 49 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ESP32CAM PROTO 83x58mm?

6 components, from 2 distinct parts. The full bill of materials is listed on this page.

Where can I download the ESP32CAM PROTO 83x58mm design files?

From the galopago/misistemote repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the ESP32CAM PROTO 83x58mm design in my own project?

Yes, under the terms of its MIT license, which galopago chose for the repository.
