ESP32CAM PROTO SPORTCAM
About the ESP32CAM PROTO SPORTCAM PCB
ESP32CAM PROTO SPORTCAM is an open source PCB design by galopago, published on GitHub under the MIT license. It is a 2-layer board measuring 59 × 41 mm, with 4 components from 1 distinct parts.
It belongs with the power & battery designs in this gallery.
From the project
Misistemote is an Open Source, modular ecosystem that uses pre-made PCB to mix and match your choice of processor board. Is oriented to make small, mobile, battery powered electronic projects work in real conditions in a very short time.

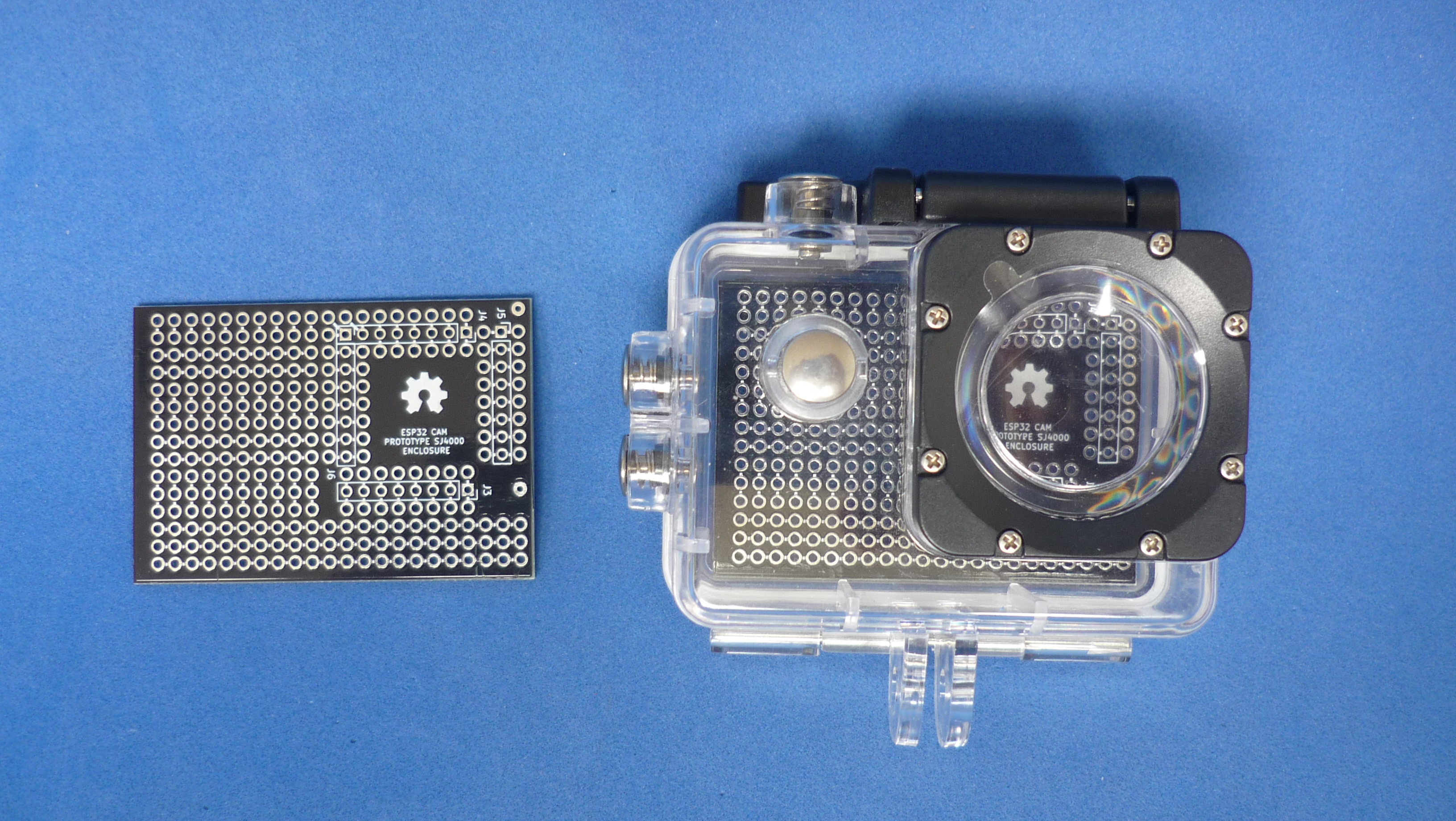

The board is designed to fit inside a generic waterproof enclosure compatible with cameras like Go Pro hero 3, SJCAM SJ400, etc.
The root folder contains template KiCad files: project, schematic and PCB /modules folder contains additional footprints needed to edit printed circuit board /gerber folder contains ready to manufacture files. /assets folder contains support files for reade.md
ESP32CAM PROTO SPORTCAM bill of materials (BOM)
4 components, 1 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | Conn_01x08_Female | PinSocket_1x08_P2.54mm_Vertical | J3, J4, J5, J6 |
ESP32CAM PROTO SPORTCAM design files
The KiCad project lives in the galopago/misistemote repository on GitHub; these links point at the commit this page was built from.
ESP32CAM PROTO SPORTCAM: common questions
How big is the ESP32CAM PROTO SPORTCAM PCB?
The ESP32CAM PROTO SPORTCAM measures 59 × 41 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the ESP32CAM PROTO SPORTCAM?
4 components, from 1 distinct parts. The full bill of materials is listed on this page.
Where can I download the ESP32CAM PROTO SPORTCAM design files?
From the galopago/misistemote repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the ESP32CAM PROTO SPORTCAM design in my own project?
Yes, under the terms of its MIT license, which galopago chose for the repository.
