MCU PROTO 100x68
About the MCU PROTO 100x68 PCB
MCU PROTO 100x68 is an open source PCB design by galopago, published on GitHub under the MIT license. It is a 2-layer board measuring 90 × 58 mm, with 4 components from 2 distinct parts.
It belongs with the power & battery designs in this gallery.
From the project
Misistemote is an Open Source, modular ecosystem that uses pre-made PCB to mix and match your choice of processor board. Is oriented to make small, mobile, battery powered electronic projects work in real conditions in a very short time.

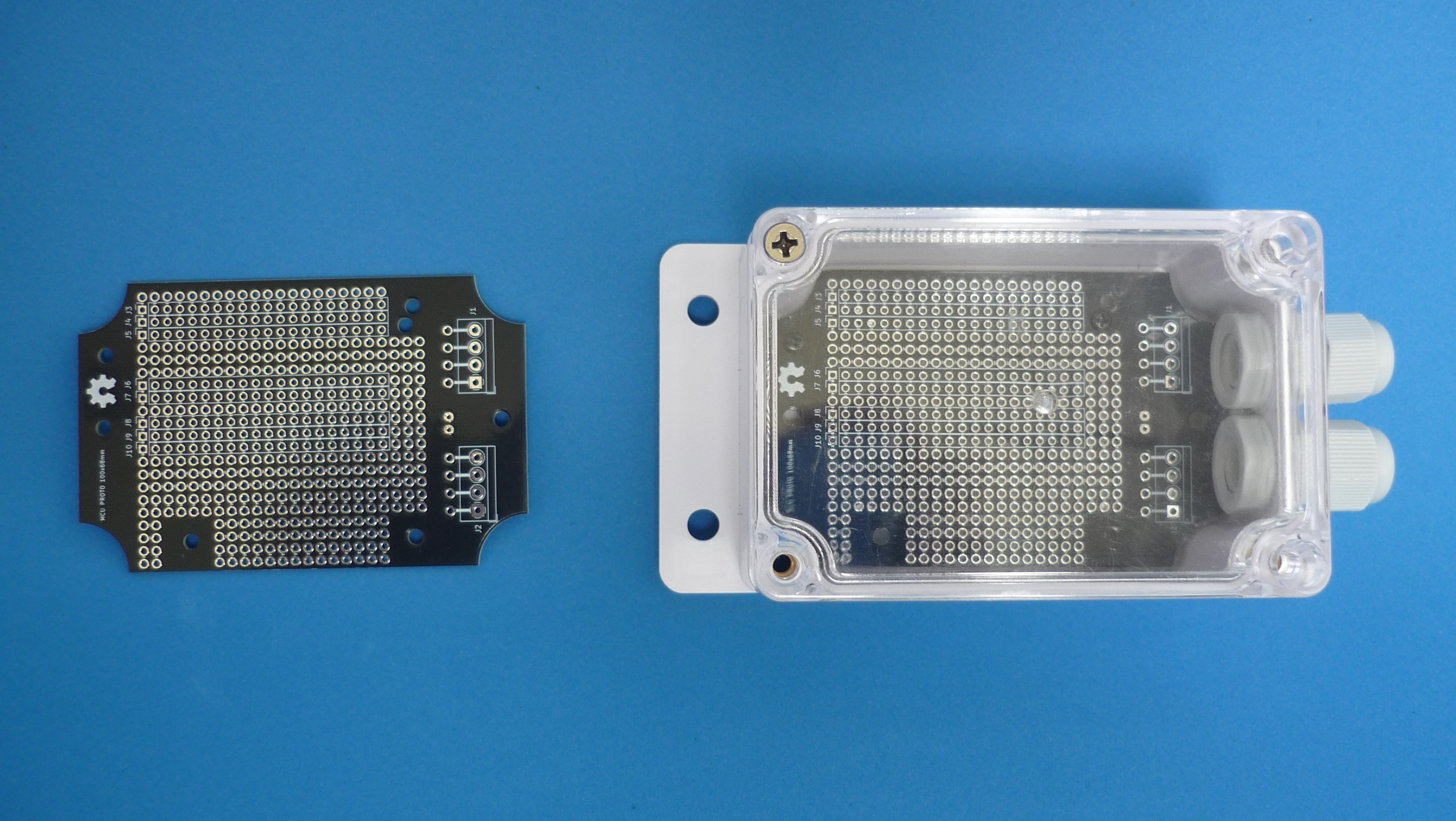

This board can host MCU modules up to 20 pin per row in a double row configuration. The minimum separation between rows is 2.54 mm and the maximum separation between rows is 27.94 mm, so most common types of MCU modules are supported. The board is designed to fit inside a generic 100x68mm (advertized as Sonoff switch) waterproof enclosure.
The root folder contains template KiCad files: project, schematic and PCB /library folder contains additional symbols needed to edit printed schematic /modules folder contains additional footprints needed to edit printed circuit board /gerber folder…
MCU PROTO 100x68 bill of materials (BOM)
4 components, 2 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | Screw_Terminal_01x04 | TerminalBlock_4Ucon_1x04_P3.50mm_Horizontal | J1, J2 |
| 2 | Conn_01x01_Pin | RoundPad_1.7mm_Hole_1.0mm | J3, J4 |
MCU PROTO 100x68 design files
The KiCad project lives in the galopago/misistemote repository on GitHub; these links point at the commit this page was built from.
MCU PROTO 100x68: common questions
How big is the MCU PROTO 100x68 PCB?
The MCU PROTO 100x68 measures 90 × 58 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the MCU PROTO 100x68?
4 components, from 2 distinct parts. The full bill of materials is listed on this page.
Where can I download the MCU PROTO 100x68 design files?
From the galopago/misistemote repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the MCU PROTO 100x68 design in my own project?
Yes, under the terms of its MIT license, which galopago chose for the repository.
