GBAHD Shield

gbaHD·GBAHD-Shield·shield/GBAHD_Shield.kicad_pcb

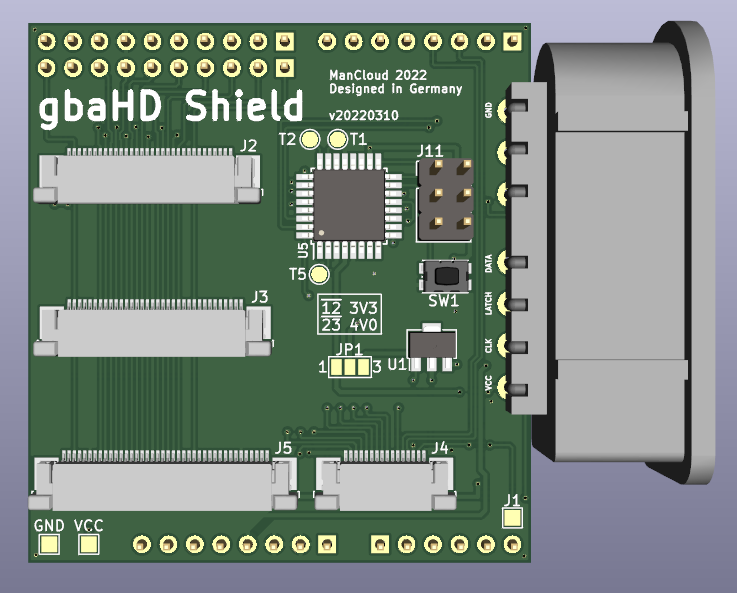

GBAHD Shield layout, top view — open source AVR/Arduino board by gbaHD

About the GBAHD Shield

GBAHD Shield is an open source AVR/Arduino PCB design by gbaHD, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 48.3 × 51.8 mm, with 34 components from 25 distinct parts.

Its main chip is the ATmega328P-AU, from the AVR/Arduino family. Other key parts include the AZ1117R-ADJ, 74HC595 and SNES_7PIN. By type, the board carries 10 connectors, 8 resistors, 5 ICs, 4 capacitors, 3 transistors and 2 diodes.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

It has the following features. - Connects via female headers to the Edge board (shield) - Has a FFC 40 pin connector for OGBA LCD connector. Need Type-B Cable (Reverse) vvv=======^^^ - Has a FFC 32 pin connector for OGBA LCD connector. Need Type-B Cable (Reverse) vvv=======^^^ -

It has the following features. - Connects via female headers to the Edge board (shield) - Has a FFC 40 pin connector for OGBA LCD connector. Need Type-B Cable (Reverse) vvv=======^^^ - Has a FFC 32 pin connector for OGBA LCD connector. Need Type-B Cable (Reverse) vvv=======^^^ - Has a FFC 34 pin connector for GBA-SP LCD connector. Need Type-A Cable (Direct) vvv=======vvv - Has a FFC 16 pin connector for controls with a wire up board. Need Type-B Cable (Reverse) vvv=======^^^ - Has a ATMEGA328p / ATMEGA168p / ATMEGA88p for using a SNES connector to control the GBA. - Has a high-side switch for…

GBAHD Shield, from the project README
From the project README

Main components on the GBAHD Shield

AZ1117R-ADJ74HC595SNES_7PINATmega328P-AU

GBAHD Shield bill of materials (BOM)

34 components, 25 distinct parts.

QtyPartRefs
1
AZ1117R-ADJ
U1
2
74HC595
U2, U3
1
SNES_7PIN
U4
1
ATmega328P-AU
U5
1
Q_PMOS_GSD
Q1
2
Q_NMOS_GSD
Q2, Q3
1
FFC_OGBA_32
J2
1
FFC_GBA-SP
J3
1
Conn_01x16
J4
1
FFC_OGBA_40
J5
1
Conn_01x06
J6
2
Conn_01x08
J7, J9
2
Conn_01x10
J8, J10
1
Conn_02x03_Odd_Even
J11
1
SolderJumper_3_Open
JP1
1
SW_Push
SW1
1
RED
D1
1
GREEN
D2
2
100nF
C1, C3
1
22u
C2
Show 5 more
QtyPartRefs
1
47uF
C4
1
2.2k
R1
3
1k
R2, R6, R7
3
10K
R3, R4, R8
1
500
R5

GBAHD Shield design files

The KiCad project lives in the gbaHD/GBAHD-Shield repository on GitHub; these links point at the commit this page was built from.

GBAHD Shield: common questions

What microcontroller does the GBAHD Shield use?

The GBAHD Shield is built around the ATmega328P-AU, from the AVR/Arduino family.

How big is the GBAHD Shield?

The GBAHD Shield measures 48.3 × 51.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the GBAHD Shield?

34 components, from 25 distinct parts. The full bill of materials is listed on this page.

Where can I download the GBAHD Shield design files?

From the gbaHD/GBAHD-Shield repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the GBAHD Shield design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.

Can I test firmware for the GBAHD Shield without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
