Retro stack debug arduino mega shield

gcoonrod·retro-stack·boards/retro-stack-debug-arduino-mega-shield/retro-stack-debug-arduino-mega-shield.kicad_pcb

Retro stack debug arduino mega shield layout, top view — open source board by gcoonrod

About the Retro stack debug arduino mega shield

Retro stack debug arduino mega shield is an open source PCB design by gcoonrod, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 90.2 × 53.3 mm, with 9 components from 8 distinct parts.

By type, the board carries 8 connectors and 1 jumper.

It belongs with the retro computing and dev boards & breakouts designs in this gallery.

From the project

A retro computer project based on stackable PCB boards.

This Arduino Mega shield is designed to easily connect to the RetroStack Debug board via a 40 pin IDC connector.

- 6502 Bus is backwards. Pin 1 should be RESB but is VPB instead. - PHI2 should be connected to one of the digital pins that support interrupts (2, 3, etc) - Consider adding jumpers to send a few signals to interrupt pins. - Power seems to be leaking between the arduino and the RetroStack. Needs diodes?

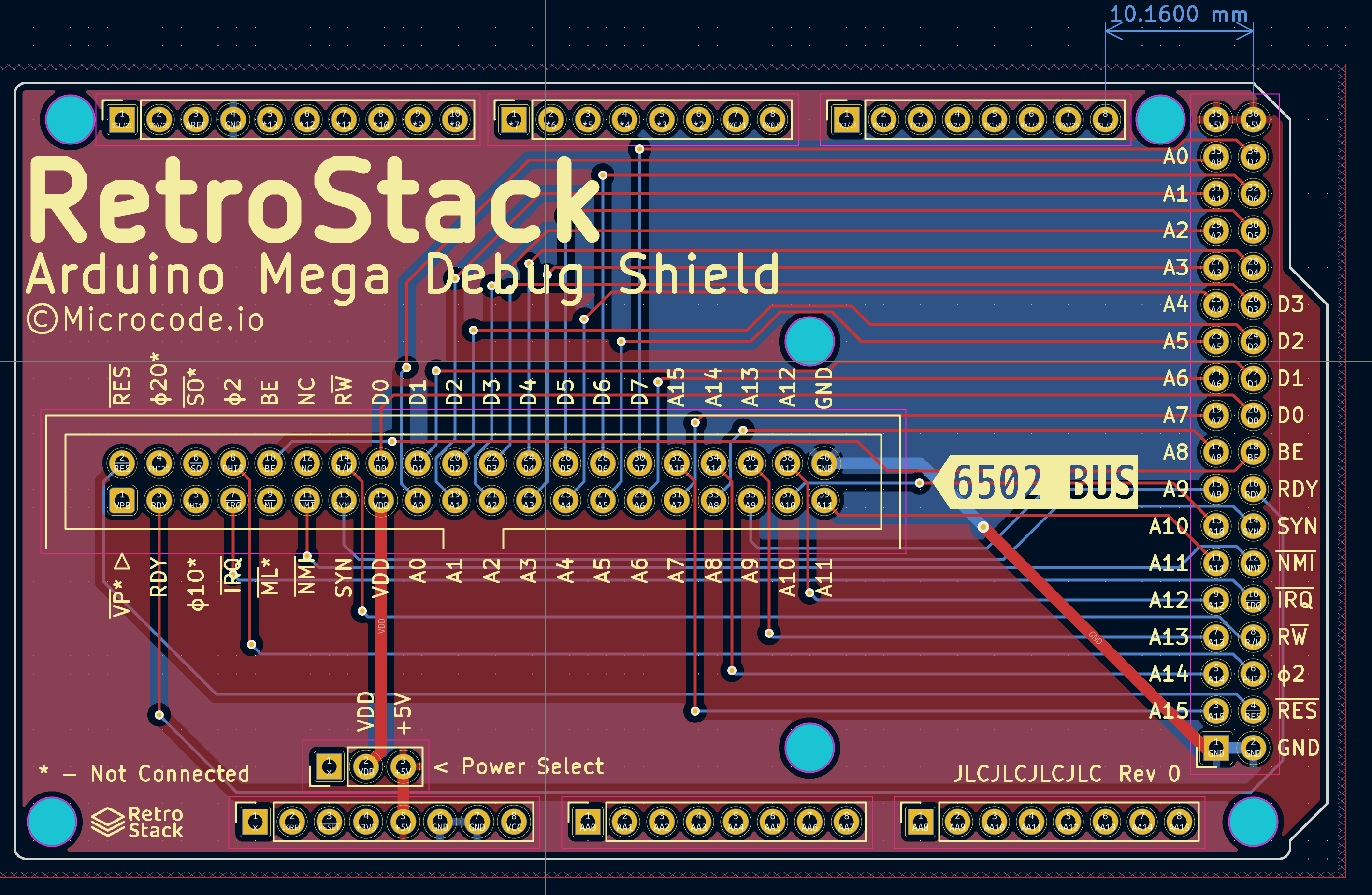

Retro stack debug arduino mega shield, from the project README
From the project README

Retro stack debug arduino mega shield bill of materials (BOM)

9 components, 8 distinct parts.

QtyPartRefs
1
Power
J1
1
PWM
J2
2
Analog
J3, J5
1
PWM
J4
1
Communication
J6
1
Digital
J7
1
BUS_6502
J8
1
JMP_PWR
JP1

Retro stack debug arduino mega shield design files

The KiCad project lives in the gcoonrod/retro-stack repository on GitHub; these links point at the commit this page was built from.

Retro stack debug arduino mega shield: common questions

How big is the Retro stack debug arduino mega shield?

The Retro stack debug arduino mega shield measures 90.2 × 53.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Retro stack debug arduino mega shield?

9 components, from 8 distinct parts. The full bill of materials is listed on this page.

Where can I download the Retro stack debug arduino mega shield design files?

From the gcoonrod/retro-stack repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Retro stack debug arduino mega shield design in my own project?

Yes, under the terms of its Apache-2.0 license, which gcoonrod chose for the repository.
