Retro stack cpu
About the Retro stack cpu PCB
Retro stack cpu is an open source PCB design by gcoonrod, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 99.1 × 99.1 mm, with 18 components from 14 distinct parts.
Other key parts include the DS1813 and W65C02SxP. By type, the board carries 6 resistors, 3 switches, 3 capacitors, 2 ICs, 2 connectors and 1 crystal.
It belongs with the retro computing designs in this gallery.
From the project

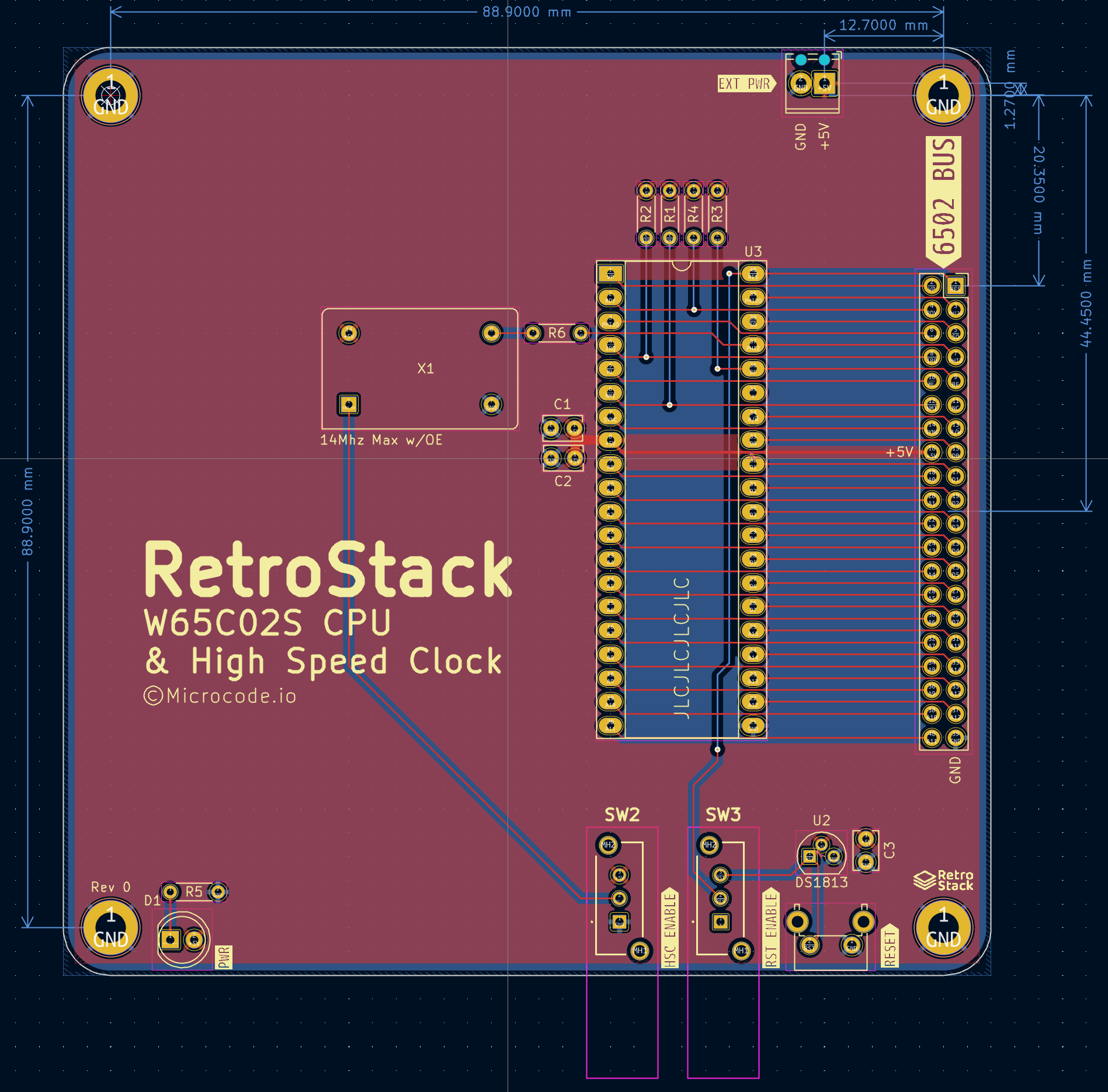

A retro computer project based on stackable PCB boards.
This module contains the W65C02S CPU, a selectable high speed oscillator, and a selectable DS1813 reset signal manager.
Main components on the Retro stack cpu
Retro stack cpu bill of materials (BOM)
18 components, 14 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | DS1813 | TO-92 | U2 |
| 1 | W65C02SxP | DIP-40_W15.24mm_Socket_LongPads | U3 |
| 1 | 1Mhz | Oscillator_DIP-14 | X1 |
| 1 | BUS_6502 | PinSocket_2x20_P2.54mm_Vertical | J1 |
| 1 | TRM_PWR | TerminalBlock_Phoenix_MPT-0,5-2-2.54_1x02_P2.54mm_Horizontal | J2 |
| 1 | SW_RESET | SW_Tactile_SPST_Angled_PTS645Vx58-2LFS | SW1 |
| 1 | SW_CLK_EN | LC1258EENP1RLGR | SW2 |
| 1 | SW_RST_SEL | LC1258EENP1RLGR | SW3 |
| 1 | LED_PWR | LED_D5.0mm | D1 |
| 1 | 1u | C_Rect_L4.0mm_W2.5mm_P2.50mm | C1 |
| 2 | 0u1 | C_Rect_L4.0mm_W2.5mm_P2.50mm | C2, C3 |
| 4 | 3k3 | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | R1, R2, R3, R4 |
| 1 | 1k | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | R5 |
| 1 | 33 | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | R6 |
Retro stack cpu design files
The KiCad project lives in the gcoonrod/retro-stack repository on GitHub; these links point at the commit this page was built from.
Retro stack cpu: common questions
How big is the Retro stack cpu PCB?
The Retro stack cpu measures 99.1 × 99.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Retro stack cpu?
18 components, from 14 distinct parts. The full bill of materials is listed on this page.
Where can I download the Retro stack cpu design files?
From the gcoonrod/retro-stack repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Retro stack cpu design in my own project?
Yes, under the terms of its Apache-2.0 license, which gcoonrod chose for the repository.
