Serialsentinel PCB layout, top view — open source ESP32 board by gcormier

About the Serialsentinel PCB

Serialsentinel is an open source ESP32 PCB design by gcormier, published on GitHub. It is a 4-layer board measuring 82 × 68.9 mm, with 68 components from 24 distinct parts.

Its main chip is the ESP32-C3-WROOM-02U, from the ESP32 family. Other key parts include the CH382L, XC6206P182MR and AMS1117-3.3. By type, the board carries 20 capacitors, 20 resistors, 9 diodes, 6 connectors, 4 ICs and 4 transistors.

It belongs with the iot & wireless and power & battery designs in this gallery.

From the project

- PCIe x1 card - Low-profile / slim size - Should fit in servers, please verify - Runs off 3.3VAUX, which keeps powering the device, even when your PC shuts down - WiFi with external antenna - 2 serial ports exposed - One for esphome serial logging and programming - Another for h

- PCIe x1 card - Low-profile / slim size - Should fit in servers, please verify - Runs off 3.3VAUX, which keeps powering the device, even when your PC shuts down - WiFi with external antenna - 2 serial ports exposed - One for esphome serial logging and programming - Another for heartbeat communications - WCH382L PCIe-Serial bridge (native Linux support, optional Linux driver, requires Windows driver) - 3.3V voltage monitor - Good indicator if the computer is powered on or not - PCIe wake output - Another option to wake up your computer - Two relays with dual sets of pin headers - Intercept…

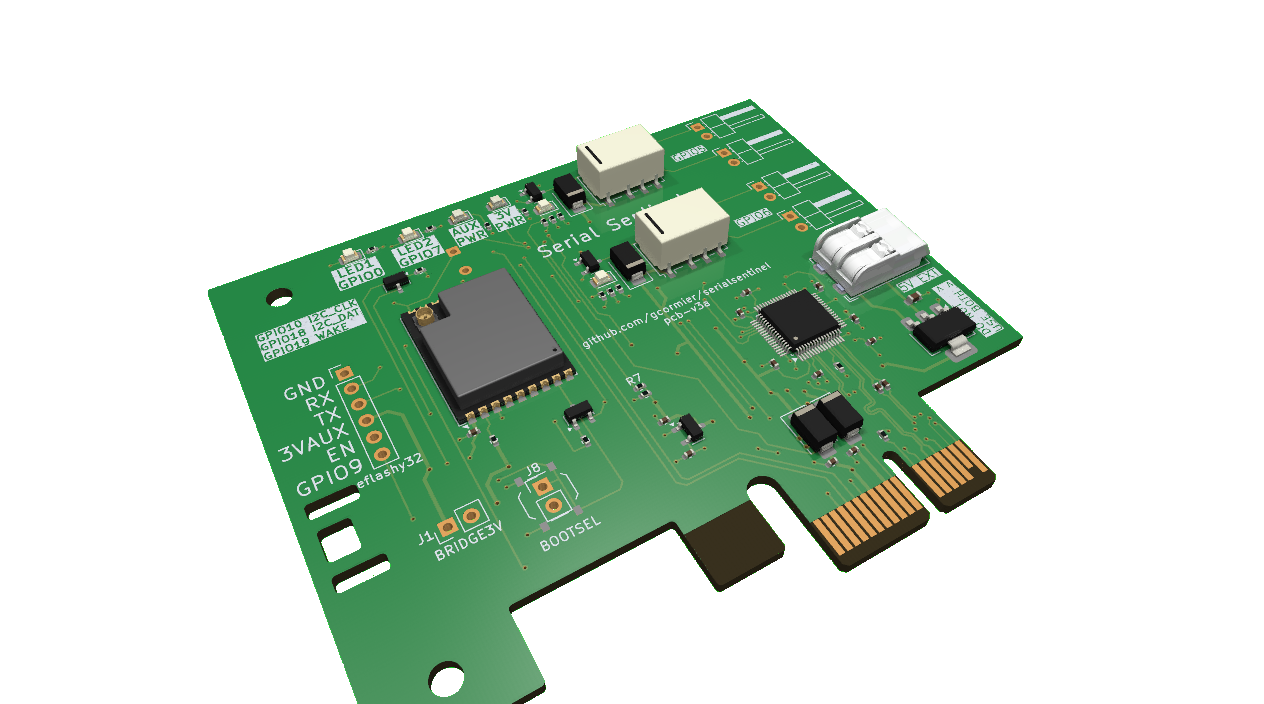

Serialsentinel, from the project README
From the project README

Main components on the Serialsentinel

CH382LXC6206P182MRESP32-C3-WROOM-02UAMS1117-3.3

Serialsentinel bill of materials (BOM)

68 components, 24 distinct parts.

QtyPartRefs
1
CH382L
U1
1
XC6206P182MR
U2
1
ESP32-C3-WROOM-02U
U3
1
AMS1117-3.3
U4
4
MMBT3904
Q2, Q3, Q4, Q5
1
Bus_PCI_Express_x1
J2
1
DTR
J3
1
RTS
J4
1
RELAY1
J5
1
RELAY2
J6
1
5VEXT
J9
1
WAKE
JP1
1
RP3VAUX
JP4
1
RP3V
JP5
2
G6K-2F-Y DC3
K2, K3
4
SS54
D1, D2, D8, D9
4
Red
D3, D4, D6, D7
1
Green
D10
3
1u
C1, C2, C15
13
100n
C3, C4, C5, C6, C7, C8, C9, C13 +5
Show 4 more
QtyPartRefs
1
22u
C10
3
10u
C11, C12, C14
12
1k
R1, R3, R7, R11, R13, R14, R15, R16 +4
8
12K
R2, R4, R5, R6, R8, R10, R12, R206

Serialsentinel design files

The KiCad project lives in the gcormier/serialsentinel repository on GitHub; these links point at the commit this page was built from.

Serialsentinel: common questions

What microcontroller does the Serialsentinel use?

The Serialsentinel is built around the ESP32-C3-WROOM-02U, from the ESP32 family.

How big is the Serialsentinel PCB?

The Serialsentinel measures 82 × 68.9 mm, has 4 copper layers and is 1.6062 mm thick.

How many components are on the Serialsentinel?

68 components, from 24 distinct parts. The full bill of materials is listed on this page.

Where can I download the Serialsentinel design files?

From the gcormier/serialsentinel repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Serialsentinel design in my own project?

The repository has no license, so all rights stay with gcormier. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Serialsentinel without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
