TinyFPGA-UP PCB layout, top view — open source FPGA board by glanc1

About the TinyFPGA-UP PCB

TinyFPGA-UP is an open source FPGA PCB design by glanc1, published on GitHub under the CERN-OHL-1.2 license. It is a 4-layer board measuring 17.8 × 35.6 mm, with 55 components from 28 distinct parts.

Its main chip is the ICE40UP5K-SG48I, from the FPGA family. Other key parts include the MIC5504-3.3YM5, DSC6001CI2A-016.0000, MIC5365-1.2YC5 and AT25SF081-SSHD-B. By type, the board carries 22 capacitors, 17 resistors, 5 ICs, 5 connectors, 4 diodes and 1 switch.

From the project

The TinyFPGA UP board is a tiny FPGA board based on a ICE40UP5K-SG48 FPGA from Lattice.

The TinyFPGA UP board is a tiny FPGA board based on a ICE40UP5K-SG48 FPGA from Lattice.

This board is based on Luke Valenty's TinyFPGA-BX project. The programming pins are compatible with Piotr Esden-Tempski's iCEBreaker-bitsy project.

WARNING: This is work in progress and not yet soldered nor tested!

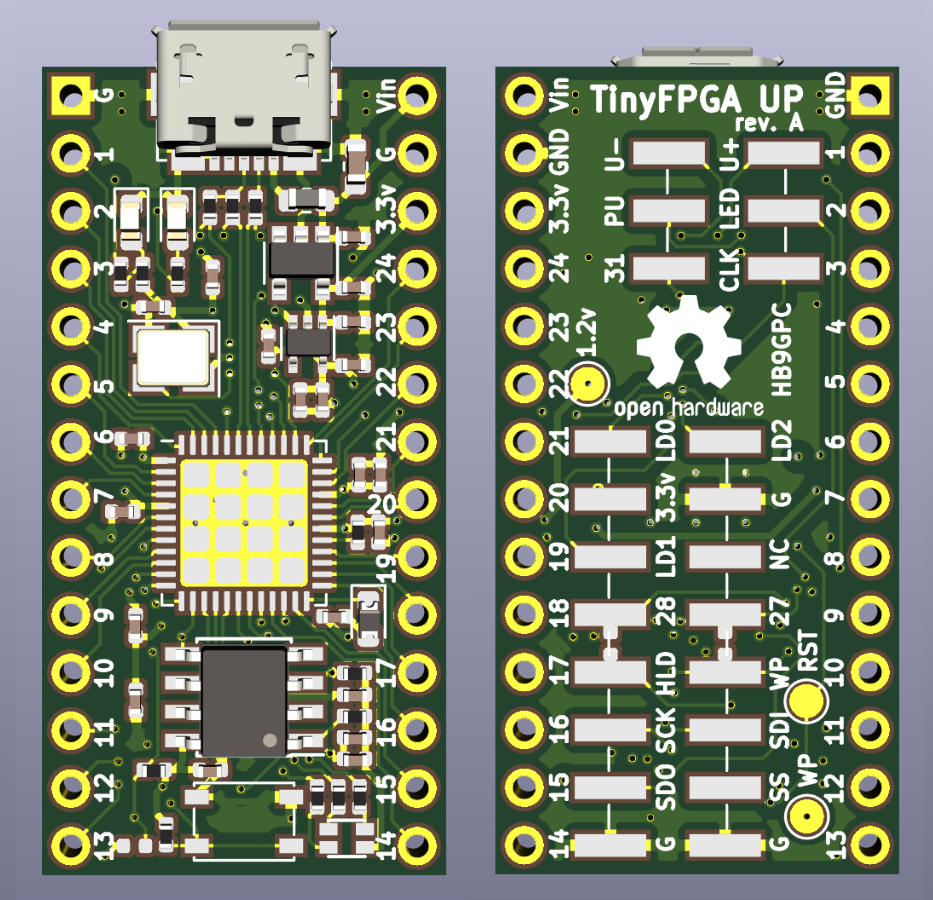

TinyFPGA-UP, from the project README
From the project README

Main components on the TinyFPGA-UP

ICE40UP5K-SG48IMIC5504-3.3YM5DSC6001CI2A-016.0000MIC5365-1.2YC5AT25SF081-SSHD-B

TinyFPGA-UP bill of materials (BOM)

55 components, 28 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ICE40UP5K-SG48I
iCE40-UP5K-SG48
U1
1
MIC5504-3.3YM5
MIC5504-3.3
U2
1
DSC6001CI2A-016.0000
DSC6001CI2A
U3
1
MIC5365-1.2YC5
MIC5365-1.2
U4
1
AT25SF081-SSHD-B
AT25SF081
U5
2
Conn_01x14
J1, J2
1
10118192-0001LF
USB_B_Micro
J3
1
Conn_02x08
J4
1
Conn_02x03
J5
1
CKN10502
SW_Push
SW1
2
LED
D1, D2
1
CDSU4148
D3
1
LTST-C19HE1WT
RGB
D4
1
BLM18PG300SN1D
30
L1
8
587-2477-1-ND‎
1uF
C1, C2, C3, C4, C13, C19, C20, C21
8
1276-1001-1-ND‎
100nF
C5, C7, C8, C9, C14, C15, C16, C18
1
490-13211-1-ND‎
10uF
C6
4
490-6043-1-ND‎
10nF
C10, C11, C12, C22
1
1276-6775-1-ND‎
10uF
C17
1
P1.50KL
1.5k
R1
Show 8 more
QtyPartRefs
2
P68.0L
68
R2, R3
1
P100L
100
R4
4
P10.0KL
10k
R5, R6, R7, R10
1
P2.20KL
2.2k
R8
4
P1.00KL
1k
R9, R12, R13, R14
1
P0.0J
0
R11
1
DNP
R15
2
0
R16, R17

TinyFPGA-UP design files

The KiCad project lives in the glanc1/TinyFPGA-UP repository on GitHub; these links point at the commit this page was built from.

TinyFPGA-UP: common questions

What microcontroller does the TinyFPGA-UP use?

The TinyFPGA-UP is built around the ICE40UP5K-SG48I, from the FPGA family.

How big is the TinyFPGA-UP PCB?

The TinyFPGA-UP measures 17.8 × 35.6 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the TinyFPGA-UP?

55 components, from 28 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the TinyFPGA-UP design files?

From the glanc1/TinyFPGA-UP repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the TinyFPGA-UP design in my own project?

Yes, under the terms of its CERN-OHL-1.2 license, which glanc1 chose for the repository.

Can I test firmware for the TinyFPGA-UP without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug FPGA firmware against it before you order a PCB.
