Weather dash
About the Weather dash PCB
Weather dash is an open source PCB design by grimsteel, published on GitHub. It is a 2-layer board measuring 61 × 46 mm, with 11 components from 10 distinct parts.
Other key parts include the WEMOS_S2_MINI and TFT_ST7735_SD. By type, the board carries 3 ICs, 3 switches, 2 connectors, 1 buzzer, 1 diode and 1 resistor.
It belongs with the power & battery and sensors designs in this gallery.
From the project

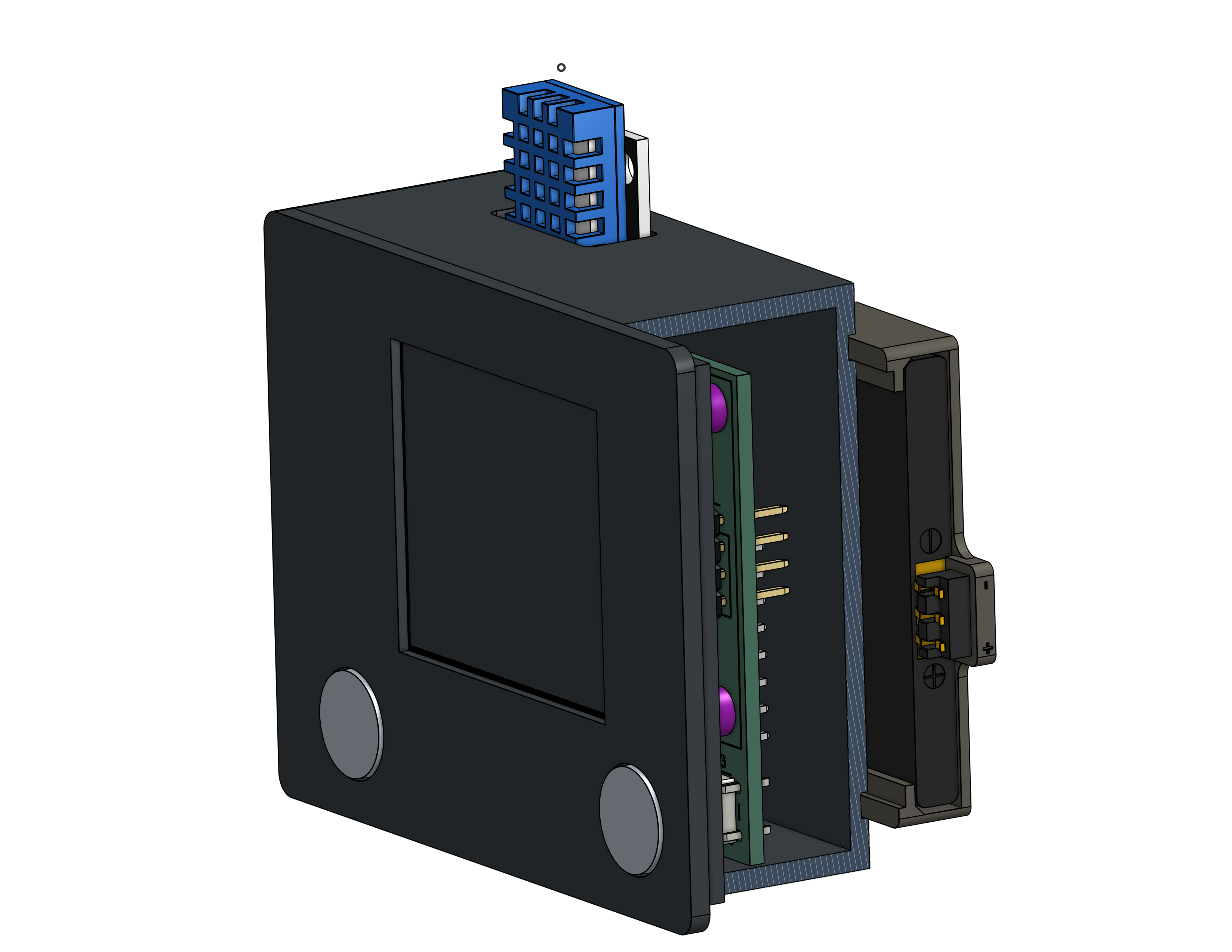

1.8" weather dashboard - two buttons + rechargable battery + DHT11
- Wemos S2 Mini - 1.8" TFT - DHT11 temp/humidity sensor - Li-ion battery charger
1. ESP32-C3 requires 3.0-3.6V input voltage 2. The LDO technically requires 4.3V for a stable 3.3V, but starts providing 3.0V at an input of ~3.1V 3. The battery is 3.8V 4. The 1N5817 Schottky has a voltage drop of 0.25V at 200 mA 5. Therefore, the LDO will be provided with 3.45V and will output 3.2-3.3V
Main components on the Weather dash
Weather dash bill of materials (BOM)
11 components, 10 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | WEMOS_S2_MINI WEMOS_S2_Mini | WEMOS_S2_Mini | U1 |
| 1 | TFT_ST7735_SD | TFT_ST7735_SD | U2 |
| 1 | ~ | TP4056 | U3 |
| 1 | CONN_01X02_PIN Conn_01x02_Pin | JST_PH_B2B-PH-K_1x02_P2.00mm_Vertical | J1 |
| 1 | CONN_01X03_SOCKET Conn_01x03_Socket | DHT11 | J3 |
| 1 | Buzzer | Buzzer_12x9.5RM7.6 | BZ1 |
| 2 | SW_Push | SW_PUSH_6mm_H4.3mm | SW1, SW3 |
| 1 | SW_SPST | JST_PH_B2B-PH-K_1x02_P2.00mm_Vertical | SW2 |
| 1 | 1N5817 | D_DO-41_SOD81_P7.62mm_Horizontal | D1 |
| 1 | 10 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1 |
Weather dash design files
The KiCad project lives in the grimsteel/weather-dash repository on GitHub; these links point at the commit this page was built from.
- Layoutweather-dash.kicad_pcb
- Schematicweather-dash.kicad_sch
- BOMproduction/bom.csv
Weather dash: common questions
How big is the Weather dash PCB?
The Weather dash measures 61 × 46 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Weather dash?
11 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Weather dash design files?
From the grimsteel/weather-dash repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Weather dash design in my own project?
The repository has no license, so all rights stay with grimsteel. Use it as a reference, and ask the author before reusing the design.
