About the FunBox PCB
FunBox is an open source PCB design by GuitarML, published on GitHub under the MIT license. It is a 2-layer board measuring 59.7 × 67.5 mm, with 63 components from 32 distinct parts.
Other key parts include the MCP6024-I/P, L78L05ACZ, MCP6002-I/P, H11L1M and Electrosmith_Daisy_Seed_Rev7. By type, the board carries 21 resistors, 18 capacitors, 4 ICs, 4 switches, 2 connectors and 2 LEDs.
It belongs with the audio designs in this gallery, and the repository also holds 2 earlier revisions of it.
From the project
Stereo guitar pedal platform using Daisy Seed.
This directory contains the KiCad files for manufacturing the Funbox PCB. Includes schematic, pcb, and generated BOM. Funbox uses a 125B sized enclosure.
VERIFIED WORKING - using OshPark standard board manufacturing

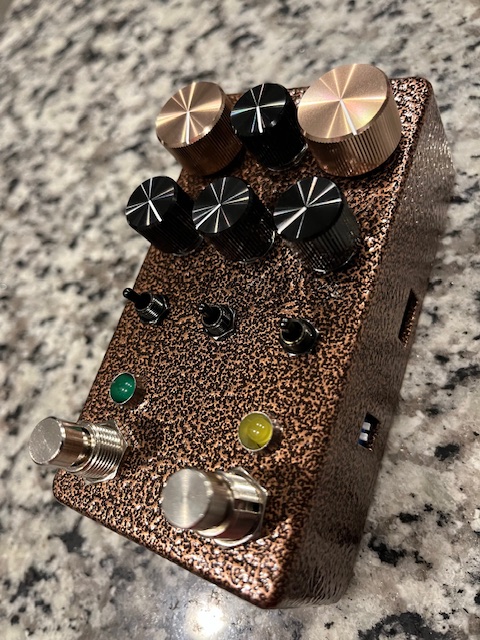

Funbox v1 uses a 125B enclosure with the following features: - Stereo In/Out - 9v power - 6 potentiometer knobs - 3 3-way switches On-Off-On - 2 SPST momentary footswitches - 2 LEDs - 2 Dipswitches

Main components on the FunBox
FunBox bill of materials (BOM)
63 components, 32 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MCP6024-I/P MCP6024 | DIP-14_W7.62mm | U1 |
| 1 | L78L05ACZ L7805 | TO-220-3_Vertical | U2 |
| 1 | MCP6002-I/P MCP6002 | DIP-8_W7.62mm | U3 |
| 1 | H11L1M H11L1 | DIP-6_W7.62mm | U5 |
| 1 | Electrosmith_Daisy_Seed_Rev7 | Electrosmith_Daisy_Seed | A1 |
| 1 | MIDI IN | TRRS-PJ-320A | J6 |
| 1 | EXPRESSION | TRRS-PJ-320A | J7 |
| 1 | ~ | TestPoint_THTPad_D2.0mm_Drill1.0mm | 9v |
| 1 | FOOT_SWITCH_1 Foot_Switch_1 | PinHeader_1x02_P2.54mm_Vertical | FS1 |
| 1 | FOOT_SWITCH_2 Foot_Switch_2 | PinHeader_1x02_P2.54mm_Vertical | FS2 |
| 6 | 10K | Pot_RightAngle_LongPin_16mm | POT1, POT2, POT3, POT4, POT5, POT6 |
| 1 | DS03-254-04BE | DS03-254-04BE-dip4 | S1 |
| 3 | SW_SPDT | SW_Toggle_SPDT_lugs | SW1, SW2, SW3 |
| 1 | LED_1 | PinHeader_1x02_P2.54mm_Vertical | LED1 |
| 1 | LED_2 | PinHeader_1x02_P2.54mm_Vertical | LED2 |
| 1 | 1N5817 | D_DO-41_SOD81_P7.62mm_Horizontal | D1 |
| 1 | 1N4148 | D_DO-35_SOD27_P7.62mm_Horizontal | D2 |
| 6 | 1UF | C_Rect_L7.0mm_W6.0mm_P5.00mm | C1, C4, C5, C14, C15, C17 |
| 2 | 100PF 100pF | C_Rect_L7.0mm_W2.5mm_P5.00mm | C2, C11 |
| 2 | 1NF | C_Rect_L7.0mm_W2.5mm_P5.00mm | C3, C16 |
Show 12 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 100UF | CP_Radial_D8.0mm_P3.50mm | C6 |
| 4 | 100NF | C_Rect_L7.0mm_W2.5mm_P5.00mm | C7, C8, C9, C10 |
| 2 | 2.2NF 2.2nF | C_Rect_L7.0mm_W2.5mm_P5.00mm | C12, C13 |
| 1 | 100NF | C_Disc_D6.0mm_W2.5mm_P5.00mm | C30 |
| 8 | 1M | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R2, R5, R6, R13, R14, R15, R16 |
| 4 | 1K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R3, R8, R9, R12 |
| 2 | 100 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R4, R17 |
| 2 | 100K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R7, R18 |
| 2 | 3K3 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R10, R11 |
| 1 | 2M | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R19 |
| 1 | 220R | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R30 |
| 1 | 470R | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R31 |
FunBox design files
The KiCad project lives in the GuitarML/FunBox repository on GitHub; these links point at the commit this page was built from.
FunBox: common questions
How big is the FunBox PCB?
The FunBox measures 59.7 × 67.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the FunBox?
63 components, from 32 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the FunBox design files?
From the GuitarML/FunBox repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the FunBox design in my own project?
Yes, under the terms of its MIT license, which GuitarML chose for the repository.
Earlier revisions in the repo: funbox_v2, funbox
