Capstone ece4900

gworkman·capstone-ece4900·hardware/hardware.kicad_pcb

Capstone ece4900 PCB layout, top view — open source ESP32 board by gworkman
Simulate this board

About the Capstone ece4900 PCB

Capstone ece4900 is an open source ESP32 PCB design by gworkman, published on GitHub. It is a 4-layer board measuring 68.6 × 62.2 mm, with 25 components from 20 distinct parts.

Its main chip is the ESP32-DEVKITC, from the ESP32 family. Other key parts include the AP3429A, MPU-6050 and FDC2212. By type, the board carries 11 capacitors, 6 resistors, 4 ICs, 2 inductors, 1 connector and 1 diode.

It belongs with the sensors and iot & wireless designs in this gallery.

From the project

Capstone project for Team 7 at The Ohio State University Department of Electrical and Computer Engineering

The following tools are highly recommended: 1. VS Code, with the python extension installed 2. A serial port monitor, such as the one included with the Arduino IDE, the GNU utility screen, or the terminal emulator program PuTTY

Command | Arguments | Description | Example ------- | --------- | ----------- | ------- make flash | port | Flashes the micropython firmware to the ESP32 | make flash port=/dev/tty.usbserieal-14120 make list | port | Lists the files currently on the ESP32 | make list port=/dev/tty.usbserial-14120 make put | port, file | Loads a file from the local filesystem to the…

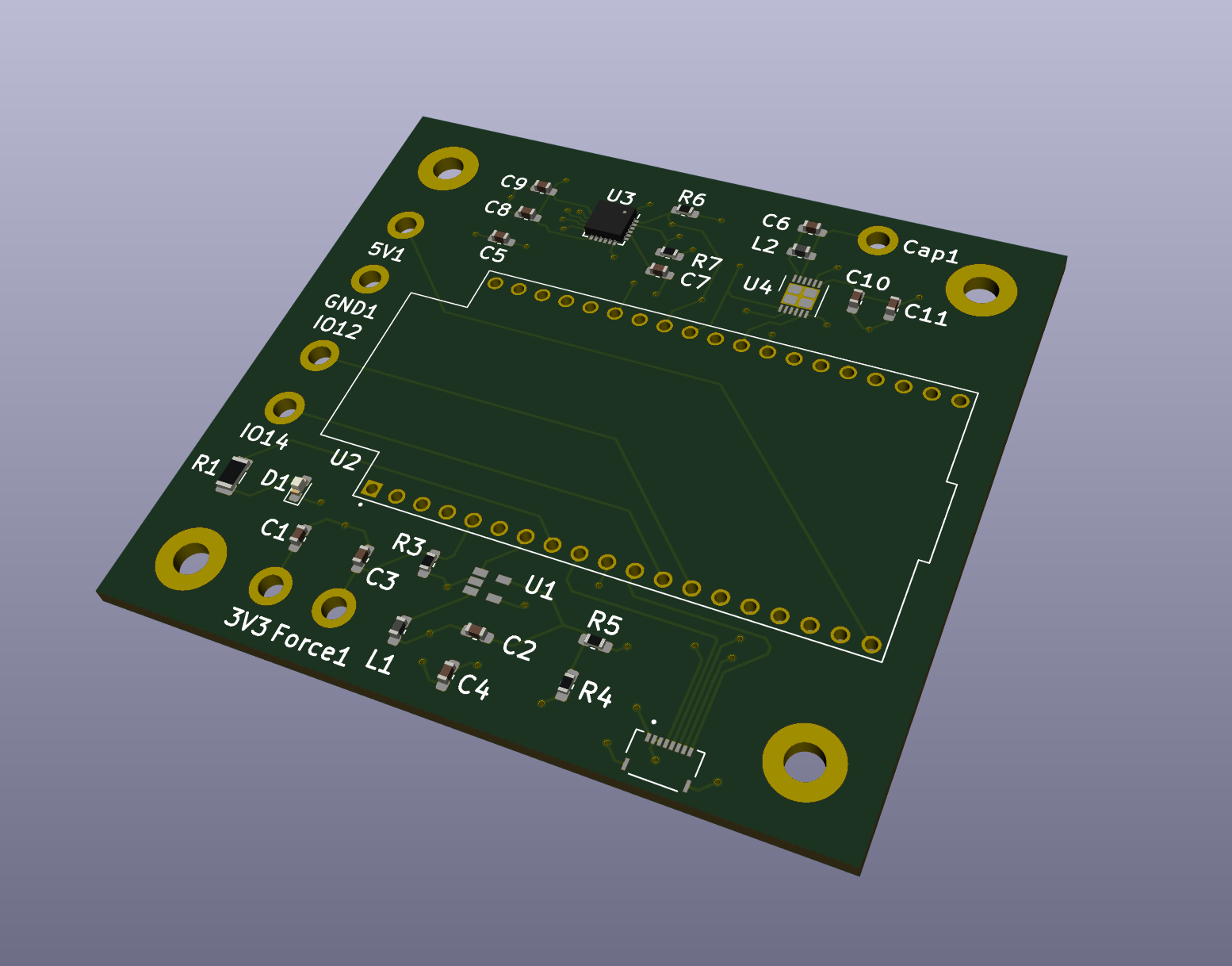

Capstone ece4900, from the project README
From the project README

Main components on the Capstone ece4900

AP3429AESP32-DEVKITCMPU-6050FDC2212

Capstone ece4900 bill of materials (BOM)

25 components, 20 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AP3429A
U1
1
ESP32-DEVKITC
U2
1
MPU-6050
U3
1
FDC2212
U4
1
5034800800
J1
1
BLUE
D1
1
2.2UH
2.2uH
L1
1
18UH
18uH
L2
2
22UF
22uF
C1, C4
1
22PF
22pF
C2
4
0.1UF
0.1uF
C3, C5, C8, C10
1
33PF
33pF
C6
1
2.2UF
2.2uF
C7
1
10NF
10nF
C9
1
1UF
1uF
C11
1
80
R1
1
200K
200k
R3
1
300K
300k
R4
1
150K
150k
R5
2
4.7K
4.7k
R6, R7

Capstone ece4900 design files

The KiCad project lives in the gworkman/capstone-ece4900 repository on GitHub; these links point at the commit this page was built from.

Capstone ece4900: common questions

What microcontroller does the Capstone ece4900 use?

The Capstone ece4900 is built around the ESP32-DEVKITC, from the ESP32 family.

How big is the Capstone ece4900 PCB?

The Capstone ece4900 measures 68.6 × 62.2 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Capstone ece4900?

25 components, from 20 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Capstone ece4900 design files?

From the gworkman/capstone-ece4900 repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Capstone ece4900 design in my own project?

The repository has no license, so all rights stay with gworkman. Use it as a reference, and ask the author before reusing the design.
