Esp32-wroom-32-usb development board

Habib-creater·esp32-wroom-32-usb-development-board·hardware/kicad/ESP32-WROOM-32.kicad_pcb

Esp32-wroom-32-usb development board layout, top view — open source ESP32 board by Habib-creater
Simulate this board

About the Esp32-wroom-32-usb development board

Esp32-wroom-32-usb development board is an open source ESP32 PCB design by Habib-creater, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 51.8 × 31 mm, with 29 components from 16 distinct parts.

Its main chip is the ESP32-WROOM-32E-H4, from the ESP32 family. Other key parts include the AP2112K-3.3TRG1 and 16278. By type, the board carries 8 capacitors, 7 resistors, 5 diodes, 3 ICs, 3 connectors and 2 switches.

It belongs with the usb & debug tools and dev boards & breakouts designs in this gallery.

From the project

Professional ESP32-WROOM-32 development board with USB-UART programming, 3.3V regulation, BOOT/RESET control, GPIO expansion, I2C ESD protection, and complete KiCad manufacturing documentation.

A complete 2-layer ESP32-WROOM-32E development board designed in KiCad, integrating USB-to-UART programming, protected USB power input, 3.3 V regulation, BOOT/RESET control, GPIO expansion, and protected I²C interfaces.

This project presents the complete hardware design of a compact ESP32-WROOM-32E development board, including schematic capture, component selection, PCB layout, power distribution, interface protection, signal connectivity, design-rule verification, and manufacturing-data generation.

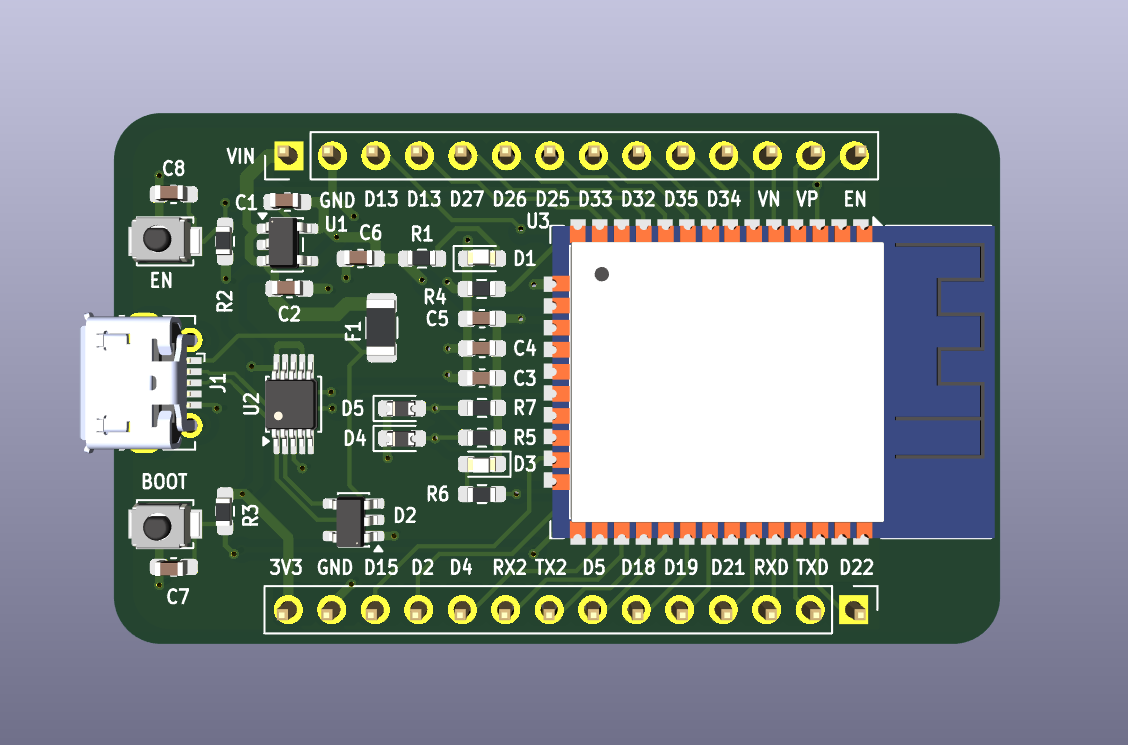

Esp32-wroom-32-usb development board, from the project README
From the project README

Main components on the Esp32-wroom-32-usb development board

AP2112K-3.3TRG116278ESP32-WROOM-32E-H4

Esp32-wroom-32-usb development board bill of materials (BOM)

29 components, 16 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AP2112K-3.3TRG1
AP2112K-3.3
Diodes Incorporated
U1
1
16278
CH340E
SparkFun Electronics
U2
1
ESP32-WROOM-32E-H4
ESP32-WROOM-32
Espressif Systems
U3
1
1050170001
USB_B_Micro
Molex
J1
2
SSK01-MPH-254-A14
Conn_01x14
Same Sky (Formerly CUI Devices)
J2, J3
1
MPTS1206L050
500m
Meritek
F1
2
B3U-1000P
SW_Push
Aratas (Formerly Omron Components)
SW1, SW2
2
VLMG1300-GS08
Green
Vishay Semiconductor Opto Division
D1, D3
1
SP0503BAHT
Littelfuse Inc.
D2
2
AXGD10603NR
1N62xxCA
Littelfuse Inc.
D4, D5
3
CC0603MRX5R7BB106
10u
YAGEO
C1, C2, C3
5
CC0603KRX7R7BB104
0.1u
YAGEO
C4, C5, C6, C7, C8
1
RC0603FR-071KL
1k
YAGEO
R1
3
RC0603FR-0710KL
10K
YAGEO
R2, R3, R4
2
RC0603FR-074K7L
4.7k
YAGEO
R5, R7
1
RC0603FR-072K2L
2.2k
YAGEO
R6

Esp32-wroom-32-usb development board design files

The KiCad project lives in the Habib-creater/esp32-wroom-32-usb-development-board repository on GitHub; these links point at the commit this page was built from.

Esp32-wroom-32-usb development board: common questions

What microcontroller does the Esp32-wroom-32-usb development board use?

The Esp32-wroom-32-usb development board is built around the ESP32-WROOM-32E-H4, from the ESP32 family.

How big is the Esp32-wroom-32-usb development board?

The Esp32-wroom-32-usb development board measures 51.8 × 31 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Esp32-wroom-32-usb development board?

29 components, from 16 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Esp32-wroom-32-usb development board design files?

From the Habib-creater/esp32-wroom-32-usb-development-board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Esp32-wroom-32-usb development board design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which Habib-creater chose for the repository.

Can I test firmware for the Esp32-wroom-32-usb development board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
