Weather dash
hackclub·asylum·designs/weather_stations/grimsteel_weather_station/pcb/weather-dash.kicad_pcb
About the Weather dash PCB
Weather dash is an open source PCB design by hackclub, published on GitHub under the MIT license. It is a 2-layer board measuring 61 × 46 mm, with 11 components from 10 distinct parts.
Other key parts include the WEMOS_S2_Mini and TFT_ST7735_SD. By type, the board carries 3 ICs, 3 switches, 2 connectors, 1 buzzer, 1 diode and 1 resistor.
It belongs with the displays & leds, iot & wireless and power & battery designs in this gallery.
From the project

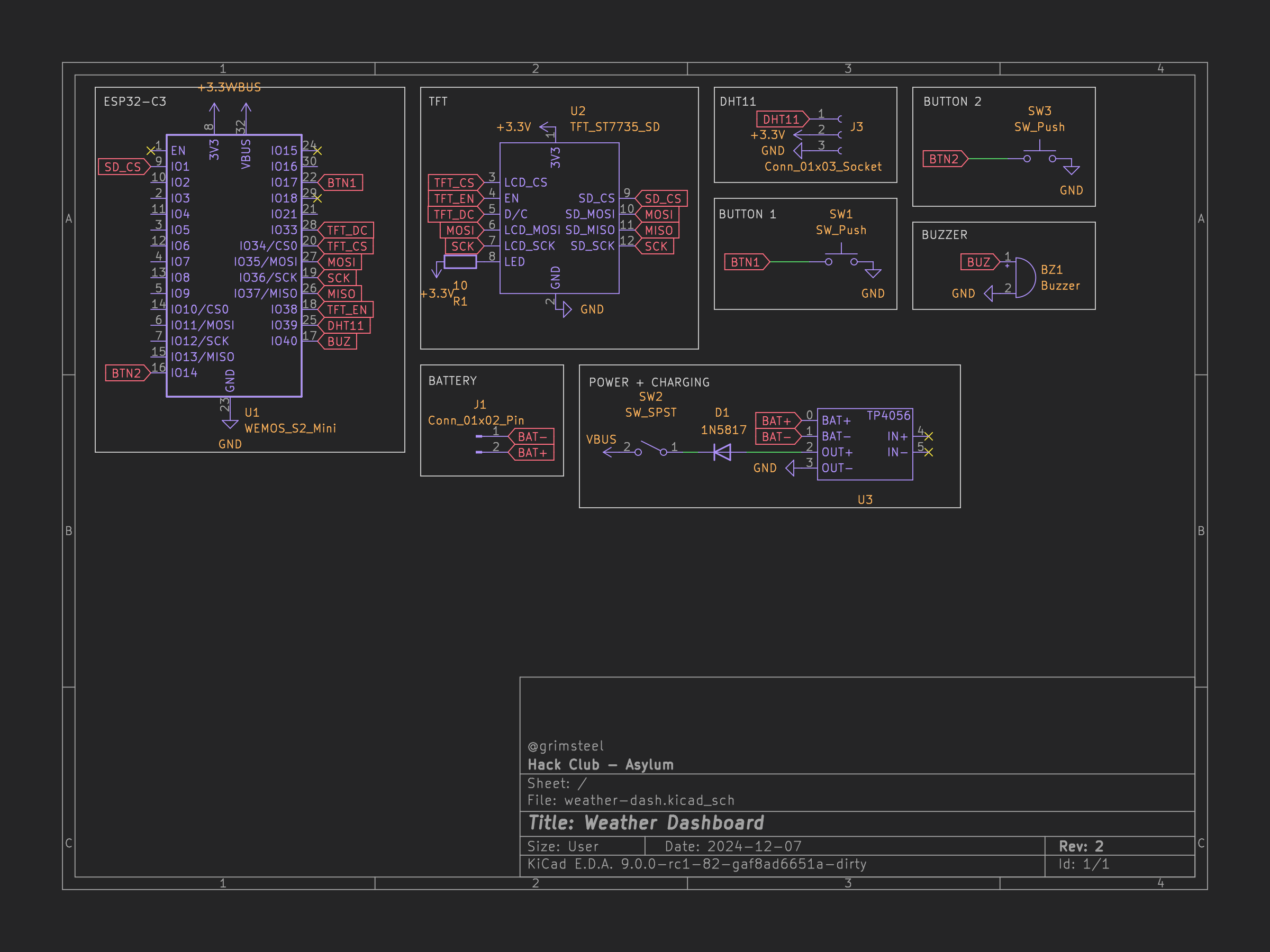

Schematic | PCB :-------------------------:|:-------------------------: |
Schematic | PCB :-------------------------:|:-------------------------: |
I'm using a WeMos ESP32-S2 module because of the added pins!
[x] I ran DRC in KiCad and have made sure there are 0 errors!
The PCB is fastened using 3 M3 Heatset inserts and 3 M3 screws. The case itself snaps together.
The firmware is written using ESP-IDF. It gets all data from Home Assistant

Main components on the Weather dash
Weather dash bill of materials (BOM)
11 components, 10 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | WEMOS_S2_Mini | WEMOS_S2_Mini | U1 |
| 1 | TFT_ST7735_SD | TFT_ST7735_SD | U2 |
| 1 | ~ | TP4056 | U3 |
| 1 | Conn_01x02_Pin | JST_PH_B2B-PH-K_1x02_P2.00mm_Vertical | J1 |
| 1 | Conn_01x03_Socket | DHT11 | J3 |
| 1 | Buzzer | Buzzer_12x9.5RM7.6 | BZ1 |
| 2 | SW_Push | SW_PUSH_6mm_H4.3mm | SW1, SW3 |
| 1 | SW_SPST | JST_PH_B2B-PH-K_1x02_P2.00mm_Vertical | SW2 |
| 1 | 1N5817 | D_DO-41_SOD81_P7.62mm_Horizontal | D1 |
| 1 | 10 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1 |
Weather dash design files
The KiCad project lives in the hackclub/asylum repository on GitHub; these links point at the commit this page was built from.
Weather dash: common questions
How big is the Weather dash PCB?
The Weather dash measures 61 × 46 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Weather dash?
11 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Weather dash design files?
From the hackclub/asylum repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Weather dash design in my own project?
Yes, under the terms of its MIT license, which hackclub chose for the repository.
