Weather dashboard
About the Weather dashboard PCB
Weather dashboard is an open source PCB design by hackclub, published on GitHub under the MIT license. It is a 2-layer board measuring 35.5 × 59 mm, with 14 components from 14 distinct parts.
Other key parts include the WEMOS_S2_Mini, MCP73831-2-OT and U4. By type, the board carries 4 resistors, 3 ICs, 2 diodes, 2 capacitors, 1 transistor and 1 connector.
From the project
- Fetching from BMKG's API - Displays: Weather information
- Fetching from BMKG's API - Displays: Weather information
The firmware is located in the firmware folder made using PlatformIO. To open using PlatformIO, open the firmware.

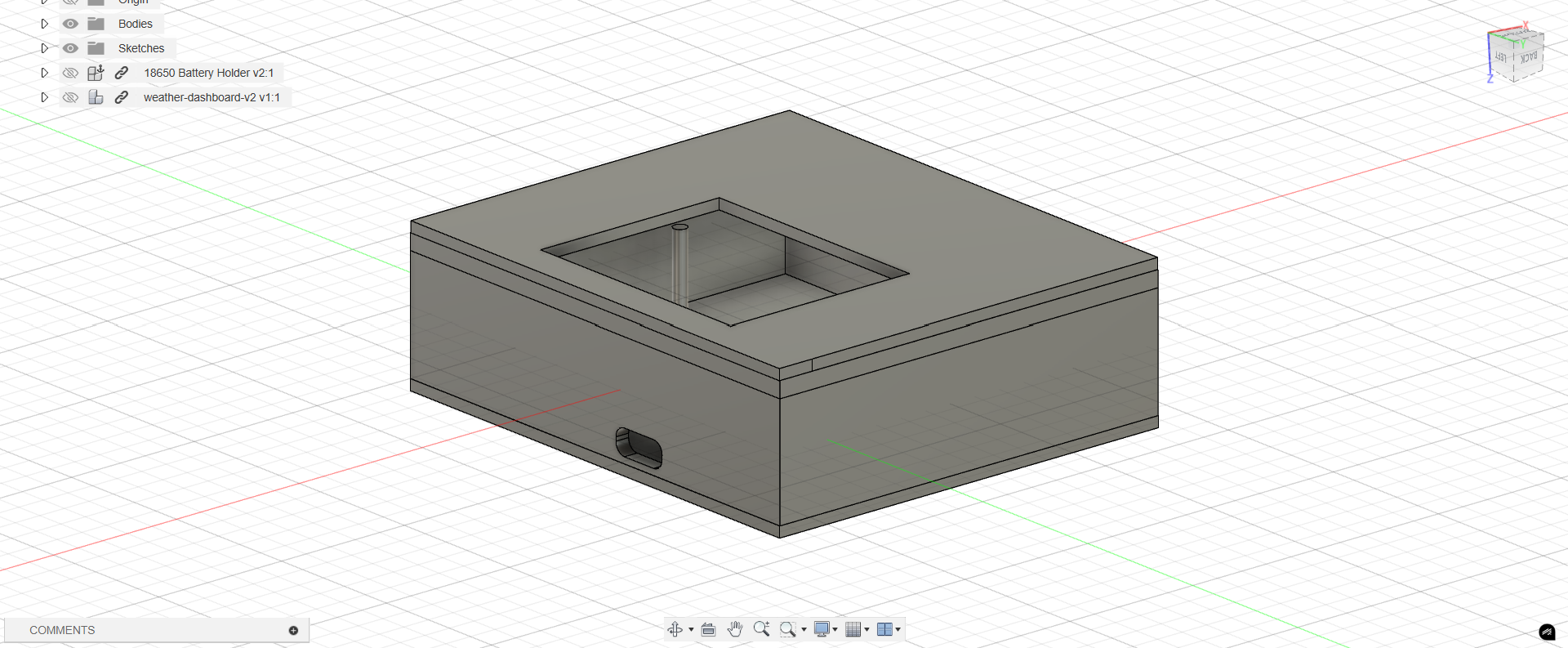

The design was made using Autodesk Fusion is located in the cad folder.
The PCB was made using KiCad 8.99 located in the pcb folder.
- 2x 10 uF 1210 3216(mm) SMD Capacitor - 1x 18650 Li-ion Battery - 1x WEMOS S2 Mini - 1x Resistor SMD 1206 3216(mm) 50k Ohm - 1x Resistor SMD 1206 3216 (mm) 10 Ohm - 1x Resistor SMD 1206 3216 (mm) 1k Ohm - 1x Resistor SMD 1206 3216 (mm) 100k Ohm - 1x SL2301S SOT-23 MOSFET - 1x LED SMD…
Main components on the Weather dashboard
Weather dashboard bill of materials (BOM)
14 components, 14 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | WEMOS_S2_Mini | WEMOS_S2_Mini | U1 |
| 1 | MCP73831-2-OT | SOT-23-5 | U3 |
| 1 | U4 | TFT_ST7735_SD | U4 |
| 1 | SL2301S | SOT-23 | Q1 |
| 1 | Conn_01x02_MountingPin | PinHeader_1x02_P1.00mm_Vertical | J1 |
| 1 | SW_Omron_B3FS | SW_Tactile_Straight_KSA0Axx1LFTR | SW2 |
| 1 | 1N5817 ORANGE | LED_1206_3216Metric_ReverseMount_Hole1.8x2.4mm | D1 |
| 1 | D_Schottky | DO-214AC | D2 |
| 1 | C1 | C_1206_3216Metric | C1 |
| 1 | C2 | C_1206_3216Metric | C2 |
| 1 | R1 | R_1206_3216Metric | R1 |
| 1 | 50k | R_1206_3216Metric | R3 |
| 1 | 1k | R_1206_3216Metric | R4 |
| 1 | 10K 100k | R_1206_3216Metric | R5 |
Weather dashboard design files
The KiCad project lives in the hackclub/asylum repository on GitHub; these links point at the commit this page was built from.
Weather dashboard: common questions
How big is the Weather dashboard PCB?
The Weather dashboard measures 35.5 × 59 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Weather dashboard?
14 components, from 14 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Weather dashboard design files?
From the hackclub/asylum repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Weather dashboard design in my own project?
Yes, under the terms of its MIT license, which hackclub chose for the repository.
