Simple010
About the Simple010 PCB

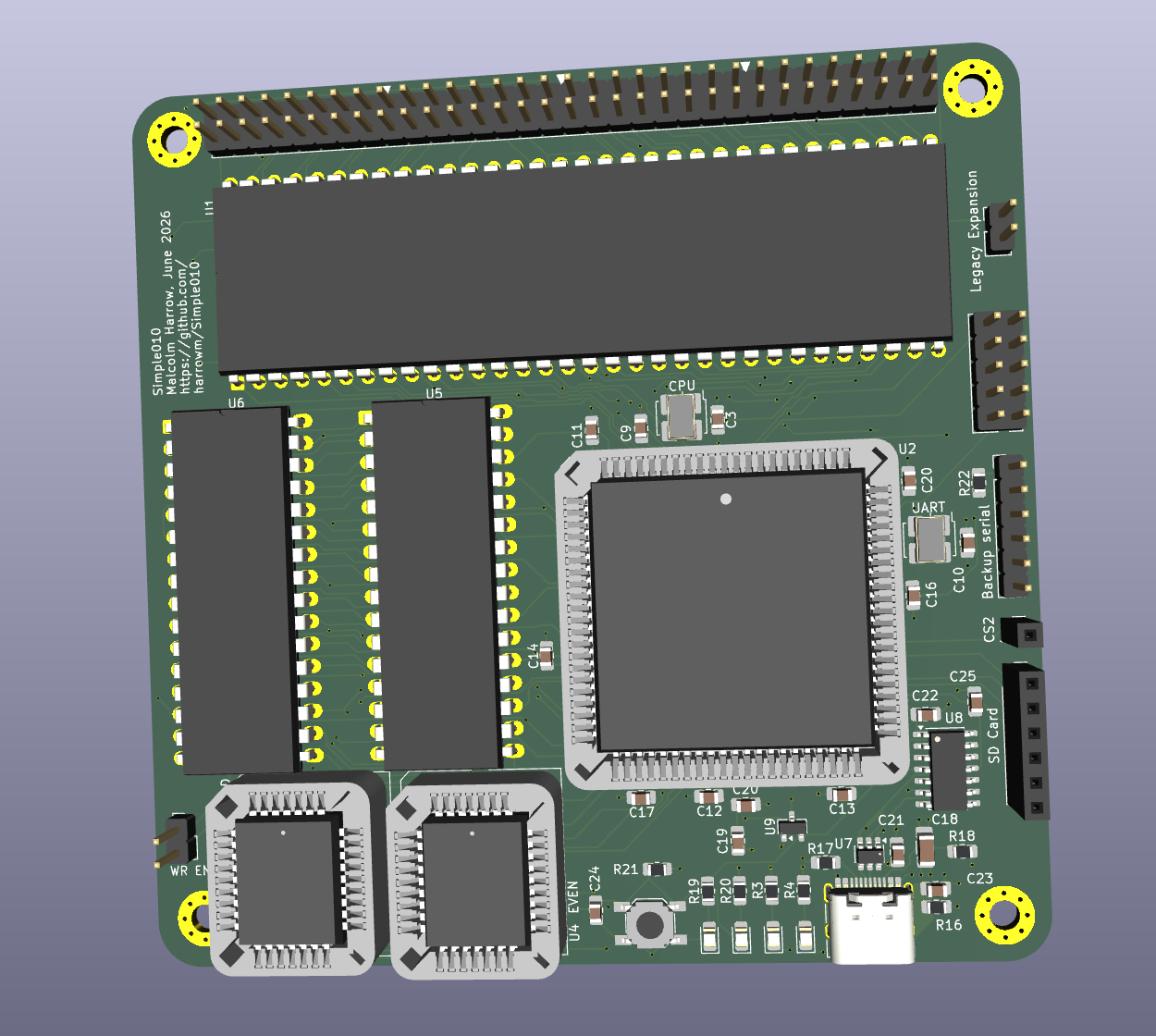

Simple010 is an open source PCB design by harrowm, published on GitHub under the MIT license. It is a 4-layer board measuring 100 × 100 mm, with 70 components from 31 distinct parts.
Other key parts include the MC68010P, ATF1508ASx-xxJx84, SST39SF040, AS6C4008-55PCN and USBLC6-2SC6. By type, the board carries 24 capacitors, 22 resistors, 9 ICs, 6 connectors, 4 LEDs and 2 crystals.
It belongs with the usb & debug tools designs in this gallery.
From the project
68010 SBC using a ATF1608 CPLD based on teh rosco_m68k SBC
A 68010 single-board computer based on the roscom68k r2 design. Simple010 replaces the six discrete glue-logic ICs from that design with a single ATF1508AS PLCC84 CPLD**, reducing board complexity while adding hardware SPI acceleration for SD card access.
1. Glue logic — HALT/RESET open-drain drivers, CPU-space gating, boot flag 2. Address decoder — RAM, ROM, expansion, and I/O selects; DTACK; WR 3. Watchdog — 16-cycle timeout, asserts BERR open-drain 4. UART A — fixed 115200 8N1, XR68C681-compatible register map 5. GPIO / OPR — XR68C681 output port emulation; drives SPI CS, LEDs, MOSI, SCK…
Main components on the Simple010
Simple010 bill of materials (BOM)
70 components, 31 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MC68010P | DIP-64_W22.86mm | U1 |
| 1 | ATF1508ASx-xxJx84 | PLCC-84_THT-Socket | U2 |
| 2 | SST39SF040 | PLCC-32_THT-Socket | U3, U4 |
| 2 | AS6C4008-55PCN | DIP-32_W15.24mm_LongPads | U5, U6 |
| 1 | USBLC6-2SC6 | SOT-23-6 | U7 |
| 1 | MCP2221A | SOIC-14_3.9x8.7mm_P1.27mm | U8 |
| 1 | LM809M3-4.63/NOPB | SOT-23 | U9 |
| 1 | SG-5032CAN 10MHz | Oscillator_SMD_SeikoEpson_SG8002LB-4Pin_5.0x3.2mm_HandSoldering | Y1 |
| 1 | SG-5032CAN 3.6864MHz | Oscillator_SMD_SeikoEpson_SG8002LB-4Pin_5.0x3.2mm_HandSoldering | Y2 |
| 1 | CS2 | PinSocket_1x01_P2.54mm_Vertical | J1 |
| 1 | Conn_02x05_Odd_Even | PinHeader_2x05_P2.54mm_Vertical | J2 |
| 1 | USB_C_Receptacle_USB2.0_16P | USB_C_Receptacle_HRO_TYPE-C-31-M-12 | J3 |
| 1 | Backup serial | PinHeader_1x06_P2.54mm_Vertical | J4 |
| 1 | Conn_02x32_Odd_Even | PinHeader_2x32_P2.54mm_Vertical | J7 |
| 1 | SD Card | PinSocket_1x06_P2.54mm_Vertical | J8 |
| 1 | ROM WR Enable | PinHeader_1x02_P2.54mm_Vertical | JP1 |
| 1 | Legacy Expansion | PinHeader_1x02_P2.54mm_Vertical | JP2 |
| 1 | Reset | SW_SPST_SKQG_WithoutStem | SW1 |
| 2 | GREEN | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | LED1, LED3 |
| 2 | RED | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | LED2, LED4 |
Show 11 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 19 | 100nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1, C2, C3, C5, C6, C7, C8, C9 +11 |
| 2 | 10uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C4, C19 |
| 1 | 47uF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C18 |
| 1 | 100pF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C23 |
| 1 | 470nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C25 |
| 2 | 10K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1, R2 |
| 5 | 1K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R3, R4, R19, R20, R21 |
| 1 | 1K2 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R5 |
| 11 | 4K7 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R6, R7, R8, R9, R10, R11, R12, R13 +3 |
| 1 | 1M | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R16 |
| 2 | 5.1k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R17, R18 |
Simple010 design files
The KiCad project lives in the harrowm/Simple010 repository on GitHub; these links point at the commit this page was built from.
Simple010: common questions
How big is the Simple010 PCB?
The Simple010 measures 100 × 100 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Simple010?
70 components, from 31 distinct parts. The full bill of materials is listed on this page.
Where can I download the Simple010 design files?
From the harrowm/Simple010 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Simple010 design in my own project?
Yes, under the terms of its MIT license, which harrowm chose for the repository.
