About the My-Own-UPS-HAT-for-Raspberry-Pi-Zero

My-Own-UPS-HAT-for-Raspberry-Pi-Zero is an open source PCB design by harshverma27, published on GitHub. It is a 2-layer board measuring 65 × 30 mm, with 31 components from 27 distinct parts.

Other key parts include the TP4056-42-ESOP8, DW01A and TPS61236PRWLR. By type, the board carries 10 resistors, 6 capacitors, 5 connectors, 3 ICs, 3 transistors and 2 diodes.

It belongs with the power & battery and dev boards & breakouts designs in this gallery.

From the project

This project is step by step explanation of how I created my own UPS HAT for Pi Zero 2/2W

This project is a budget-friendly UPS (Uninterruptible Power Supply) designed specifically for the Raspberry Pi Zero 2.

I built this because I personally use a Pi Zero 2, and I needed a reliable battery backup (UPS) for it. Most ready-made UPS solutions available are either:

Too expensive Overkill for Pi Zero * Poorly designed or unreliable

So instead of buying one, I designed my own UPS PCB from scratch.

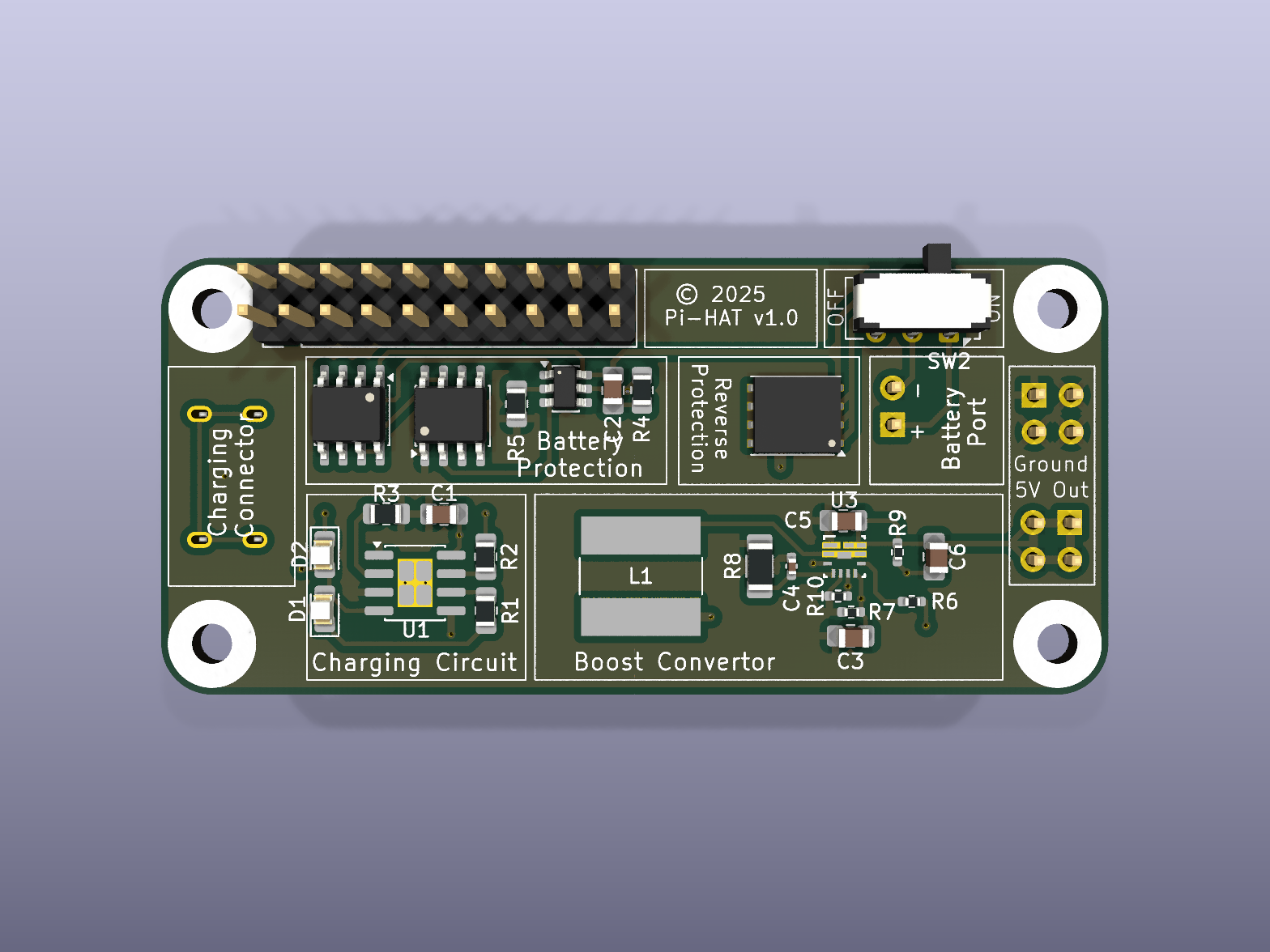

My-Own-UPS-HAT-for-Raspberry-Pi-Zero, from the project README
From the project README

Main components on the My-Own-UPS-HAT-for-Raspberry-Pi-Zero

TP4056-42-ESOP8DW01ATPS61236PRWLR

My-Own-UPS-HAT-for-Raspberry-Pi-Zero bill of materials (BOM)

31 components, 27 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TP4056-42-ESOP8
U1
1
DW01A
U2
1
TPS61236PRWLR
U3
1
FDMS86350
Q1
2
AO4842
Q2, Q3
2
CONN_02X02_ODD_EVEN
Conn_02x02_Odd_Even
J1, J3
1
CONN_01X02_PIN
Conn_01x02_Pin
J2
1
CONN_02X10_ODD_EVEN
Conn_02x10_Odd_Even
J5
1
USB_C_PLUG_USB2.0
USB_C_Plug_USB2.0
P1
1
SW_Slide_DPDT
SW2
1
LED (RED)
D1
1
LED (GREEN)
D2
1
1uH 10mOhm
L1
1
10UF
10uF
C1
1
0.1UF
0.1uF
C2
1
10uF 5.787mOhm
C3
1
10nF 1mOhm
C4
1
47UF
47uF
C5
1
10PF
10pF
C6
2
1k
R1, R2
Show 7 more
QtyPartRefs
1
2k
R3
1
100 ohm
R4
1
1k ohm
R5
2
1M Ohm
R6, R7
1
30.9k Ohm
R8
1
619k Ohm
R9
1
205k Ohm
R10

My-Own-UPS-HAT-for-Raspberry-Pi-Zero design files

The KiCad project lives in the harshverma27/My-Own-UPS-HAT-for-Raspberry-Pi-Zero repository on GitHub; these links point at the commit this page was built from.

My-Own-UPS-HAT-for-Raspberry-Pi-Zero: common questions

How big is the My-Own-UPS-HAT-for-Raspberry-Pi-Zero?

The My-Own-UPS-HAT-for-Raspberry-Pi-Zero measures 65 × 30 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the My-Own-UPS-HAT-for-Raspberry-Pi-Zero?

31 components, from 27 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the My-Own-UPS-HAT-for-Raspberry-Pi-Zero design files?

From the harshverma27/My-Own-UPS-HAT-for-Raspberry-Pi-Zero repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the My-Own-UPS-HAT-for-Raspberry-Pi-Zero design in my own project?

The repository has no license, so all rights stay with harshverma27. Use it as a reference, and ask the author before reusing the design.
