About the PCB2 PCB

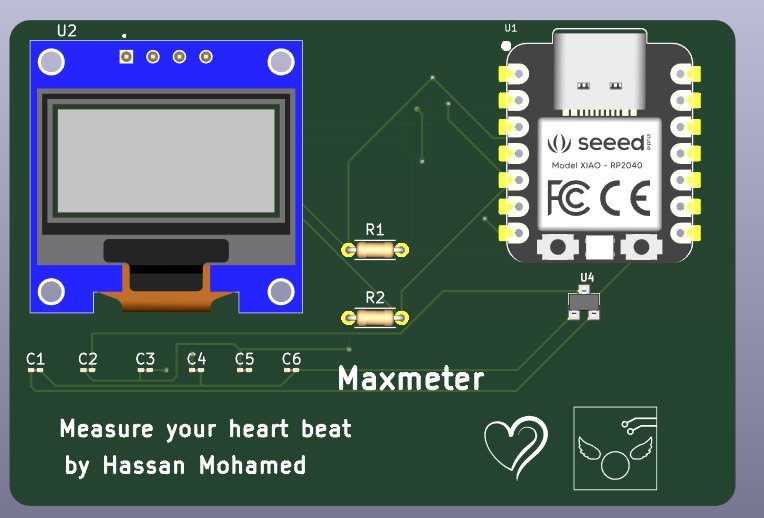

PCB2 is an open source RP2040/RP2350 PCB design by Hasona57, published on GitHub. It is a 2-layer board measuring 69.5 × 46.5 mm, with 12 components from 6 distinct parts.
Its main chip is the XIAO-RP2040-DIP, from the RP2040/RP2350 family. Other key parts include the DM-OLED096-636, MAX30100EFD_ and XC6206P182MR. By type, the board carries 6 capacitors, 4 ICs and 2 resistors.
It belongs with the wearables and sensors designs in this gallery.
From the project
Sensor project on PCB
This project is a compact PCB design that integrates the MAX30100 sensor to measure heart rate and blood oxygen (SpO₂) levels. The PCB is intended to be used in a wearable watch, offering real-time health monitoring.
Designed using KiCad and programmed with Arduino IDE, this project is ideal for health-tracking applications, DIY fitness wearables, and biomedical prototypes.

Main components on the PCB2
PCB2 bill of materials (BOM)
12 components, 6 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | XIAO-RP2040-DIP | XIAO-RP2040-DIP | U1 |
| 1 | DM-OLED096-636 | MODULE_DM-OLED096-636 | U2 |
| 1 | MAX30100EFD_ | LGA14R80P2X7_560X280X130 | U3 |
| 1 | XC6206P182MR PMIC-XC6206P182MR_SOT23_ | SOT-23 | U4 |
| 6 | C | C_0201_0603Metric_Pad0.64x0.40mm_HandSolder | C1, C2, C3, C4, C5, C6 |
| 2 | R | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | R1, R2 |
PCB2 design files
The KiCad project lives in the Hasona57/PCB2 repository on GitHub; these links point at the commit this page was built from.
- LayoutPCB/Maxmeter.kicad_pcb
- SchematicPCB/Maxmeter.kicad_sch
PCB2: common questions
What microcontroller does the PCB2 use?
The PCB2 is built around the XIAO-RP2040-DIP, from the RP2040/RP2350 family.
How big is the PCB2 PCB?
The PCB2 measures 69.5 × 46.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the PCB2?
12 components, from 6 distinct parts. The full bill of materials is listed on this page.
Where can I download the PCB2 design files?
From the Hasona57/PCB2 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the PCB2 design in my own project?
The repository has no license, so all rights stay with Hasona57. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the PCB2 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
