EduBoard PIC16

hassan-ibn-mustafa·EduBoard_PIC16·Hardware_Design/PIC.kicad_pcb

EduBoard PIC16 PCB layout, top view — open source PIC board by hassan-ibn-mustafa

About the EduBoard PIC16 PCB

EduBoard PIC16 is an open source PIC PCB design by hassan-ibn-mustafa, published on GitHub. It is a 2-layer board measuring 193.5 × 141 mm, with 72 components from 24 distinct parts.

Its main chip is the PIC16F877A-IP, from the PIC family. Other key parts include the LM7805_TO220, D168K and 74LS48. By type, the board carries 30 resistors, 10 connectors, 10 diodes, 7 ICs, 5 switches and 4 transistors.

It belongs with the displays & leds designs in this gallery.

From the project

An educational, single-layer development board designed to simplify learning and prototyping with the Microchip PIC16F877A microcontroller. Designed entirely in KiCad, this board eliminates complexity and focuses on a modular, jumper-based routing architecture for students and el

An educational, single-layer development board designed to simplify learning and prototyping with the Microchip PIC16F877A microcontroller. Designed entirely in KiCad, this board eliminates complexity and focuses on a modular, jumper-based routing architecture for students and electronics enthusiasts.

🌐 Click Here to View Live-Demo&InteractiveBOM & Project Website**

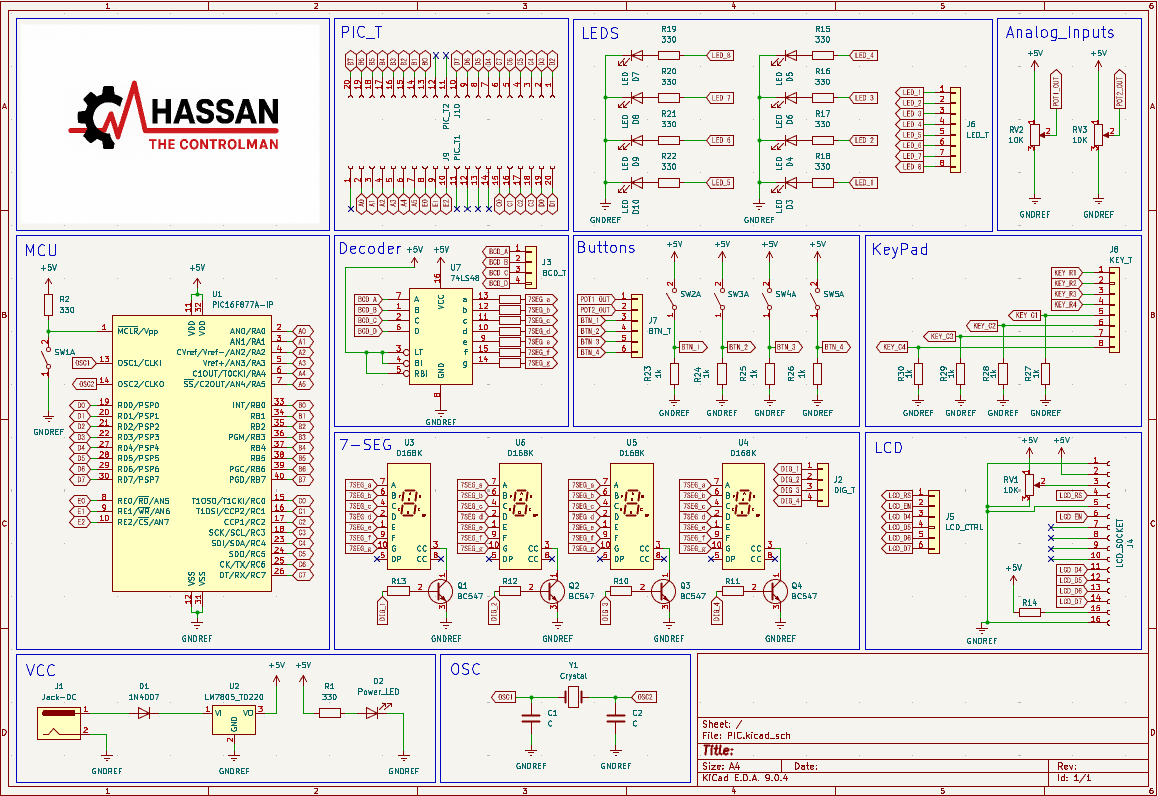

EduBoard PIC16, from the project README
From the project README

Main components on the EduBoard PIC16

PIC16F877A-IPLM7805_TO220D168K74LS48

EduBoard PIC16 bill of materials (BOM)

72 components, 24 distinct parts.

QtyPartRefs
1
PIC16F877A-IP
U1
1
LM7805_TO220
U2
4
D168K
U3, U4, U5, U6
1
74LS48
U7
4
BC547
Q1, Q2, Q3, Q4
1
Crystal
Y1
1
Jack-DC
J1
1
DIG_T
J2
1
BCD_T
J3
1
LCD_SOCKET
J4
1
LCD_CTRL
J5
1
LED_T
J6
1
BTN_T
J7
1
KEY_T
J8
1
PIC_T1
J9
1
PIC_T2
J10
3
10K
RV1, RV2, RV3
5
SW_DPST_x2
SW1, SW2, SW3, SW4, SW5
1
1N4007
D1
1
Power_LED
D2
Show 4 more
QtyPartRefs
8
LED
D3, D4, D5, D6, D7, D8, D9, D10
2
C
C1, C2
17
330
R1, R2, R3, R4, R5, R6, R7, R8 +9
13
1K
R10, R11, R12, R13, R14, R23, R24, R25 +5

EduBoard PIC16 design files

The KiCad project lives in the hassan-ibn-mustafa/EduBoard_PIC16 repository on GitHub; these links point at the commit this page was built from.

EduBoard PIC16: common questions

What microcontroller does the EduBoard PIC16 use?

The EduBoard PIC16 is built around the PIC16F877A-IP, from the PIC family.

How big is the EduBoard PIC16 PCB?

The EduBoard PIC16 measures 193.5 × 141 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the EduBoard PIC16?

72 components, from 24 distinct parts. The full bill of materials is listed on this page.

Where can I download the EduBoard PIC16 design files?

From the hassan-ibn-mustafa/EduBoard_PIC16 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the EduBoard PIC16 design in my own project?

The repository has no license, so all rights stay with hassan-ibn-mustafa. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the EduBoard PIC16 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug PIC firmware against it before you order a PCB.
