Stm32f103c8t6-devboard

heimdilon·stm32f103c8t6-devboard

Stm32f103c8t6-devboard PCB layout, top view — open source STM32 board by heimdilon

About the Stm32f103c8t6-devboard PCB

Stm32f103c8t6-devboard is an open source STM32 PCB design by heimdilon, published on GitHub. It is a 2-layer board measuring 74.5 × 57.4 mm, with 45 components from 30 distinct parts.

Its main chip is the STM32F103C8T6, from the STM32 family. Other key parts include the AMS1117-3.3, MCP2551-I-SN, TMP112xxDRL and USBLC6-2SC6. By type, the board carries 14 capacitors, 11 resistors, 10 connectors, 5 ICs, 2 diodes and 1 crystal.

It belongs with the dev boards & breakouts and sensors designs in this gallery.

From the project

Custom STM32F103C8T6 development board designed in KiCad and hand-assembled as a prototype.

A custom STM32F103C8T6 development board designed in KiCad and taken through the full prototype workflow: schematic capture, PCB layout, manufacturing output generation, PCB fabrication, component sourcing, hand soldering, and physical assembly.

The board was designed as a compact embedded development platform exposing common STM32 interfaces for firmware experiments, peripheral testing, and hardware bring-up practice.

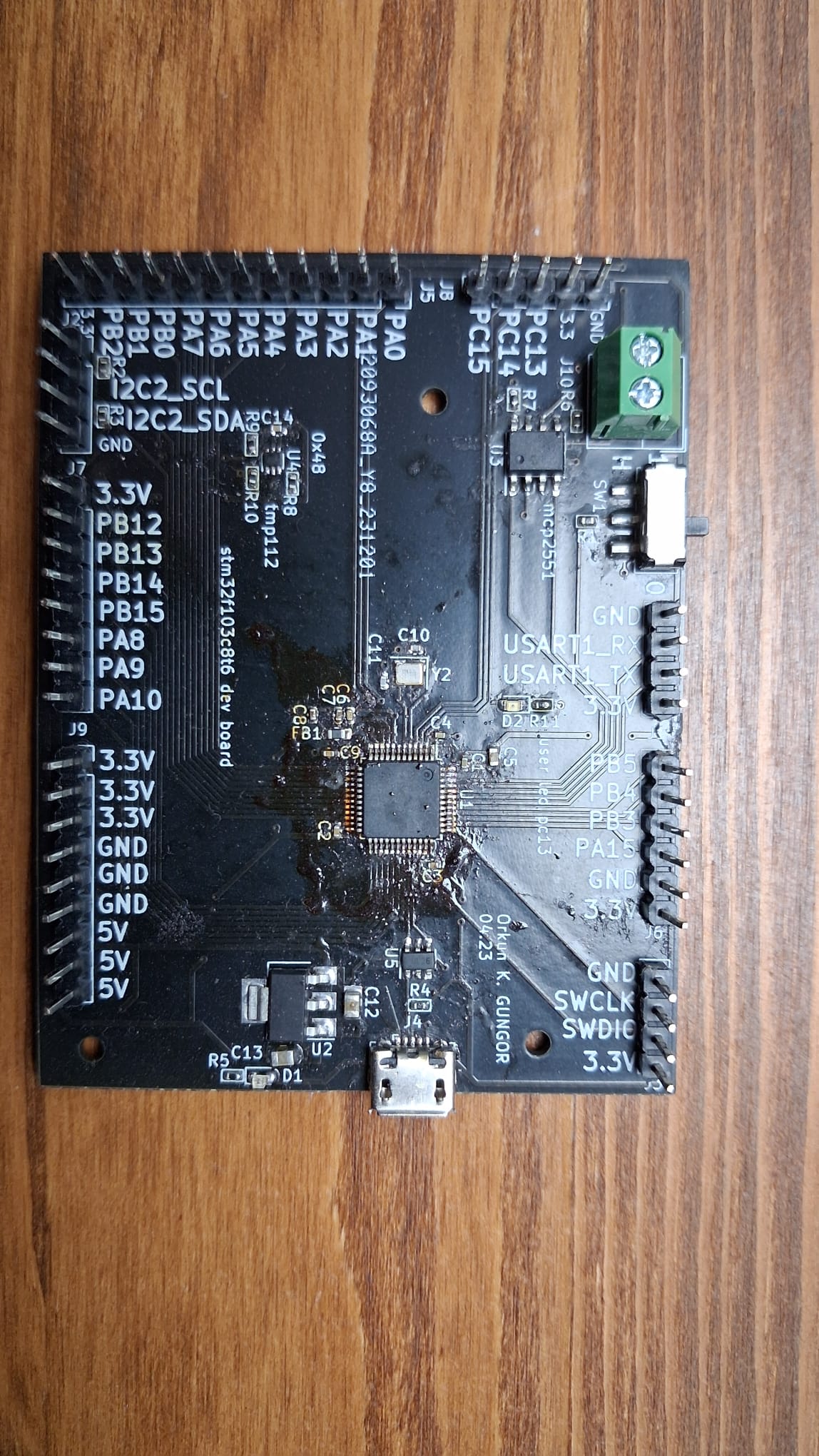

Stm32f103c8t6-devboard, from the project README
From the project README

Main components on the Stm32f103c8t6-devboard

STM32F103C8T6AMS1117-3.3MCP2551-I-SNTMP112xxDRLUSBLC6-2SC6

Stm32f103c8t6-devboard bill of materials (BOM)

45 components, 30 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
STM32F103C8T6
U1
1
AMS1117-3.3
U2
1
MCP2551-I-SN
U3
1
TMP112xxDRL
U4
1
USBLC6-2SC6
U5
1
CRYSTAL_GND24
16mhz
Y2
3
CONN_01X04_PIN
Conn_01x04_Pin
J1, J2, J3
1
USB_B_Micro
J4
1
CONN_01X12_PIN
Conn_01x12_Pin
J5
1
CONN_01X12_PIN
Conn_01x06_Pin
J6
1
CONN_01X03_PIN
Conn_01x08_Pin
J7
1
Conn_01x05_Pin
J8
1
Conn_01x09_Pin
J9
1
Screw_Terminal_01x02
J10
1
SW_SPDT
SW1
2
RED
D1, D2
1
120R
FB1
5
100N
100n
C1, C2, C3, C4, C9
1
10U
10u
C5
1
10N
10n
C6
Show 10 more
QtyPartRefs
2
1u
C7, C8
2
10P
10p
C10, C11
2
22U
22u
C12, C13
1
100n
C14
1
10K
10k
R1
4
1K5
1k5
R2, R3, R4, R5
1
120
R6
1
10k
R7
3
5k
R8, R9, R10
1
1k5
R11

Stm32f103c8t6-devboard design files

The KiCad project lives in the heimdilon/stm32f103c8t6-devboard repository on GitHub; these links point at the commit this page was built from.

Stm32f103c8t6-devboard: common questions

What microcontroller does the Stm32f103c8t6-devboard use?

The Stm32f103c8t6-devboard is built around the STM32F103C8T6, from the STM32 family.

How big is the Stm32f103c8t6-devboard PCB?

The Stm32f103c8t6-devboard measures 74.5 × 57.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Stm32f103c8t6-devboard?

45 components, from 30 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Stm32f103c8t6-devboard design files?

From the heimdilon/stm32f103c8t6-devboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Stm32f103c8t6-devboard design in my own project?

The repository has no license, so all rights stay with heimdilon. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Stm32f103c8t6-devboard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
