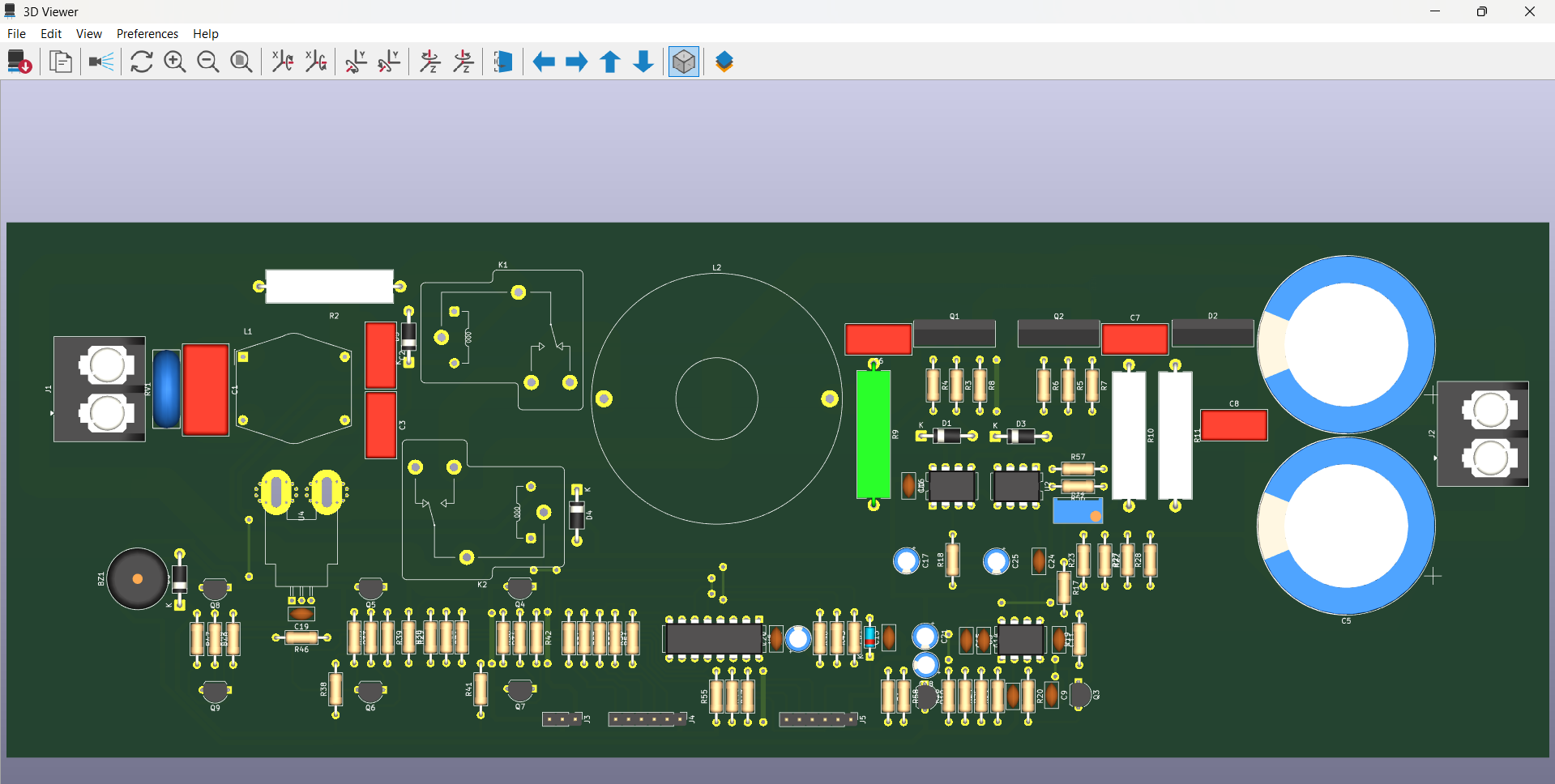

AI Inverter Project PCB layout, top view — open source board by HNadeemTahir

About the AI Inverter Project PCB

AI Inverter Project is an open source PCB design by HNadeemTahir, published on GitHub. It is a 2-layer board measuring 304.6 × 105.7 mm, with 115 components from 51 distinct parts.

Other key parts include the TLP250, MC34072, UC3843_DIP8, ACS758 and PCF8574P. By type, the board carries 58 resistors, 23 capacitors, 10 transistors, 6 diodes, 5 ICs and 5 connectors.

It belongs with the power & battery designs in this gallery.

From the project

NgSpice Digital Twin of a complete off-grid solar power system: H-Bridge inverter (220V/50Hz, PI control, electro-thermal IGBT modeling) and 4kW MPPT boost converter (UC3843 analog control, KCL summing node, gate drive characterization).

NgSpice simulation and KiCad PCB design of a complete off-grid solar power system. The simulation uses manufacturer SPICE models (not ideal switches) and translates dsPIC30F2010 firmware logic into behavioral equations so the control loops can be validated before building hardware.

Two power conversion stages, developed across 10 versions:

1. H-Bridge Inverter — Single-phase 220V/50Hz pure sine wave output using FGY75T120SWD IGBTs, unipolar SPWM, closed-loop PI voltage regulation, electro-thermal monitoring, and hardware fault protection. 2. 4kW MPPT Boost Converter — DC-DC front-end…

AI Inverter Project, from the project README
From the project README

Main components on the AI Inverter Project

TLP250MC34072UC3843_DIP8ACS758PCF8574P

AI Inverter Project bill of materials (BOM)

115 components, 51 distinct parts.

QtyPartRefs
1
TLP250
U1
1
MC34072
U2
1
UC3843_DIP8
U3
1
ACS758
U4
1
PCF8574P
U5
2
Q_NIGBT_CGE
Q1, Q2
5
BC547
Q3, Q6, Q7, Q9, Q10
3
BC337
Q4, Q5, Q8
1
DC_IN
J1
1
Conn_01x02
J2
1
Supply
J3
1
Led Con
J4
1
Control
J5
1
Buzzer
BZ1
2
RAYEX-L90
K1, K2
1
Varistor
RV1
1
5k
RV2
1
Zener
ZD1
3
1N5819
D1, D3, D6
1
D_Schottky_AKA
D2
Show 31 more
QtyPartRefs
2
1N4007
D4, D5
1
L_Coupled
L1
1
L
L2
1
1uf
C1
2
2.2nf
C2, C3
2
470uf
C4, C5
3
1nf
C6, C7, C8
1
470pf
C9
2
10nf
C11, C12
2
100nf
C13, C19
5
0.1uf
C14, C15, C16, C20, C24
3
10uf
C17, C21, C23
1
4.7uf
C18
1
1uf
C25
18
10k
R1, R7, R8, R20, R23, R25, R26, R33 +10
1
50
R2
2
5.6
R3, R5
2
15
R4, R6
3
10
R9, R10, R11
5
20m
R12, R13, R14, R15, R16
5
1k
R17, R35, R36, R49, R57
1
1.3k
R18
1
8.6k
R19
1
100k
R21
3
500k
R22, R27, R28
1
47k
R24
3
470k
R29, R30, R31
1
15k
R32
5
4.7k
R38, R39, R42, R46, R47
1
4.7
R41
5
470
R50, R51, R52, R53, R54

AI Inverter Project design files

The KiCad project lives in the HNadeemTahir/AI_Inverter_Project repository on GitHub; these links point at the commit this page was built from.

AI Inverter Project: common questions

How big is the AI Inverter Project PCB?

The AI Inverter Project measures 304.6 × 105.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the AI Inverter Project?

115 components, from 51 distinct parts. The full bill of materials is listed on this page.

Where can I download the AI Inverter Project design files?

From the HNadeemTahir/AI_Inverter_Project repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the AI Inverter Project design in my own project?

The repository has no license, so all rights stay with HNadeemTahir. Use it as a reference, and ask the author before reusing the design.
