E36-kline onboard

IgnacioPardo·e36-obd·hardware/onboard/e36-kline-onboard.kicad_pcb

E36-kline onboard PCB layout, top view — open source ESP32 board by IgnacioPardo

About the E36-kline onboard PCB

E36-kline onboard is an open source ESP32 PCB design by IgnacioPardo, published on GitHub. It is a 2-layer board measuring 90 × 50 mm, with 39 components from 31 distinct parts.

Its main chip is the ESP32-S3-WROOM-1-N16R8, from the ESP32 family. Other key parts include the E-L9637D013TR and AP63203WU-7. By type, the board carries 12 resistors, 11 capacitors, 4 connectors, 3 ICs, 3 diodes and 2 switches.

From the project

A repository for e36-obd

ESP32-S3-WROOM-1 + L9637D + buck AP63203 + ficha OBD2 macho, todo en una PCB de 90 × 50 mm, dos capas, para mandar a JLCPCB con ensamblado SMD. Reemplaza al conjunto "ELM327 destripado + DevKitC-1 + módulo buck" y a la placa ../kline-frontend.kicadpcb` (que dejaba el MCU afuera).

Estado: DRC 0 errores, 0 desconexiones (KiCad 10.0.5). Quedan solo avisos de serigrafía (referencias de 0603 que pisan pads); JLC los recorta solos.

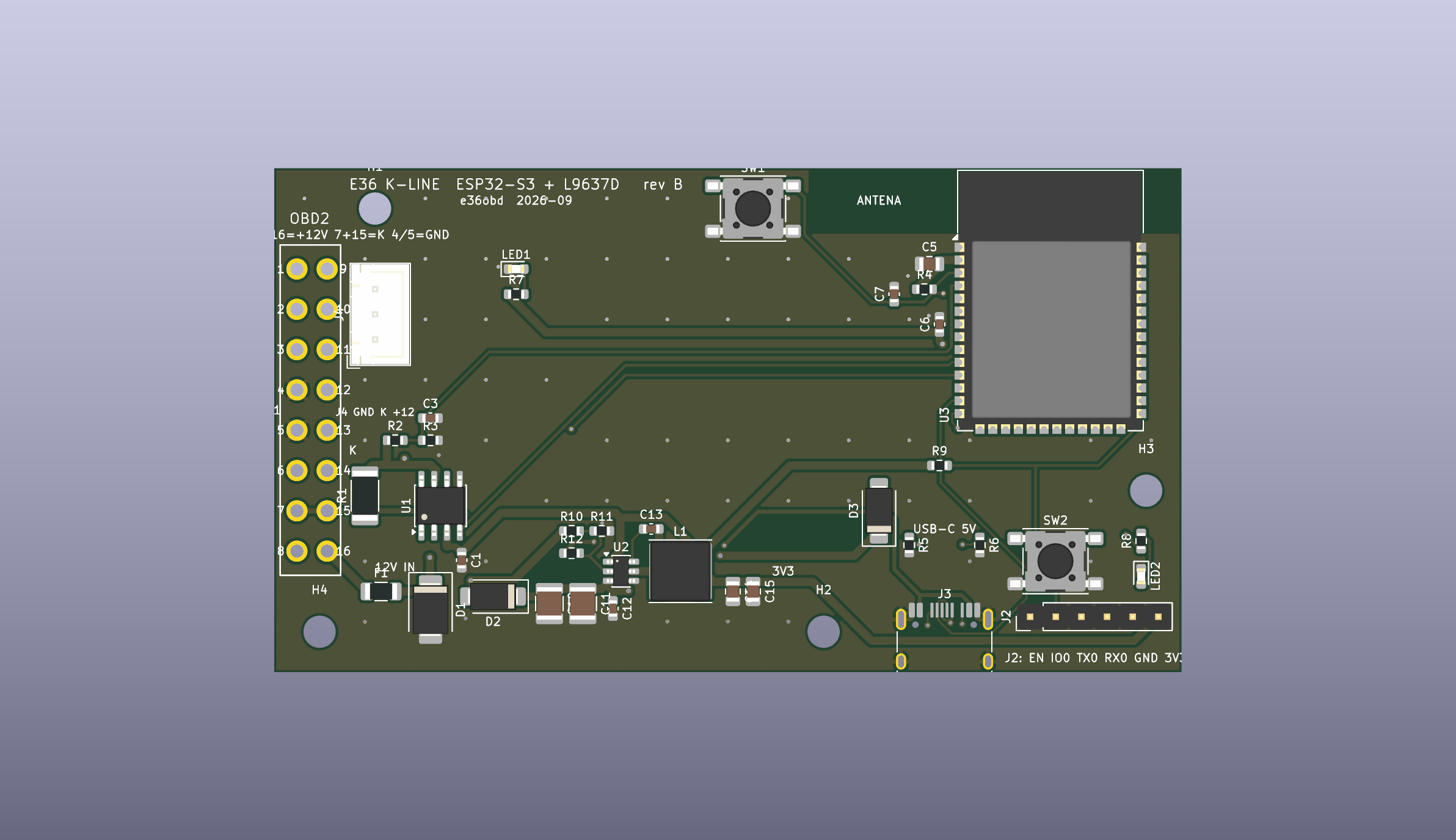

E36-kline onboard, from the project README
From the project README

Main components on the E36-kline onboard

E-L9637D013TRAP63203WU-7ESP32-S3-WROOM-1-N16R8

E36-kline onboard bill of materials (BOM)

39 components, 31 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
E-L9637D013TR
L9637D
U1
1
AP63203WU-7
AP63203
U2
1
ESP32-S3-WROOM-1-N16R8
U3
1
OBD2-M-90
J1
1
DEBUG
J2
1
TYPE-C-31-M-12
USB-C 16P
J3
1
C144394
PIGTAIL
J4
1
C183160
1A 32V
F1
1
C318884
RESET
SW1
1
C318884
BOOT
SW2
1
KT-0603W
PWR blanco
LED1
1
KT-0603R
STATUS rojo
LED2
1
SMBJ24A
D1
2
SS34
D2, D3
1
SWPA6045S4R7MT
4.7uH 3.3A
L1
4
100N
100n
C1, C3, C6, C13
1
10U
10u
C5
1
1u
C7
2
CC1210X7R50V106MN
10u 50V
C10, C11
1
C14663
100n 50V
C12
Show 11 more
QtyPartRefs
2
C45783
22u 10V
C14, C15
1
CR2010F510RE04Z
510R 0.75W
R1
1
100K
100k
R2
1
22K
22k
R3
2
10K
10k
R4, R9
2
5K1
5k1
R5, R6
1
2K2
2k2
R7
1
1k
R8
1
0603WAF3602T5E
36k
R10
1
0603WAF3741T5E
3k74
R11
1
4K7
4k7
R12

E36-kline onboard design files

The KiCad project lives in the IgnacioPardo/e36-obd repository on GitHub; these links point at the commit this page was built from.

E36-kline onboard: common questions

What microcontroller does the E36-kline onboard use?

The E36-kline onboard is built around the ESP32-S3-WROOM-1-N16R8, from the ESP32 family.

How big is the E36-kline onboard PCB?

The E36-kline onboard measures 90 × 50 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the E36-kline onboard?

39 components, from 31 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the E36-kline onboard design files?

From the IgnacioPardo/e36-obd repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the E36-kline onboard design in my own project?

The repository has no license, so all rights stay with IgnacioPardo. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the E36-kline onboard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
