CHORD VCO

ijnekenamay·HAGIWOs_Module·CHORD_VCO/CHORD_VCO.kicad_pcb

CHORD VCO PCB layout, top view — open source AVR/Arduino board by ijnekenamay
Simulate this board

About the CHORD VCO PCB

CHORD VCO is an open source AVR/Arduino PCB design by ijnekenamay, published on GitHub. It is a 2-layer board measuring 30 × 100 mm, with 37 components from 21 distinct parts.

Its main chip is the ARDUINO_NANO_V3.X, from the AVR/Arduino family. Other key parts include the MCP6L02x-xSN. By type, the board carries 13 resistors, 9 capacitors, 8 diodes, 5 connectors, 1 IC and 1 module.

It belongs with the audio designs in this gallery.

From the project

eurorack modular synthesizers projects using Arduino.

！！ Note ！！ - There is no control board in this project. The hardware should be mounted and wired to the panel. See HAGIWO's original schematic for details. - I will get feedback and improve it. - See the HAGIWO website for the Arduino code.

[LINK] HAGIWO/ハギヲ｜ note HAGIWO's Youtube channnel

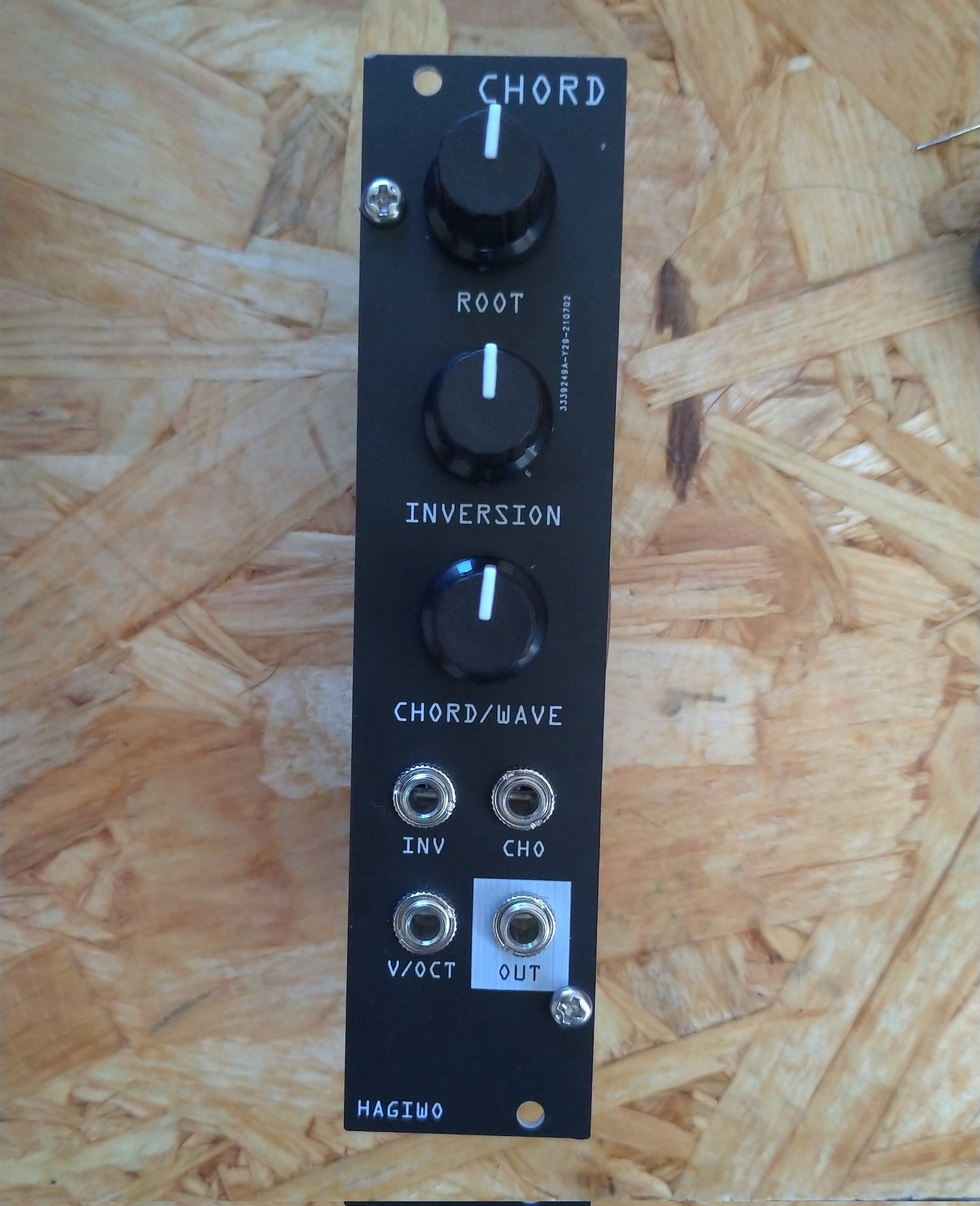

CHORD VCO, from the project README
From the project README

Main components on the CHORD VCO

MCP6L02x-xSNARDUINO_NANO_V3.X

CHORD VCO bill of materials (BOM)

37 components, 21 distinct parts — part numbers from the project's BOM.
