2044vcf control
ijnekenamay·HAGIWOs_Module·V2044_VCF/2044vcf_control.kicad_pcb
About the 2044vcf control PCB
2044vcf control is an open source PCB design by ijnekenamay, published on GitHub. It is a 2-layer board measuring 30 × 100 mm, with 16 components from 14 distinct parts.
By type, the board carries 5 resistors, 4 connectors and 2 capacitors.
It belongs with the audio designs in this gallery.
From the project
eurorack modular synthesizers projects using Arduino.

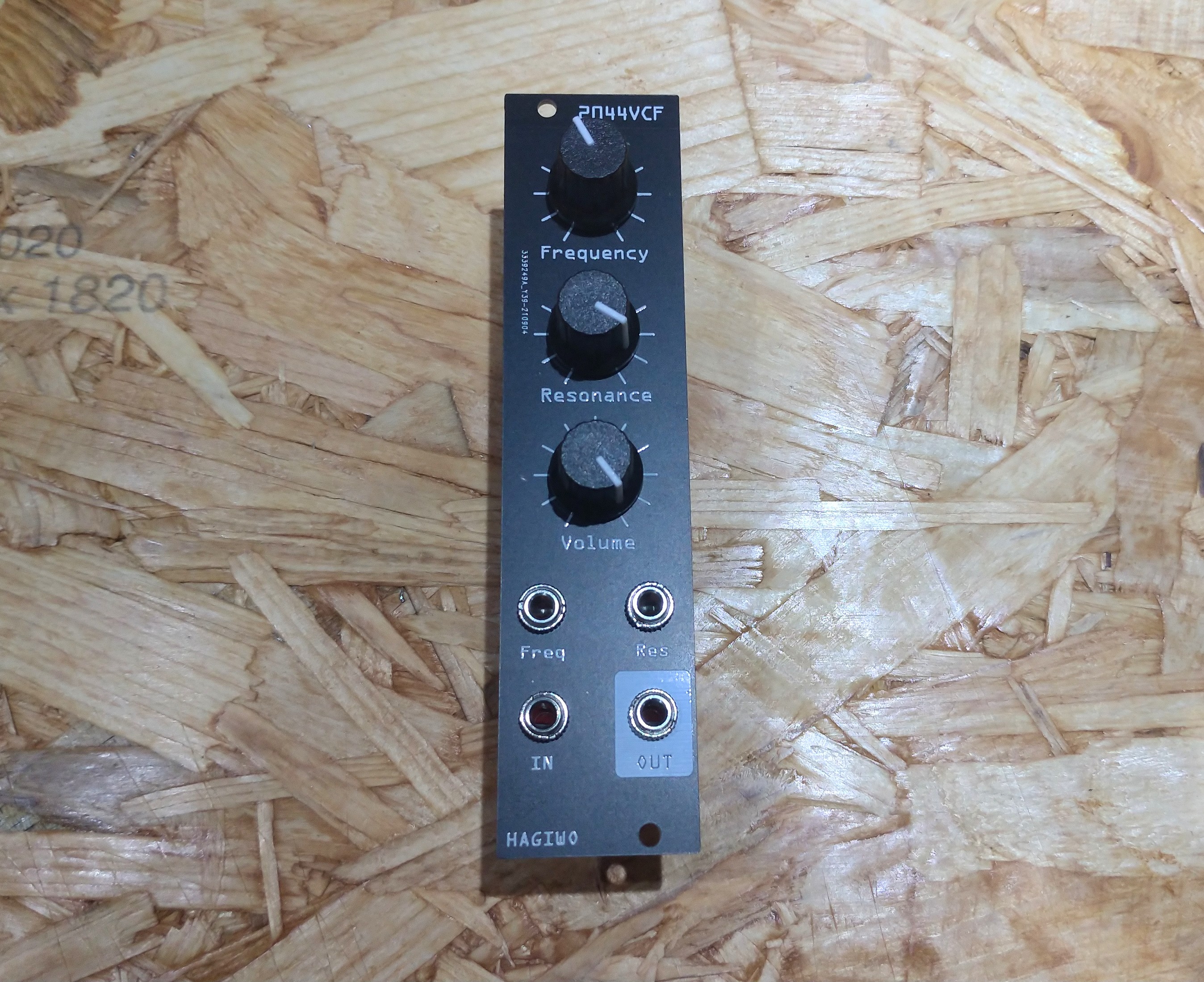

!! Note !! - For the v2044 IC chip itself, I used the Coolaudio reissue version. - The v2044 package is SOP16, and only this part requires surface mount technology. (Might be easier than you think!) - See HAGIWO's original schematic for details. - I will get feedback and improve it.
[LINK] HAGIWO/ハギヲ| note HAGIWO's Youtube channnel

2044vcf control bill of materials (BOM)
16 components, 14 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Audio_IN | Jack_3.5mm_QingPu_WQP-PJ398SM_Vertical_CircularHoles | J1 |
| 1 | RES_CV | Jack_3.5mm_QingPu_WQP-PJ398SM_Vertical_CircularHoles | J2 |
| 1 | OUT | Jack_3.5mm_QingPu_WQP-PJ398SM_Vertical_CircularHoles | J3 |
| 1 | FREQ_CV | Jack_3.5mm_QingPu_WQP-PJ398SM_Vertical_CircularHoles | J4 |
| 1 | PinHeader_1x06_P2.54mm_Vertical | PinHeader_1x06_P2.54mm_Vertical | REF1 |
| 1 | PinHeader_1x07_P2.54mm_Vertical | PinHeader_1x07_P2.54mm_Vertical | REF2 |
| 2 | 100K 100k | Potentiometer_Alpha_RD901F-40-00D_Single_Vertical | RV1, RV2 |
| 1 | 10K 10k | Potentiometer_Alpha_RD901F-40-00D_Single_Vertical | RV5 |
| 2 | 2.2UF 2.2uF | C_Disc_D5.0mm_W2.5mm_P5.00mm | C1, C3 |
| 1 | 10K 10k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R5 |
| 1 | 30K 30k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R6 |
| 1 | 100K 100k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R15 |
| 1 | 33K 33k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R16 |
| 1 | 4.7K 4.7k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R17 |
2044vcf control design files
The KiCad project lives in the ijnekenamay/HAGIWOs_Module repository on GitHub; these links point at the commit this page was built from.
2044vcf control: common questions
How big is the 2044vcf control PCB?
The 2044vcf control measures 30 × 100 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the 2044vcf control?
16 components, from 14 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the 2044vcf control design files?
From the ijnekenamay/HAGIWOs_Module repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the 2044vcf control design in my own project?
The repository has no license, so all rights stay with ijnekenamay. Use it as a reference, and ask the author before reusing the design.
