Pi zero weather hat circuit
About the Pi zero weather hat circuit
Pi zero weather hat circuit is an open source PCB design by irpl, published on GitHub. It is a 2-layer board measuring 65 × 30 mm, with 14 components from 7 distinct parts.
Other key parts include the MCP3008 and BME280. By type, the board carries 3 connectors, 2 ICs and 1 resistor.
It belongs with the sensors and dev boards & breakouts designs in this gallery.
From the project

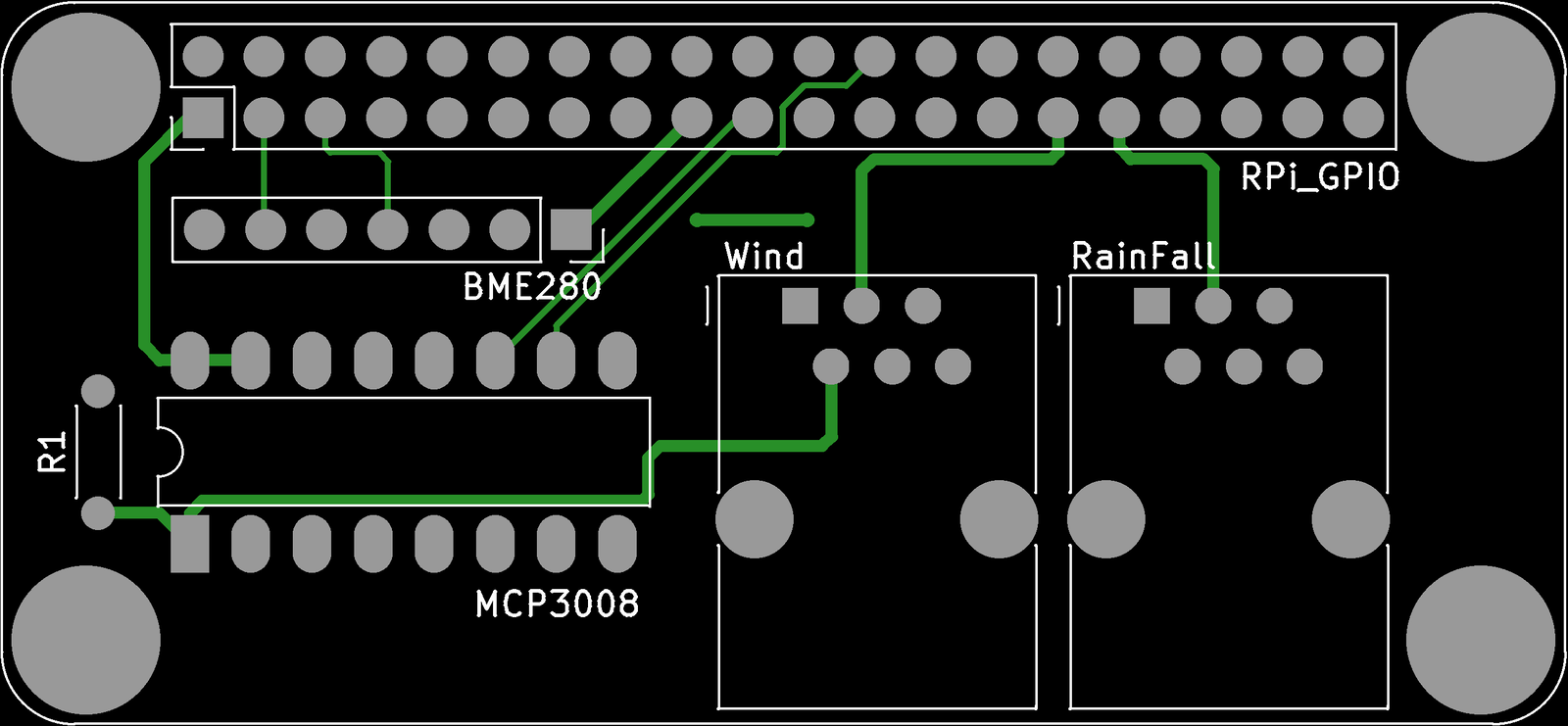

Raspberry Pi Zero weather station HAT: fab-ready Gerbers, plus schematic and layout reconstructed from the copper
Design and manufacturing files for a custom Raspberry Pi Zero HAT that drives a weather station kit. Fabricated November 2020.
The board reads temperature and humidity from a BME280, and interfaces the kit's outdoor sensors — a wind vane, an anemometer, and a tipping-bucket rain gauge — through two RJ11/RJ12 jacks. Because the Pi has no analogue inputs, an MCP3008 ADC on the Pi's SPI bus reads the wind vane's resistive output.
Main components on the Pi zero weather hat circuit
Pi zero weather hat circuit bill of materials (BOM)
14 components, 7 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MCP3008 | U1 | |
| 1 | BME280 | U2 | |
| 1 | RPi_GPIO | J1 | |
| 1 | Wind | J2 | |
| 1 | RainFall | J3 | |
| 8 | — | H1, H2, H3, H4, H5, H6, H7, H8 | |
| 1 | 5k | R1 |
Pi zero weather hat circuit design files
The KiCad project lives in the irpl/pi-zero-weather-hat-circuit repository on GitHub; these links point at the commit this page was built from.
Pi zero weather hat circuit: common questions
How big is the Pi zero weather hat circuit?
The Pi zero weather hat circuit measures 65 × 30 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Pi zero weather hat circuit?
14 components, from 7 distinct parts. The full bill of materials is listed on this page.
Where can I download the Pi zero weather hat circuit design files?
From the irpl/pi-zero-weather-hat-circuit repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Pi zero weather hat circuit design in my own project?
The repository has no license, so all rights stay with irpl. Use it as a reference, and ask the author before reusing the design.
