About the Rp2040 PCB

Rp2040 is an open source RP2040/RP2350 PCB design by IslamHUFE, published on GitHub under the MIT license. It is a 4-layer board measuring 48.1 × 41.6 mm, with 32 components from 17 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the NCP1117-1.5_SOT223, TPD4E05U06DQA and W25Q128JVS. By type, the board carries 16 capacitors, 7 resistors, 4 ICs, 4 connectors and 1 crystal.

From the project

RP design with rp2040

A custom development board built around the Raspberry Pi RP2040 microcontroller.

This project is a personal PCB design exercise based on the official RP2040 hardware-design reference material. The goal was to translate the reference design into a complete, organized KiCad project and develop a practical DevKit-style board around the RP2040.

The board was designed from the RP2040 reference design with attention to the complete hardware implementation rather than treating the microcontroller as a standalone component. The repository contains the KiCad schematic and PCB layout, supporting…

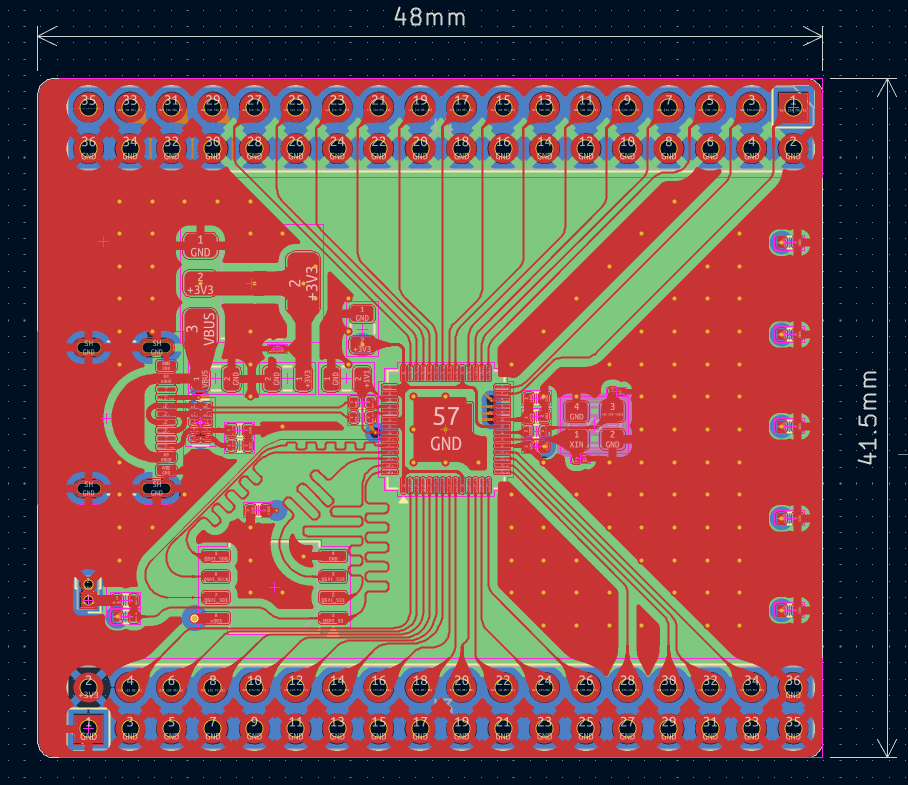

Rp2040, from the project README — From the project README

Main components on the Rp2040

NCP1117-1.5_SOT223 TPD4E05U06DQA W25Q128JVS RP2040

Rp2040 bill of materials (BOM)

32 components, 17 distinct parts.

Qty	Part	Footprint	Refs
1	NCP1117-1.5_SOT223	SOT-223-3_TabPin2	U1
1	TPD4E05U06DQA	USON-10_2.5x1.0mm_P0.5mm	U2
1	W25Q128JVS	SOIC-8_5.3x5.3mm_P1.27mm	U3
1	RP2040	QFN-56-1EP_7x7mm_P0.4mm_EP3.2x3.2mm	U4
1	ABM8-272-T3	Crystal_SMD_Abracon_ABM8G-4Pin_3.2x2.5mm	Y1
1	Conn_01x02_Pin	PinHeader_1x02_P1.00mm_Vertical	J1
1	USB_C_Receptacle_USB2.0_16P	USB_C_Receptacle_GCT_USB4105-xx-A_16P_TopMnt_Horizontal	J2
2	Conn_02x18_Odd_Even	PinHeader_2x18_P2.54mm_Vertical	J3, J4
2	10u	C_0805_2012Metric	C1, C2
2	15p	C_01005_0402Metric	C3, C4
1	100n	C_01005_0402Metric	C5
9	100n	C_0402_1005Metric	C6, C7, C9, C11, C12, C13, C14, C15 +1
2	1u	C_0805_2012Metric	C8, C10
2	5.1k	R_0402_1005Metric	R1, R2
2	1k	R_0402_1005Metric	R3, R4
1	DNF	R_0402_1005Metric	R5
2	27	R_0402_1005Metric	R6, R7

Rp2040 design files

The KiCad project lives in the IslamHUFE/rp2040 repository on GitHub; these links point at the commit this page was built from.

LayoutRS/RS.kicad_pcb
SchematicRS/RS.kicad_sch

Rp2040: common questions

What microcontroller does the Rp2040 use?

The Rp2040 is built around the RP2040, from the RP2040/RP2350 family.

How big is the Rp2040 PCB?

The Rp2040 measures 48.1 × 41.6 mm, has 4 copper layers and is 0.61 mm thick.

How many components are on the Rp2040?

32 components, from 17 distinct parts. The full bill of materials is listed on this page.

Where can I download the Rp2040 design files?

From the IslamHUFE/rp2040 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Rp2040 design in my own project?

Yes, under the terms of its MIT license, which IslamHUFE chose for the repository.
