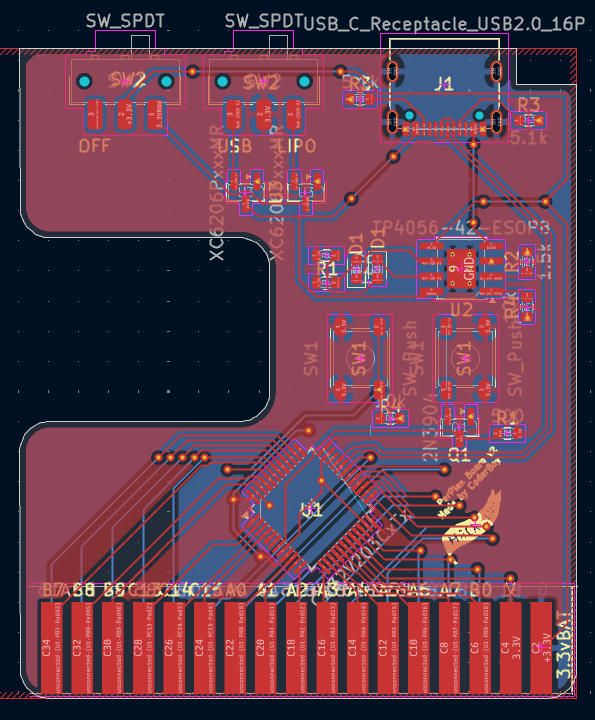

Plex-Console-Stage-1
About the Plex-Console-Stage-1 PCB
Plex-Console-Stage-1 is an open source RISC-V PCB design by itsThatCoderBoy, published on GitHub under the Unlicense license. It is a 2-layer board measuring 46.3 × 54 mm, with 13 components from 12 distinct parts.
Its main chip is the CH32V203C8T6, from the RISC-V family. Other key parts include the TP4056-42-ESOP8 and XC6206P302MR-G. By type, the board carries 5 resistors, 3 ICs, 2 switches, 1 transistor, 1 connector and 1 diode.
It belongs with the dev boards & breakouts and power & battery designs in this gallery.
From the project
A small devboard that will be used for emulation!
Thank you so much to Hack Club and Forge for making this whole thing possible! This really is an amazing oppurtunity.
https://github.com/user-attachments/assets/fe2d55e1-1f7b-49ab-ab0b-663dc05e2e7f
https://github.com/user-attachments/assets/89aea018-e0ea-4a9d-9f60-57c4afef2afe
https://github.com/user-attachments/assets/4f556e5a-54bf-4c0b-9238-5e6fd982241c
Main components on the Plex-Console-Stage-1
Plex-Console-Stage-1 bill of materials (BOM)
13 components, 12 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CH32V203C8T6 CH32V203CxTx | LQFP-48_7x7mm_P0.5mm | U1 |
| 1 | TP4056-42-ESOP8 | SOIC-8-1EP_3.9x4.9mm_P1.27mm_EP2.41x3.3mm_ThermalVias | U2 |
| 1 | XC6206P302MR-G XC6206PxxxMR | SOT-23 | U3 |
| 1 | 2N3904 | SOT-23 | Q1 |
| 1 | USB_C_Receptacle_USB2.0_16P | USB_C_Receptacle_G-Switch_GT-USB-7010ASV | J1 |
| 1 | SW_Push | SW_SPST_PTS647_Sx38 | SW1 |
| 1 | SW_SPDT | SW_SPDT_CK_JS102011SAQN | SW2 |
| 1 | LED | D_0603_1608Metric | D1 |
| 1 | 500 | R_0603_1608Metric | R1 |
| 1 | 1.5k | R_0603_1608Metric | R2 |
| 2 | 5.1k | R_0603_1608Metric | R3, R13 |
| 1 | 10k | R_0603_1608Metric | R4 |
Plex-Console-Stage-1 design files
The KiCad project lives in the itsThatCoderBoy/Plex-Console-Stage-1 repository on GitHub; these links point at the commit this page was built from.
Plex-Console-Stage-1: common questions
What microcontroller does the Plex-Console-Stage-1 use?
The Plex-Console-Stage-1 is built around the CH32V203C8T6, from the RISC-V family.
How big is the Plex-Console-Stage-1 PCB?
The Plex-Console-Stage-1 measures 46.3 × 54 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Plex-Console-Stage-1?
13 components, from 12 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Plex-Console-Stage-1 design files?
From the itsThatCoderBoy/Plex-Console-Stage-1 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Plex-Console-Stage-1 design in my own project?
Yes, under the terms of its Unlicense license, which itsThatCoderBoy chose for the repository.
Can I test firmware for the Plex-Console-Stage-1 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RISC-V firmware against it before you order a PCB.
