FPL marked PCB layout, top view — open source FPGA board by jacobjuneau6

About the FPL marked PCB

FPL marked is an open source FPGA PCB design by jacobjuneau6, published on GitHub under the MIT license. It is a 4-layer board measuring 100 × 99.8 mm, with 60 components from 28 distinct parts.

Its main chip is the LFE5U-25F-6BG256C, from the FPGA family. Other key parts include the LAN8720A-CP-TR, LD1117S12CTR, S80KS5123GABHV020, CP2102N-A02-GQFN24R and W25Q128JVSIQ TR. By type, the board carries 23 resistors, 15 connectors, 6 ICs, 6 capacitors, 2 crystals and 2 switches.

It belongs with the usb & debug tools designs in this gallery.

From the project

FPL is a FPGA based board that runs linux and provides many digital interfaces.

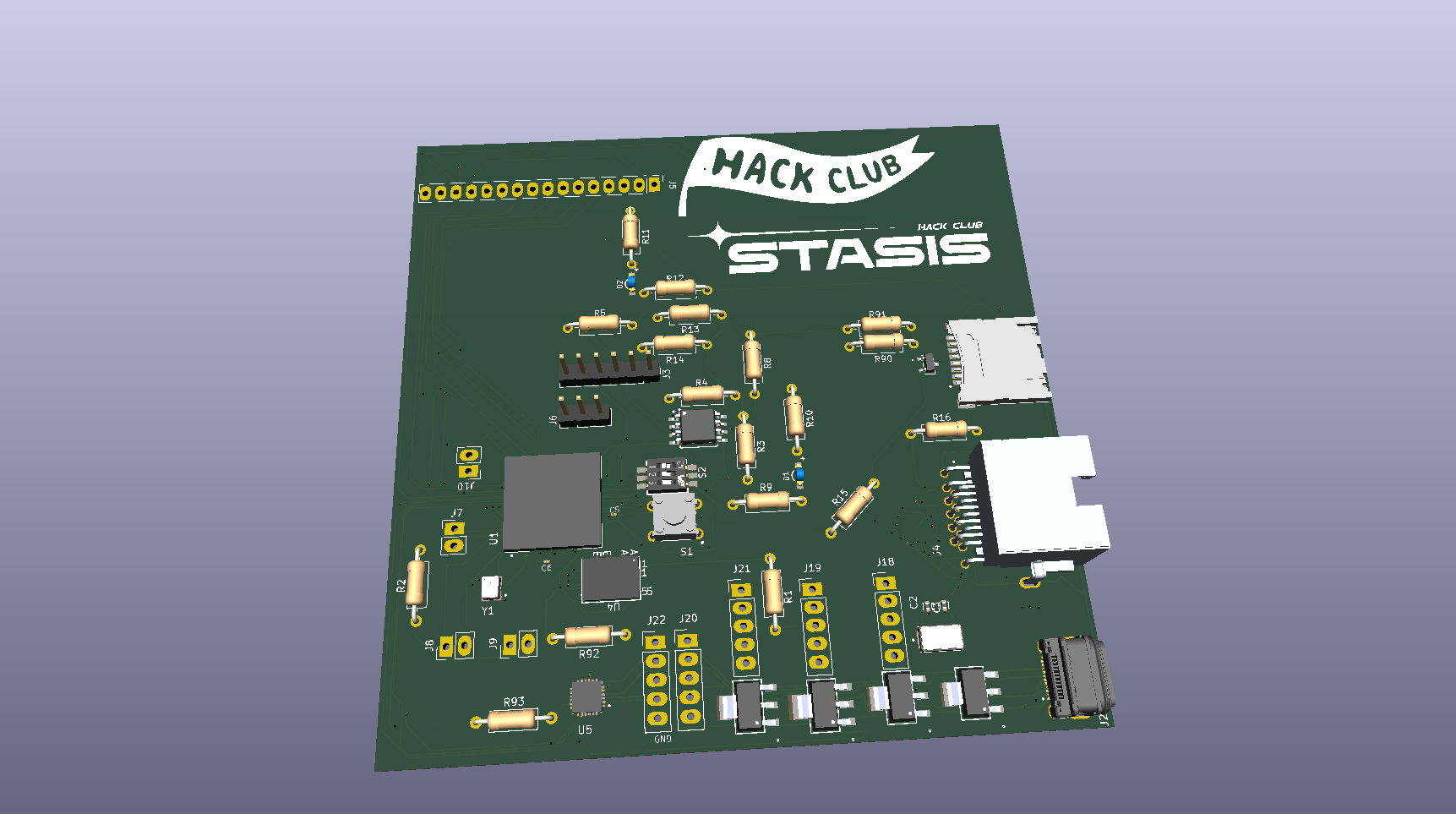

FPL marked, from the project README
From the project README

Main components on the FPL marked

LFE5U-25F-6BG256CLAN8720A-CP-TRLD1117S12CTRS80KS5123GABHV020CP2102N-A02-GQFN24RW25Q128JVSIQ TR

FPL marked bill of materials (BOM)

60 components, 28 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
LFE5U-25F-6BG256C
U1
1
LAN8720A-CP-TR
U2
1
LD1117S12CTR
U3
1
S80KS5123GABHV020
U4
1
CP2102N-A02-GQFN24R
U5
1
W25Q128JVSIQ TR
U7
1
BSS84PH6327XTSA2
Q1
1
ASE-25.000MHZ-LC-T
Y1
1
ECS-250-18-23A-EN-TR
Y2
1
DM3CS-SF
J1
1
CX90BW1-24P1
J2
1
PINHD_1x6_Male
J3
1
2041411-1
J4
1
PINHD_1x16_Male
J5
1
PINHD_1x3_Male
J6
4
PINHD_1x2_Male
J7, J8, J9, J10
5
PINHD_1x5_Male
J18, J19, J20, J21, J22
1
LD1117S33CTR
CR1
1
LD1117S25CTR
CR2
1
LD1117S18TR
CR3
Show 8 more
QtyPartRefs
1
B3F-1000
S1
1
416131160803
S2
2
WL-SMSW_1204_A
D1, D2
4
GRM022D80G104ME15L
C1, C4, C5, C6
2
CC0402JRNPO9BN220
C2, C3
18
10k
R1, R2, R3, R4, R5, R8, R9, R10 +10
2
RC0402FR-075K1L
R6, R7
3
RC0402JR-074K7L
R87, R88, R89

FPL marked design files

The KiCad project lives in the jacobjuneau6/FPL repository on GitHub; these links point at the commit this page was built from.

FPL marked: common questions

What microcontroller does the FPL marked use?

The FPL marked is built around the LFE5U-25F-6BG256C, from the FPGA family.

How big is the FPL marked PCB?

The FPL marked measures 100 × 99.8 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the FPL marked?

60 components, from 28 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the FPL marked design files?

From the jacobjuneau6/FPL repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the FPL marked design in my own project?

Yes, under the terms of its MIT license, which jacobjuneau6 chose for the repository.

Can I test firmware for the FPL marked without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug FPGA firmware against it before you order a PCB.
