Ultraterm nobites

jamdotjar·ULTRATERM·PCB/ultraterm/ultraterm-nobites.kicad_pcb

Ultraterm nobites PCB layout, top view — open source ESP32 board by jamdotjar

About the Ultraterm nobites PCB

Ultraterm nobites is an open source ESP32 PCB design by jamdotjar, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 68 × 65.6 mm, with 11 components from 9 distinct parts.

Its main chip is the XIAO-ESP32-S3-SMD, from the ESP32 family. Other key parts include the LM809. By type, the board carries 5 connectors, 4 switches and 2 ICs.

It belongs with the iot & wireless and audio designs in this gallery.

From the project

A portable bluetooth music player based on ULTRAKILL

ULTRATERM is a miniature replica of an ULTRAKILL settings terminal ( like the one used in cybergrind ), that acts as a bluetooth audio player.

The terminal sits at around 125mm tall, with a 57x104mm footprint. It was designed to look cool, be fairly accurate, and act as a (mostly) stand alone device. It features a: - 2.8" TFT display - Touchscreen + 3 physical buttons - A 2000mAh battery - Bluetooth headphone support - USB-C storage interface - Removable SD card storage ( and a custom microSD card adapter ) The case is designed to be entirely 3D printable, and assembled without adhesive or…

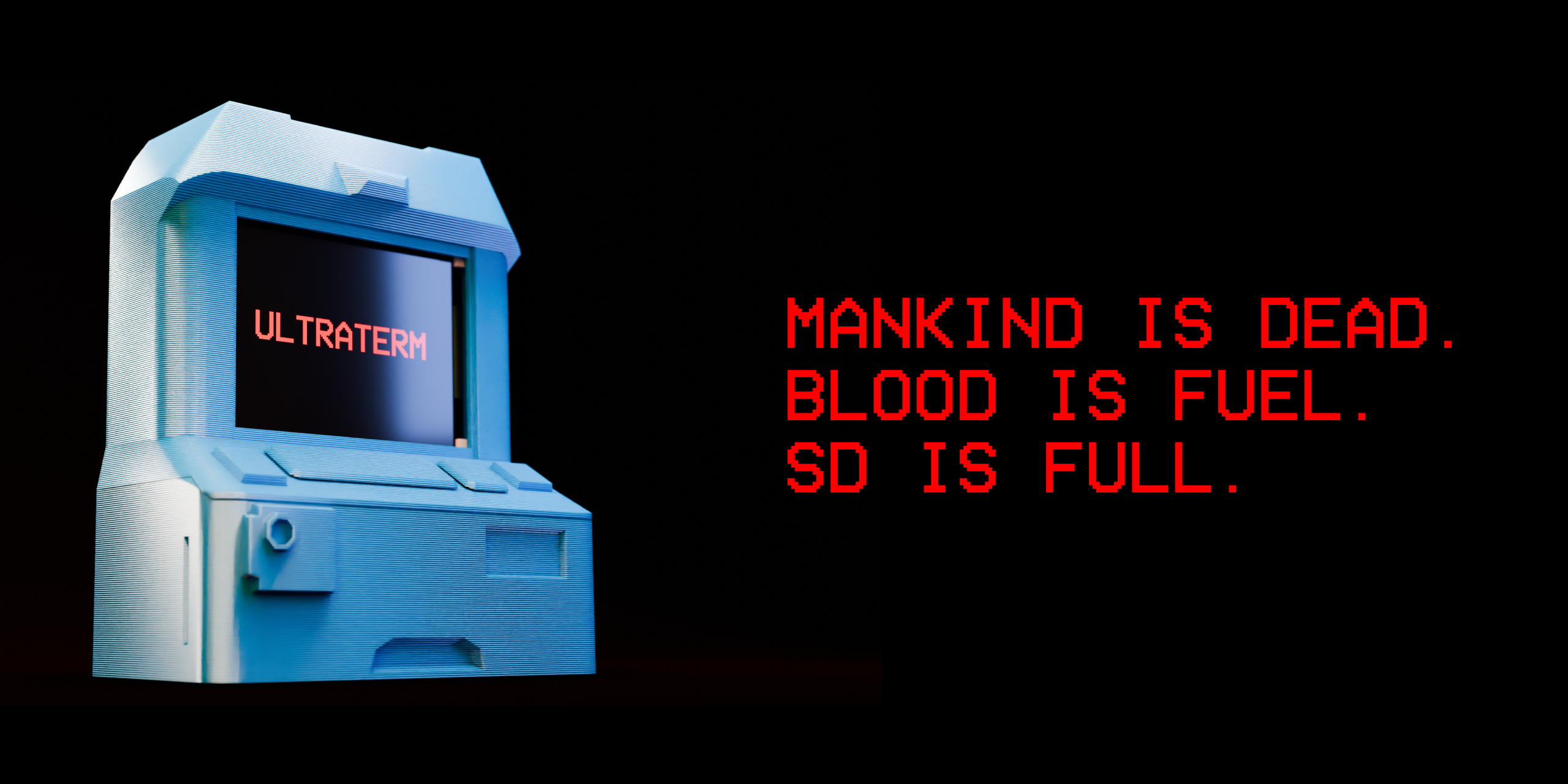

Ultraterm nobites, from the project README
From the project README

Main components on the Ultraterm nobites

Ultraterm nobites bill of materials (BOM)

11 components, 9 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
XIAO-ESP32-S3-SMD
U1
1
LM809
U2
1
ILI9341
J1
1
Battery_plug
J2
1
SD_Card_Receptacle
J3
1
SD_Card_Device
J4
1
Micro_SD_Card
J5
3
SW_Push
SW1, SW2, SW3
1
SW_SPST
SW4

Ultraterm nobites design files

The KiCad project lives in the jamdotjar/ULTRATERM repository on GitHub; these links point at the commit this page was built from.

Ultraterm nobites: common questions

What microcontroller does the Ultraterm nobites use?

The Ultraterm nobites is built around the XIAO-ESP32-S3-SMD, from the ESP32 family.

How big is the Ultraterm nobites PCB?

The Ultraterm nobites measures 68 × 65.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Ultraterm nobites?

11 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Ultraterm nobites design files?

From the jamdotjar/ULTRATERM repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Ultraterm nobites design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which jamdotjar chose for the repository.

Can I test firmware for the Ultraterm nobites without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
