Funkyboi PCB layout, top view — open source RP2040/RP2350 board by Jameswill-Winsock

About the Funkyboi PCB

Funkyboi is an open source RP2040/RP2350 PCB design by Jameswill-Winsock, published on GitHub. It is a 4-layer board measuring 51 × 30 mm, with 51 components from 28 distinct parts.

Its main chip is the RP2350B, from the RP2040/RP2350 family. Other key parts include the W25Q128JVPIQ, ME4055, ME6211 and FLASH or PSRAM. By type, the board carries 19 capacitors, 11 resistors, 9 connectors, 5 ICs, 2 switches and 2 diodes.

From the project

a funky chonky handheld gba clone

he's a work in progress, please bear with him

yes i know the elephant in the room is the big red cross marks they're marked do not populate because i want to leave the headers alone until i need them and for the actual parts that'll be needed i'll hand solder what i can

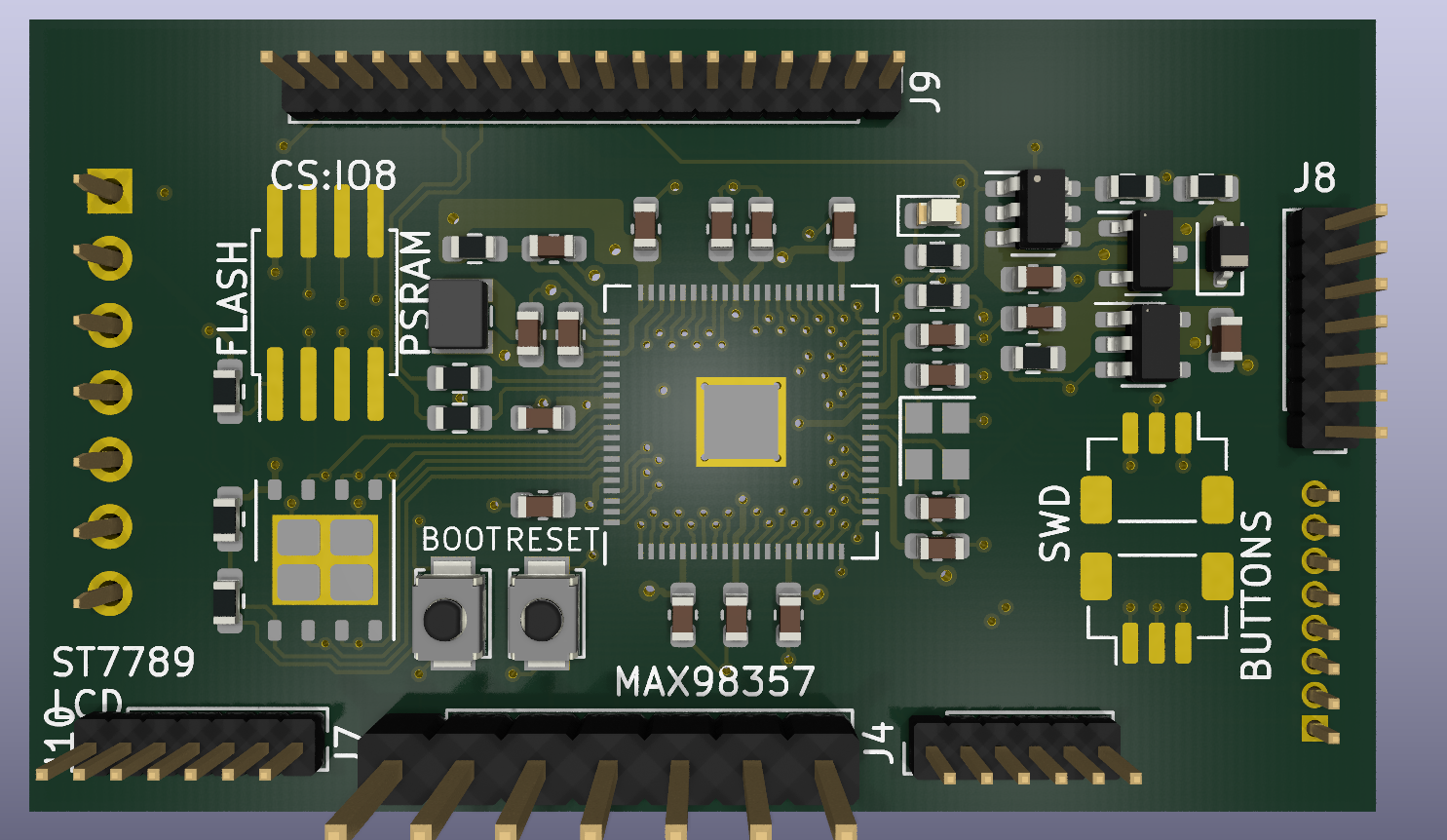

Funkyboi, from the project README
From the project README

Main components on the Funkyboi

W25Q128JVPIQME4055ME6211FLASH or PSRAMRP2350B

Funkyboi bill of materials (BOM)

51 components, 28 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
W25Q128JVPIQ
U1
1
ME4055
U2
1
ME6211
U3
1
FLASH or PSRAM
U4
1
RP2350B
U5
1
BSS84
Q1
1
CM4012M00012001
Y1
1
CONN_01X10
BUTTONS
J1
1
ST7789
J2
1
CONN_01X10
Conn_01x06
J4
1
C7433439
Conn_Pi_SWD
J5
1
C7433439
Conn_Pi_UART
J6
1
LCD_ST7789
MAX98357
J7
1
I2S_AUDIO
Conn_01x07
J8
1
CONN_01X02
Conn_01x18
J9
1
CONN_01X01
Conn_01x07
J10
1
C561514
SW_RESET
SW1
1
C561514
SW_BOOTSEL
SW2
1
C114023
D_Schottky_Small
D1
1
LED_CHR
D2
Show 8 more
QtyPartRefs
1
3.3UH
3.3uH
L1
4
10UF
10uF
C1, C2, C3, C16
2
12PF
12pF
C4, C5
11
0.1UF
0.1uF
C6, C7, C8, C9, C10, C11, C13, C15 +3
2
4.7UF
4.7uF
C12, C14
5
100K
R1, R3, R4, R8, R10
3
2K
R2, R5, R9
3
27R
R6, R7, R11

Funkyboi design files

The KiCad project lives in the Jameswill-Winsock/funkyboi repository on GitHub; these links point at the commit this page was built from.

Funkyboi: common questions

What microcontroller does the Funkyboi use?

The Funkyboi is built around the RP2350B, from the RP2040/RP2350 family.

How big is the Funkyboi PCB?

The Funkyboi measures 51 × 30 mm, has 4 copper layers and is 1 mm thick.

How many components are on the Funkyboi?

51 components, from 28 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Funkyboi design files?

From the Jameswill-Winsock/funkyboi repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Funkyboi design in my own project?

The repository has no license, so all rights stay with Jameswill-Winsock. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Funkyboi without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
