Flight-Computer-2025 PCB layout, top view — open source RP2040/RP2350 board by Jhertter

About the Flight-Computer-2025 PCB

Flight-Computer-2025 is an open source RP2040/RP2350 PCB design by Jhertter, published on GitHub. It is a 2-layer board measuring 80 × 90 mm, with 65 components from 30 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the NCP1117-3.3_SOT223, W25Q128JVS, BME280, MPU-9250 and SAM-M8Q-0-10. By type, the board carries 18 capacitors, 13 resistors, 6 ICs, 5 connectors, 3 switches and 3 diodes.

From the project

Documentos y código relevantes para el proyecto

- Hardware design and implementation of the 2025 on board flight computer. - Software used to capture data and transmit it to the ground station.

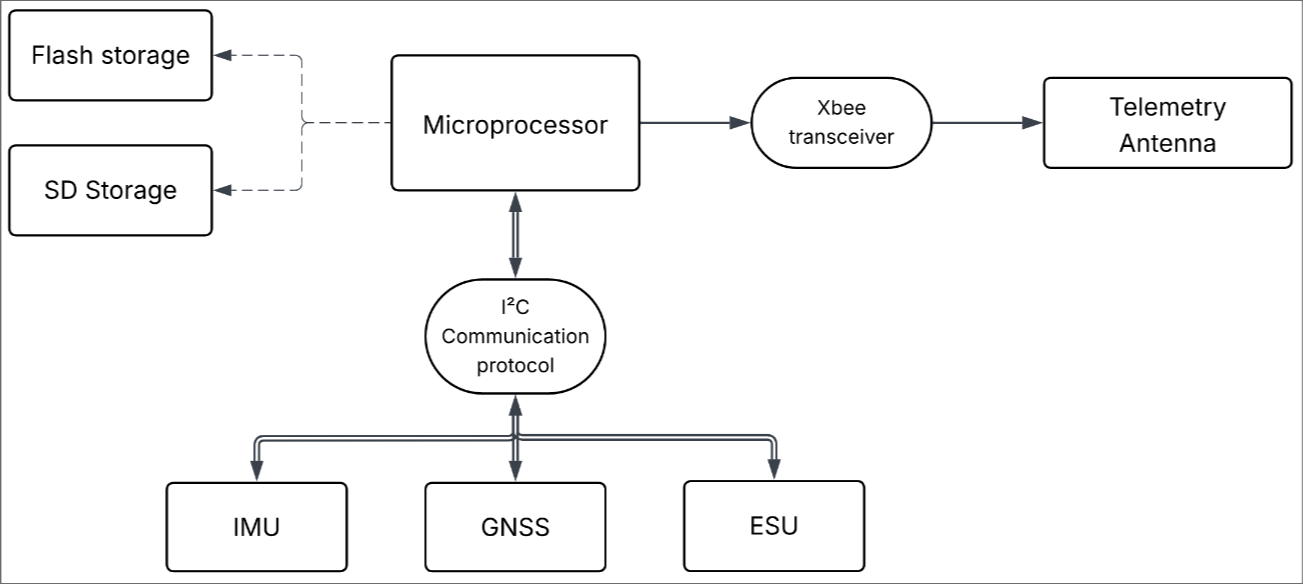

Flight-Computer-2025, from the project README
From the project README

Main components on the Flight-Computer-2025

NCP1117-3.3_SOT223W25Q128JVSRP2040BME280MPU-9250SAM-M8Q-0-10

Flight-Computer-2025 bill of materials (BOM)

65 components, 30 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
NCP1117-3.3_SOT223
U1
1
W25Q128JVS
U2
1
RP2040
U3
1
BME280
U4
1
MPU-9250
U5
1
SAM-M8Q-0-10
U6
1
Crystal
Y1
1
CONNECTOR_2_POL
Connector_2_Pol
J1
1
503398-1892
J2
1
TERMINAL_2
Terminal_2
J4
1
CONNECTOR_3_POL
Connector_3_Pol
J5
1
UJ20-C-H-G-SMT-6-P16
UJ20-C-H-G-SMT-6-P16-TR
J7
4
100n
C_BME_VDD1, C_BME_VDDIO1, C_MPU_REG1, C_VDD_MPU1
3
C
C_SAM_VBCKP1, C_SAM_VCC1, C_SAM_VCCIO1
1
10n
C_VDDIO_MPU1
8
R
R_BL1, R_BL2, R_BME_SCL1, R_BME_SDA1, R_MPU_SCL1, R_MPU_SDA1, R_SAM_SCL1, R_SAM_SDA1
3
PTS810SJK250SMTR LFS
PTS810SJK250SMTR_LFS
S1, S2, S3
3
LED
D1, D2, D3
3
10U
10u
C1, C4, C17
2
15P
15p
C2, C3
Show 10 more
QtyPartRefs
10
100N
100n
C5, C6, C7, C9, C11, C12, C13, C14 +2
2
1u
C8, C10
1
10U
10u
C18
2
1k
R1, R5
1
DNF
R2
2
27
R3, R4
1
150
R
R9
2
150
R
R10, R11
2
R
R12, R13
3
10K
10k
R14, R15, R16

Flight-Computer-2025 design files

The KiCad project lives in the Jhertter/Flight-Computer-2025 repository on GitHub; these links point at the commit this page was built from.

Flight-Computer-2025: common questions

What microcontroller does the Flight-Computer-2025 use?

The Flight-Computer-2025 is built around the RP2040, from the RP2040/RP2350 family.

How big is the Flight-Computer-2025 PCB?

The Flight-Computer-2025 measures 80 × 90 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Flight-Computer-2025?

65 components, from 30 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Flight-Computer-2025 design files?

From the Jhertter/Flight-Computer-2025 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Flight-Computer-2025 design in my own project?

The repository has no license, so all rights stay with Jhertter. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Flight-Computer-2025 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
