About the Ft2232h ice40 PCB

Ft2232h ice40 is an open source PCB design by jkiv, published on GitHub under the CC-BY-NC-4.0 license. It is a 4-layer board measuring 34 × 22.4 mm, with 35 components from 15 distinct parts.

Other key parts include the AP7361C_SOT-89-5 and FT2232H. By type, the board carries 18 capacitors, 10 resistors, 2 ICs, 2 connectors, 1 crystal and 1 diode.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

This project contains various breadboard-compatible breakouts for testing and educational purposes.

This board breaks out the signals required to program a Lattice ice40 FPGA via USB using iceprog.

The ice40hx8k-bg121 breakout board does not contain the circuitry required to program either the on-board FLASH chip, or the FPGA itself.

Typically, a FT2232H is used to provide the interface for programming these devices, e.g. via the iceprog software.

Instead of integrating the rather expensive FT2232H onto each small, ice40 breakout board, this board is inteded to be reused against multiple ice40 breakout boards.

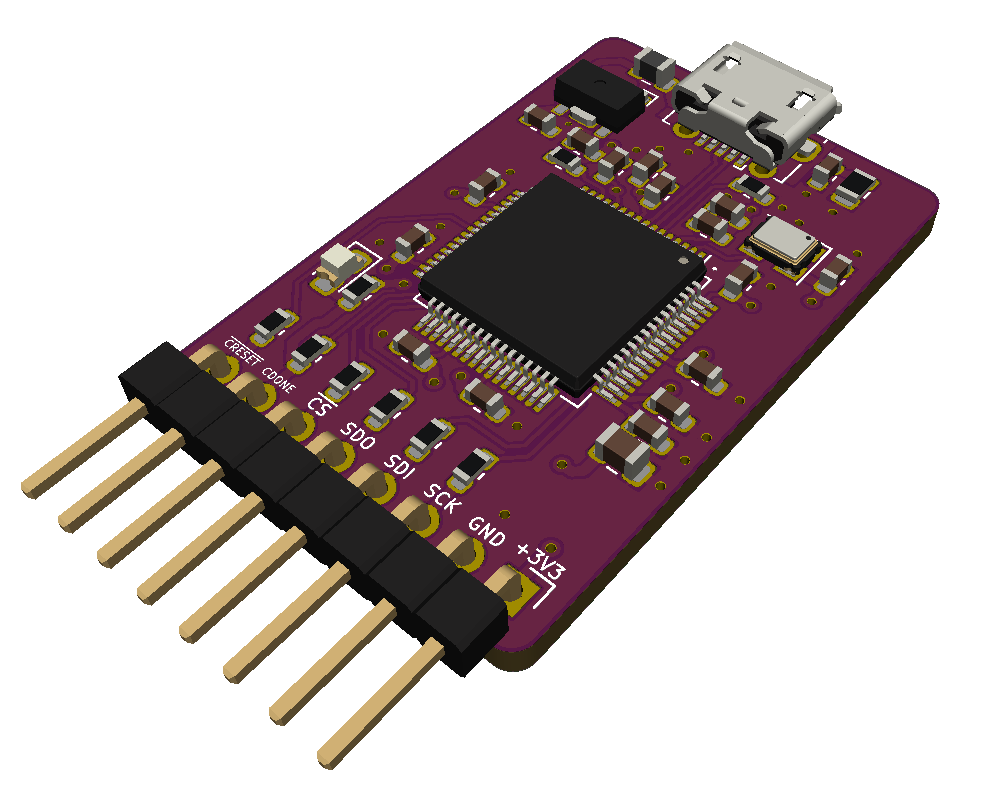

Ft2232h ice40, from the project README
From the project README

Main components on the Ft2232h ice40

AP7361C_SOT-89-5FT2232H

Ft2232h ice40 bill of materials (BOM)

35 components, 15 distinct parts.

QtyPartRefs
1
AP7361C_SOT-89-5
U1
1
FT2232H
U2
1
ASEM1-12.000MHZ
X1
1
USB_B_Micro
J1
1
Conn_01x08
J2
1
CDONE
D1
1
FB
FB1
4
4.7u
C1, C4, C8, C13
1
0.01u
C2
12
0.1u
C3, C5, C6, C7, C9, C10, C11, C14 +4
1
10u
C12
1
100k
R1
1
1k
R2
2
10k
R3, R4
6
22R
R5, R6, R7, R8, R9, R10

Ft2232h ice40 design files

The KiCad project lives in the jkiv/kicad-breakouts repository on GitHub; these links point at the commit this page was built from.

Ft2232h ice40: common questions

How big is the Ft2232h ice40 PCB?

The Ft2232h ice40 measures 34 × 22.4 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Ft2232h ice40?

35 components, from 15 distinct parts. The full bill of materials is listed on this page.

Where can I download the Ft2232h ice40 design files?

From the jkiv/kicad-breakouts repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Ft2232h ice40 design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
