Ice40hx8k bg121 Breakout

jkiv·kicad-breakouts·boards/ice40hx8k-bg121/ice40hx8k-bg121.kicad_pcb

Ice40hx8k bg121 Breakout layout, top view — open source FPGA board by jkiv
Simulate this board

About the Ice40hx8k bg121 Breakout

Ice40hx8k bg121 Breakout is an open source FPGA PCB design by jkiv, published on GitHub under the CC-BY-NC-4.0 license. It is a 4-layer board measuring 22.9 × 48.3 mm, with 55 components from 25 distinct parts.

Its main chip is the iCE40HX8K-BG121(121-Ball_caBGA), from the FPGA family. Other key parts include the AP7361C-33Y5-13, AP7361C-12Y5-13, LE25U20AMB and ASDMB-xxxMHz. By type, the board carries 21 capacitors, 14 resistors, 8 diodes, 5 ICs, 4 connectors and 2 jumpers.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

This project contains various breadboard-compatible breakouts for testing and educational purposes.

This is a breadboardable breakout board for a Lattice iCE40HX8K FPGA.

Four IO banks with 32 exposed IOs 12 + 4 breadboardable IO 8 + 8 IO via 2.54mm headers Eight on-board LEDs (Bank D) Settable VIO for IO Banks A, B, and D. 12-pin PMOD compatible pinout for IO banks B and D. 6-pin PMOD compatible pinout for IO bank C. On-board 2Mbit flash memory. On-board 12MHz clock source. On-board reset button.

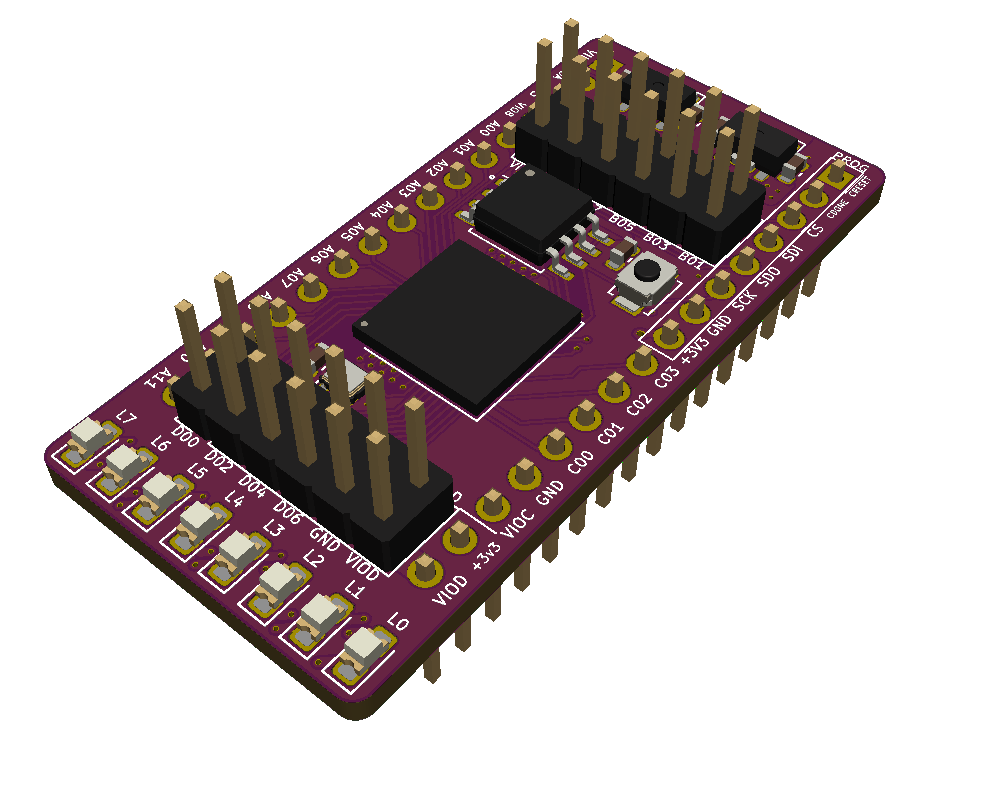

Ice40hx8k bg121 Breakout, from the project README
From the project README

Main components on the Ice40hx8k bg121 Breakout

AP7361C-33Y5-13AP7361C-12Y5-13iCE40HX8K-BG121(121-Ball_caBGA)LE25U20AMBASDMB-xxxMHz

Ice40hx8k bg121 Breakout bill of materials (BOM)

55 components, 25 distinct parts.

QtyPartRefs
1
AP7361C-33Y5-13
U1
1
AP7361C-12Y5-13
U2
1
iCE40HX8K-BG121(121-Ball_caBGA)
U3
1
LE25U20AMB
U4
1
ASDMB-xxxMHz
U5
2
Conn_01x16
J1, J2
2
Conn_02x06_Odd_Even
J3, J4
1
CBSEL1
JP1
1
CBSEL0
JP2
1
B3U-1000P
SW1
1
L7
D3
1
L6
D4
1
L5
D5
1
L4
D6
1
L3
D7
1
L2
D8
1
L1
D9
1
L0
D10
4
4.7uF
C1, C2, C3, C4
15
0.1u
C5, C6, C7, C8, C10, C11, C12, C13 +7
Show 5 more
QtyPartRefs
2
10u
C9, C14
2
10k
R1, R2
8
220R
R3, R4, R5, R6, R7, R8, R9, R10
2
100R
R11, R13
2
1k
R12, R14

Ice40hx8k bg121 Breakout design files

The KiCad project lives in the jkiv/kicad-breakouts repository on GitHub; these links point at the commit this page was built from.

Ice40hx8k bg121 Breakout: common questions

What microcontroller does the Ice40hx8k bg121 Breakout use?

The Ice40hx8k bg121 Breakout is built around the iCE40HX8K-BG121(121-Ball_caBGA), from the FPGA family.

How big is the Ice40hx8k bg121 Breakout?

The Ice40hx8k bg121 Breakout measures 22.9 × 48.3 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Ice40hx8k bg121 Breakout?

55 components, from 25 distinct parts. The full bill of materials is listed on this page.

Where can I download the Ice40hx8k bg121 Breakout design files?

From the jkiv/kicad-breakouts repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Ice40hx8k bg121 Breakout design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.

Can I test firmware for the Ice40hx8k bg121 Breakout without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug FPGA firmware against it before you order a PCB.
