About the EnergyMeter PCB

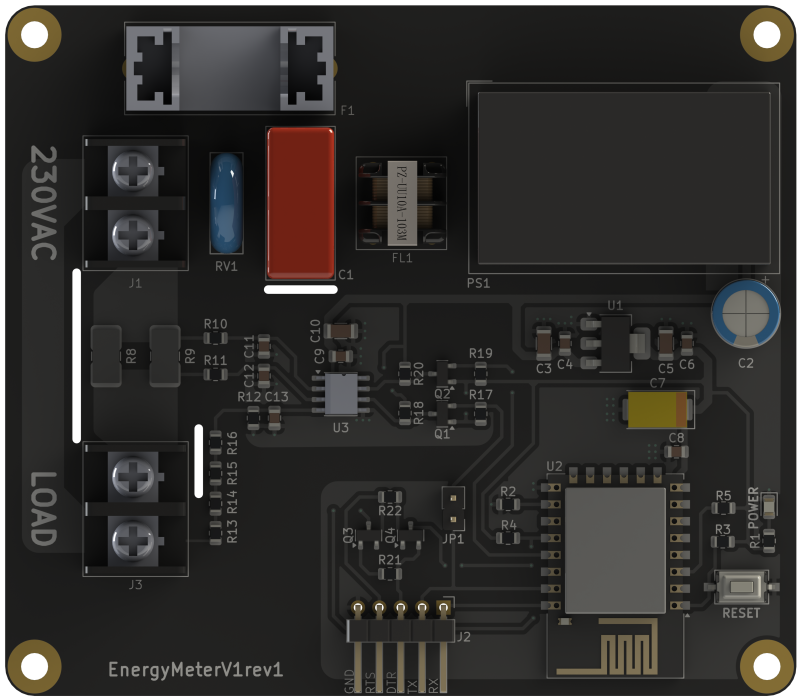

EnergyMeter is an open source ESP8266 PCB design by jkordek1, published on GitHub. It is a 2-layer board measuring 94 × 82 mm, with 66 components from 43 distinct parts.
Its main chip is the ESP-12F, from the ESP8266 family. Other key parts include the AMS1117-3.3, HLW8032, PC817 and AMS1117-5.0. By type, the board carries 25 resistors, 18 capacitors, 6 ICs, 4 diodes, 3 connectors and 2 transistors.
Main components on the EnergyMeter
EnergyMeter bill of materials (BOM)
66 components, 43 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AMS1117-3.3 LNK304G | PowerIntegrations_SMD-8B | U1 |
| 1 | ESP-12F | ESP-12E | U2 |
| 1 | HLW8032 | SOP-8_3.9x4.9mm_P1.27mm_custom | U3 |
| 2 | PC817 | DIP-4_W7.62mm | U4, U5 |
| 1 | AMS1117-5.0 | SOT-223-3_TabPin2 | U6 |
| 2 | S8050-SOT23 | SOT-23 | Q3, Q4 |
| 1 | C707824 Screw_Terminal_AC | KF7.62-2P | J1 |
| 1 | CONN_01X05 Conn_01x05 | PinHeader_1x05_P2.54mm_Vertical | J2 |
| 1 | C707824 Screw_Terminal_LOAD | KF7.62-2P | J3 |
| 1 | C268204 Fuse socket | FH1-200CK-G | F1 |
| 1 | UU9.8-103L0301 | YDUU9.8-103L0301 | FL1 |
| 1 | HLK-PM01 HLK-PM03 | Converter_ACDC_Hi-Link_HLK-PMxx | PS1 |
| 1 | MOV-10D561K | RV_Disc_D12mm_W3.9mm_P7.5mm | RV1 |
| 1 | SW_Push | SW_Tactile_SPST_NO_Straight_CK_PTS636Sx25SMTRLFS | SW1 |
| 1 | SW_SPST | SW_DIP_SPSTx01_Slide_6.7x4.1mm_W6.73mm_P2.54mm_LowProfile_JPin | SW2 |
| 1 | C5879378 RED | LED_0805_2012Metric | D1 |
| 1 | MB6S | TO-269AA | D2 |
| 2 | US1JHE3 | D_SMA | D3, D4 |
| 2 | 1mH | L_Taiyo-Yuden_NR-80xx_HandSoldering | L1, L2 |
| 1 | C93321 100nF X1 440V | C_Rect_L18.0mm_W8.0mm_P15.00mm_FKS3_FKP3 | C1 |
Show 23 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 100U 100uF | CP_Radial_D8.0mm_P3.50mm | C2 |
| 1 | 10U 4u7 / 400V | CP_Elec_8x10 | C3 |
| 1 | 100N 4u7 / 400V | CP_Elec_8x10 | C4 |
| 1 | 10U 100n | C_0805_2012Metric | C5 |
| 1 | 100N 22u / 50V | C_2220_5750Metric_Pad1.97x5.40mm_HandSolder | C6 |
| 1 | C110548 100u tant | CP_EIA-7343-15_Kemet-W | C7 |
| 2 | 100N 100n | C_0805_2012Metric | C8, C9 |
| 1 | 10U 10u | C_1206_3216Metric | C10 |
| 3 | 33N 33n | C_0805_2012Metric | C11, C12, C13 |
| 1 | 100u | C_Elec_10x10.2 | C14 |
| 2 | 100n | C_0805_2012Metric | C15, C16 |
| 2 | 10u | C_1206_3216Metric | C17, C18 |
| 1 | 330R | R_0805_2012Metric | R1 |
| 7 | 10K 10k | R_0805_2012Metric | R2, R3, R4, R5, R18, R21, R22 |
| 4 | 0.004R | R_2512_Shunt | R6, R7, R8, R9 |
| 3 | 1k | R_0805_2012Metric | R10, R11, R12 |
| 4 | 470K 470k | R_0805_2012Metric | R13, R14, R15, R16 |
| 1 | 10K 470R | R_0805_2012Metric | R17 |
| 1 | 10K 2k05 | R_0805_2012Metric | R19 |
| 1 | 10K 13k | R_0805_2012Metric | R20 |
| 1 | 470R | R_0805_2012Metric | R23 |
| 1 | 10k | R_0805_2012Metric | R24 |
| 1 | 3k3 | R_0805_2012Metric | R25 |
EnergyMeter design files
The KiCad project lives in the jkordek1/EnergyMeter repository on GitHub; these links point at the commit this page was built from.
EnergyMeter: common questions
What microcontroller does the EnergyMeter use?
The EnergyMeter is built around the ESP-12F, from the ESP8266 family.
How big is the EnergyMeter PCB?
The EnergyMeter measures 94 × 82 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the EnergyMeter?
66 components, from 43 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the EnergyMeter design files?
From the jkordek1/EnergyMeter repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the EnergyMeter design in my own project?
The repository has no license, so all rights stay with jkordek1. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the EnergyMeter without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP8266 firmware against it before you order a PCB.
