PicoQuorum key, proposal C: USB-C receptacle

jmcpheron·pico-quorum·hardware/key-pcb/key-c-usbc/key-c-usbc.kicad_pcb

PicoQuorum key, proposal C: USB-C receptacle PCB layout, top view — open source board by jmcpheron

About the PicoQuorum key, proposal C: USB-C receptacle PCB

PicoQuorum key, proposal C: USB-C receptacle is an open source PCB design by jmcpheron, published on GitHub under the MIT license. It is a 2-layer board measuring 16 × 36 mm, with 7 components from 5 distinct parts.

Other key parts include the ATECC608C-SSHDA-B and USBLC6-2SC6. By type, the board carries 2 ICs, 2 capacitors, 2 resistors and 1 connector.

From the project

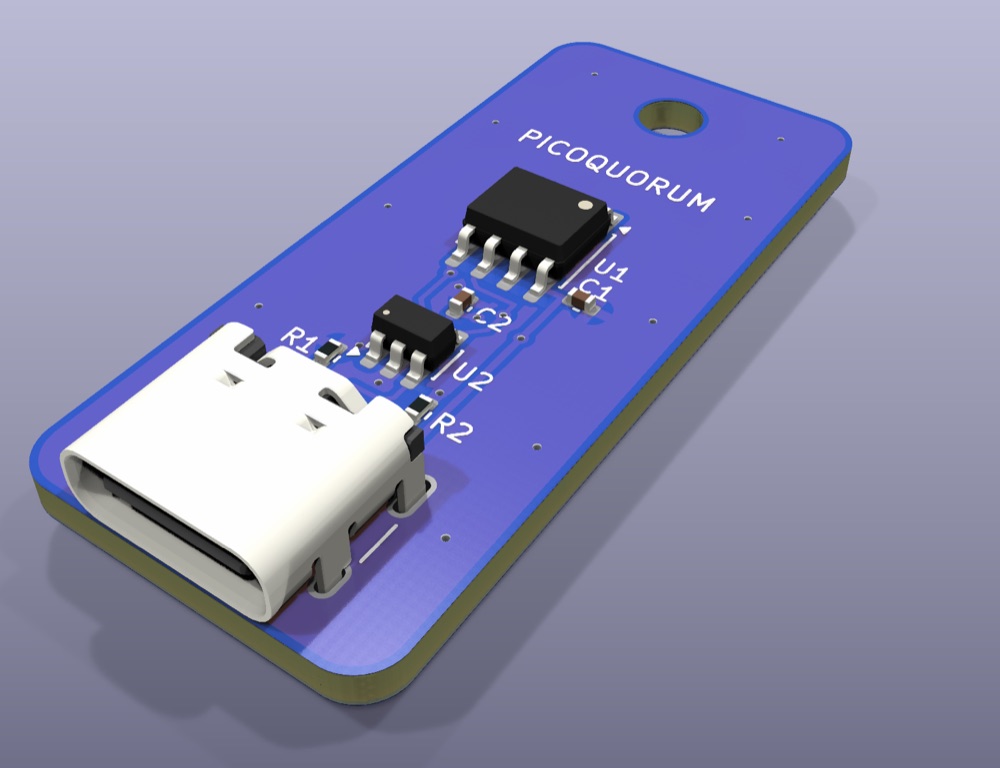

These are KiCad renders of the ordered board, in the colours ordered: blue mask, white silkscreen and silver lead-free HASL pads. KiCad has no 3D model of the HCTL receptacle, so the connector shown is a GCT USB4105, a 16-pin receptacle of the same size and pad layout. The render

These are KiCad renders of the ordered board, in the colours ordered: blue mask, white silkscreen and silver lead-free HASL pads. KiCad has no 3D model of the HCTL receptacle, so the connector shown is a GCT USB4105, a 16-pin receptacle of the same size and pad layout. The renders come from a scratch copy of the board; the files below are untouched.

3D models for CAD: 3d/key-c-P2.step is the assembled board, and 3d/key-c-P2-board-only.step is the bare board. They import into Onshape as-is. Both come from the same scratch copy, with the same GCT stand-in connector at J1's origin. The origin…

PicoQuorum key, proposal C: USB-C receptacle, from the project README
From the project README

Main components on the PicoQuorum key, proposal C: USB-C receptacle

ATECC608C-SSHDA-BUSBLC6-2SC6

PicoQuorum key, proposal C: USB-C receptacle bill of materials (BOM)

7 components, 5 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ATECC608C-SSHDA-B
ATECC608C-SSHDA
U1
1
USBLC6-2SC6
U2
1
HC-TYPE-C-16P-01A
J1
2
100N
100n
C1, C2
2
5.1K
5.1k
R1, R2

PicoQuorum key, proposal C: USB-C receptacle design files

The KiCad project lives in the jmcpheron/pico-quorum repository on GitHub; these links point at the commit this page was built from.

PicoQuorum key, proposal C: USB-C receptacle: common questions

How big is the PicoQuorum key, proposal C: USB-C receptacle PCB?

The PicoQuorum key, proposal C: USB-C receptacle measures 16 × 36 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PicoQuorum key, proposal C: USB-C receptacle?

7 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the PicoQuorum key, proposal C: USB-C receptacle design files?

From the jmcpheron/pico-quorum repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the PicoQuorum key, proposal C: USB-C receptacle design in my own project?

Yes, under the terms of its MIT license, which jmcpheron chose for the repository.
