PicoQuorum key, proposal D: pogo pads and magnets

jmcpheron·pico-quorum·hardware/key-pcb/key-d-pogo/key-d-pogo.kicad_pcb

PicoQuorum key, proposal D: pogo pads and magnets PCB layout, top view — open source board by jmcpheron

About the PicoQuorum key, proposal D: pogo pads and magnets PCB

PicoQuorum key, proposal D: pogo pads and magnets is an open source PCB design by jmcpheron, published on GitHub under the MIT license. It is a 2-layer board measuring 18 × 32 mm, with 3 components from 3 distinct parts.

Other key parts include the ATECC608C-SSHDA-B and USBLC6-2SC6. By type, the board carries 2 ICs and 1 capacitor.

From the project

Rev A, designed 2026-10-02, not yet ordered.

Rev A, designed 2026-10-02, not yet ordered.

On rev A the PCB is the plug. The key is a small board with gold fingers on one edge, like a YubiKey. Those fingers slide into a card-edge socket on the console, so there are no audio plugs, no wires, and nothing to solder to plug lugs. The secure element sits on the same board.

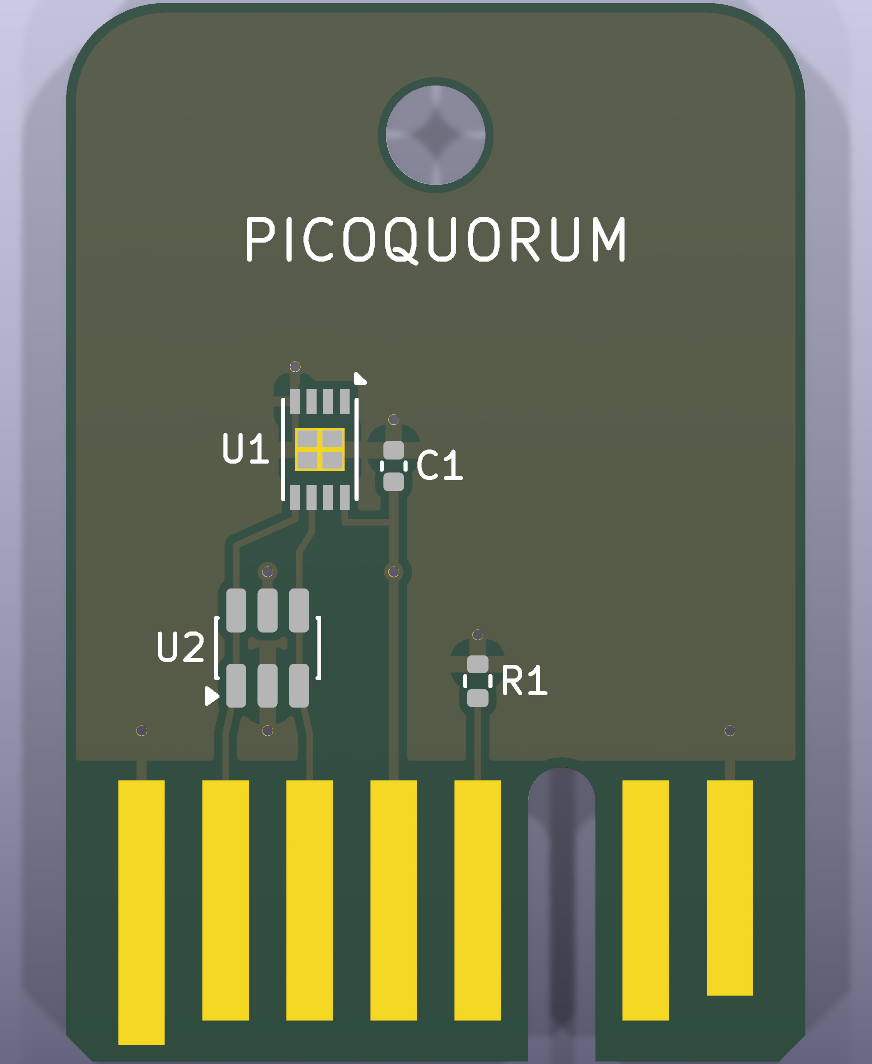

The renders come from tools/keypcb render. They show the pads, fingers and silkscreen but no part bodies, because KiCad's 3D models aren't installed where they were made.

PicoQuorum key, proposal D: pogo pads and magnets, from the project README
From the project README

Main components on the PicoQuorum key, proposal D: pogo pads and magnets

ATECC608C-SSHDA-BUSBLC6-2SC6

PicoQuorum key, proposal D: pogo pads and magnets bill of materials (BOM)

3 components, 3 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ATECC608C-SSHDA-B
ATECC608C-SSHDA
U1
1
USBLC6-2SC6
U2
1
100N
100n
C1

PicoQuorum key, proposal D: pogo pads and magnets design files

The KiCad project lives in the jmcpheron/pico-quorum repository on GitHub; these links point at the commit this page was built from.

PicoQuorum key, proposal D: pogo pads and magnets: common questions

How big is the PicoQuorum key, proposal D: pogo pads and magnets PCB?

The PicoQuorum key, proposal D: pogo pads and magnets measures 18 × 32 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PicoQuorum key, proposal D: pogo pads and magnets?

3 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the PicoQuorum key, proposal D: pogo pads and magnets design files?

From the jmcpheron/pico-quorum repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the PicoQuorum key, proposal D: pogo pads and magnets design in my own project?

Yes, under the terms of its MIT license, which jmcpheron chose for the repository.
