Esp32-ai assistant PCB layout, top view — open source ESP32 board by JmiguelRamriez

About the Esp32-ai assistant PCB

Esp32-ai assistant is an open source ESP32 PCB design by JmiguelRamriez, published on GitHub. It is a 2-layer board measuring 71 × 86 mm, with 8 components from 6 distinct parts.

Its main chip is the ESP32_30pin, from the ESP32 family. Other key parts include the PAM8403. By type, the board carries 3 capacitors, 2 ICs and 2 resistors.

It belongs with the audio, iot & wireless and displays & leds designs in this gallery.

From the project

Un asistente de voz autónomo basado en hardware ESP32 que utiliza la potencia de la nube (Flask + Groq) para mantener conversaciones fluidas. "Luna" es capaz de escuchar tus peticiones, procesar transcripciones ultrarrápidas, generar inteligencia conversacional con Llama-3.1 y re

Un asistente de voz autónomo basado en hardware ESP32 que utiliza la potencia de la nube (Flask + Groq) para mantener conversaciones fluidas. "Luna" es capaz de escuchar tus peticiones, procesar transcripciones ultrarrápidas, generar inteligencia conversacional con Llama-3.1 y responder con voz de forma directa por sus altavoces, a la vez que muestra animaciones en su pantalla OLED interactiva.

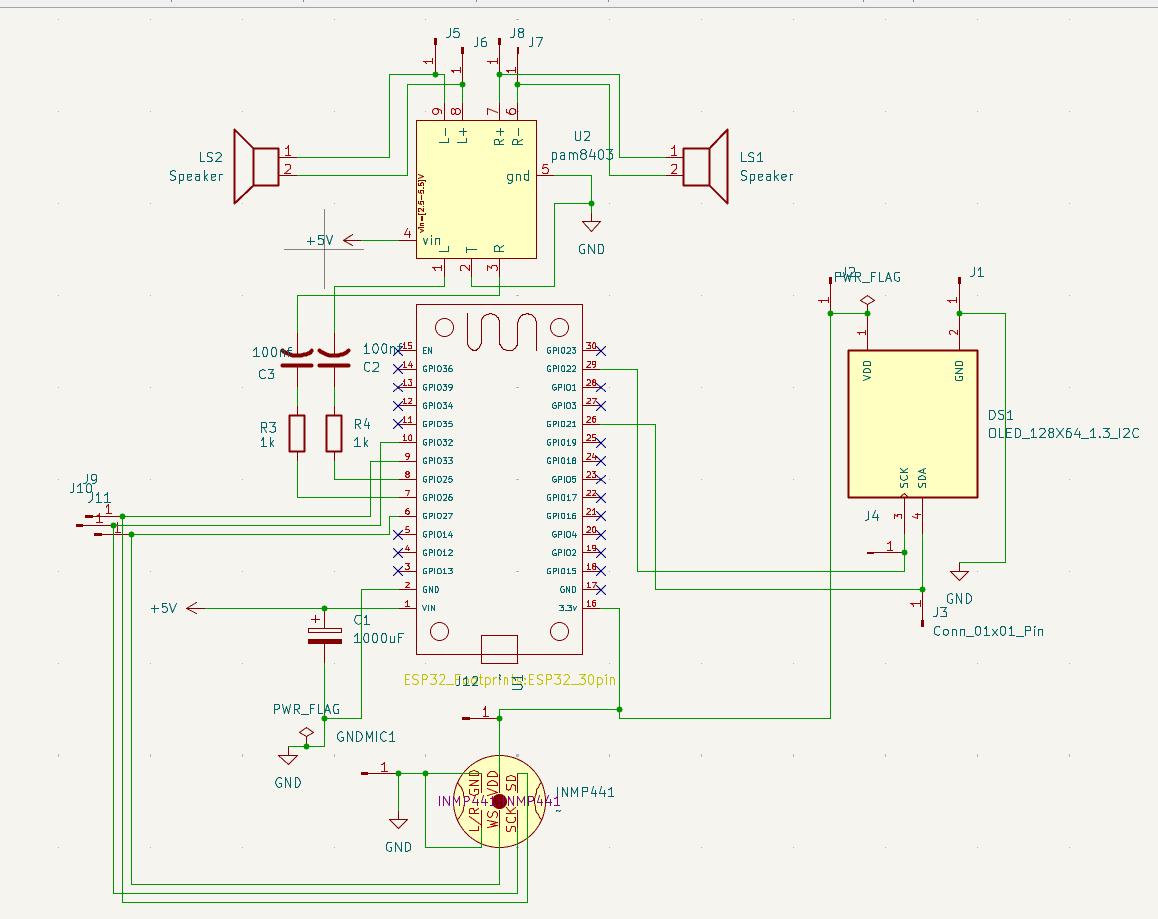

Esp32-ai assistant, from the project README
From the project README

Main components on the Esp32-ai assistant

PAM8403

Esp32-ai assistant bill of materials (BOM)

8 components, 6 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
~
U1
1
PAM8403
pam8403
U2
1
CONN_01X01_PIN
Conn_01x01_Pin
GNDMIC1
1
1000UF
1000uF
C1
2
100NF
100nf
C2, C3
2
1k
R3, R4

Esp32-ai assistant design files

The KiCad project lives in the JmiguelRamriez/esp32-ai-assistant repository on GitHub; these links point at the commit this page was built from.

Esp32-ai assistant: common questions

What microcontroller does the Esp32-ai assistant use?

The Esp32-ai assistant is built around the ESP32_30pin, from the ESP32 family.

How big is the Esp32-ai assistant PCB?

The Esp32-ai assistant measures 71 × 86 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Esp32-ai assistant?

8 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Esp32-ai assistant design files?

From the JmiguelRamriez/esp32-ai-assistant repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Esp32-ai assistant design in my own project?

The repository has no license, so all rights stay with JmiguelRamriez. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Esp32-ai assistant without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
