NRF52832

jmos1·nRF52832

NRF52832 PCB layout, top view — open source Nordic nRF board by jmos1

About the NRF52832 PCB

NRF52832 is an open source Nordic nRF PCB design by jmos1, published on GitHub. It is a 4-layer board measuring 29.2 × 65.3 mm, with 43 components from 29 distinct parts.

Its main chip is the NRF52832-QFAA-R, from the Nordic nRF family. Other key parts include the AP7333-33SAG-7, TPS2105DBVR and NX3DV2567. By type, the board carries 16 capacitors, 6 resistors, 5 connectors, 5 switches, 4 ICs and 3 inductors.

It belongs with the iot & wireless designs in this gallery.

From the project

The BOM, schematic PDF, and gerber files are all accessible in the 'Outputs/' folder. Other project files are not included because they add clutter and can be generated from the project itself in KiCad. Thanks.

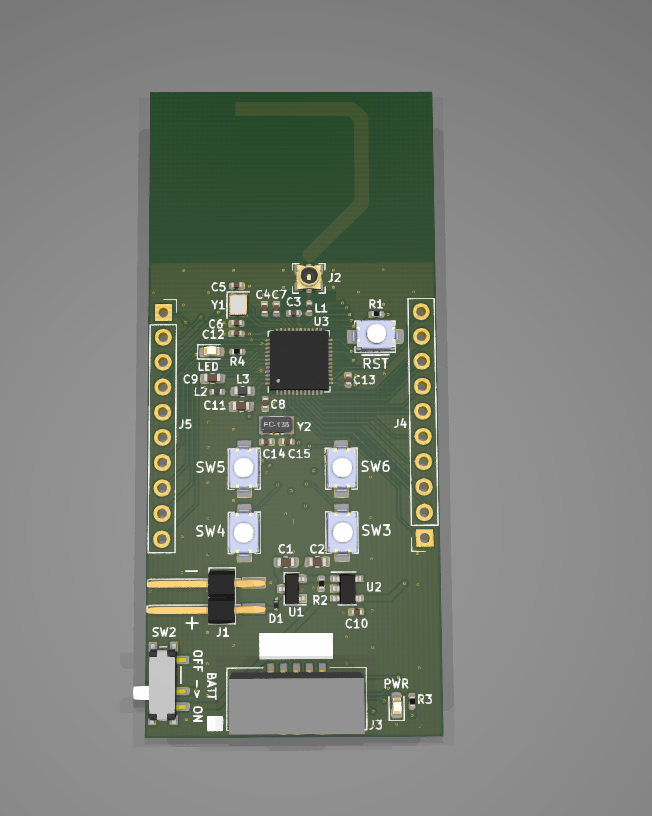

NRF52832, from the project README
From the project README

Main components on the NRF52832

AP7333-33SAG-7TPS2105DBVRNRF52832-QFAA-RNX3DV2567

NRF52832 bill of materials (BOM)

43 components, 29 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AP7333-33SAG-7
Diodes Incorporated
U1
1
TPS2105DBVR
Texas Instruments
U2
1
NRF52832-QFAA-R
nRF52832-QFxx
Nordic Semiconductor
U3
1
NX3DV2567
NXP USA Inc.
U4
1
Q22FA12800025
EPSON
Y1
1
FC-135R 32.7680KA-AC3
EPSON
Y2
1
M20-8890245
Harwin Inc.
J1
1
MM8130-2600RB8
Murata Electronics
J2
1
3221-10-0300-00
CNC Tech
J3
2
CONN_01X10_MALE
Conn_01x10_Male
X
J4, J5
1
BC-2003-G
CR2032 CLIP
MPD
BT1
1
CUS-12TB
Nidec Copal Electronics
SW2
3
TL1015AF160QG
SW_Push
E-Switch
SW3, SW4, SW5
1
TL1015AF160QG
E-Switch
SW6
1
NSR0620P2T5G
ON Semiconductor
D1
1
LQP15MN3N9B02D
3n9
Murata Electronics
L1
1
HK100515NJ-T
15n
Taiyo Yuden
L2
1
LBMF1608T100K
10u
Taiyo Yuden
L3
3
GCM188R71E105KA64D
1u, 25V
Murata Electronics
C1, C2, C9
1
GRM1555C2AR80BA01D
0p8, 100V
Murata Electronics
C3
Show 9 more
QtyPartRefs
1
GRM1555C1E101JA01D
100p, 25V
Murata Electronics
C4
4
GRM1555C1E120JA01D
12p, 25V
Murata Electronics
C5, C6, C14, C15
1
NC
X
C7
5
GRM155R71E104KE14J
100n, 25V
Murata Electronics
C8, C10, C12, C13, C16
1
GRM188R61E475KE11D
4u7, 25V
Murata Electronics
C11
2
MCS04020C1002FE000
10KR
Vishay Beyschlag
R1, R2
2
ERJ-2RKF5600X
560R
Panasonic Electronic Components
R3, R4
1
NC
X
R5
1
MCS04020C1003FE000
100KR
Vishay Beyschlag
R6

NRF52832 design files

The KiCad project lives in the jmos1/nRF52832 repository on GitHub; these links point at the commit this page was built from.

NRF52832: common questions

What microcontroller does the NRF52832 use?

The NRF52832 is built around the NRF52832-QFAA-R, from the Nordic nRF family.

How big is the NRF52832 PCB?

The NRF52832 measures 29.2 × 65.3 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the NRF52832?

43 components, from 29 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the NRF52832 design files?

From the jmos1/nRF52832 repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the NRF52832 design in my own project?

The repository has no license, so all rights stay with jmos1. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the NRF52832 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Nordic nRF firmware against it before you order a PCB.
