About the Cartridge pmod PCB

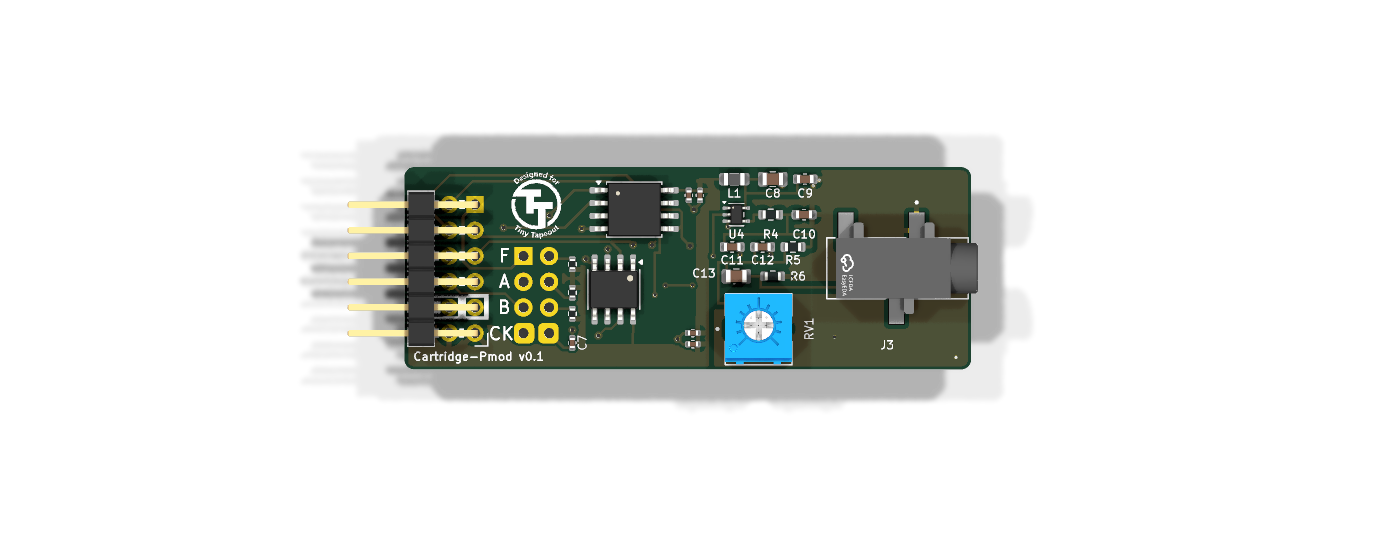

Cartridge pmod is an open source PCB design by joaln27, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 56 × 20 mm, with 25 components from 19 distinct parts.
Other key parts include the W25Q128JVSIM, APS6404L-3SQR-SN and 74LVCE1G126SE-7. By type, the board carries 11 capacitors, 6 resistors, 3 ICs, 3 connectors and 1 inductor.
It belongs with the audio designs in this gallery.
From the project
QSPI flash + PSRAM + audio cartridge Pmod for TinyTapeout — a drop-in remix of the stock QSPI Pmod with sigma-delta audio (RC filter + amp + jack) on the CS2 pin. KiCad, JLC-assemblable
QSPI memory + audio Pmod for the TinyTapeout demo board and the ULX3S console prototype. Drop-in compatible with the stock QSPI Pmod pinout for any flash + single-PSRAM project; PMOD8 (uio[7]) carries sigma-delta audio out instead of the second PSRAM chip select.
v0.1 boards are in hand and bench-verified: ordered from JLCPCB 2026-07-20 (5 PCBs, 2 assembled), tag fab-v0.1, delivered 2026-07-29. Board #1 passed all ten steps of the multimeter bench check the same day and is cleared for first power-up. A self-checking ULX3S bring-up bitstream is ready in fpga/ and runs the moment the ULX3S 85F…

Main components on the Cartridge pmod
Cartridge pmod bill of materials (BOM)
25 components, 19 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | W25Q128JVSIM | SOIC-8_5.23x5.23mm_P1.27mm | U1 |
| 1 | APS6404L-3SQR-SN 878-APS6404L-3SQR-SN | SOP-8_3.9x4.9mm_P1.27mm | U2 |
| 1 | 74LVCE1G126SE-7 | SOT-353_SC-70-5 | U4 |
| 1 | 2.54-2*6P 2.54-2*6P Bend insert | PinHeader_2x06_P2.54mm_PMODPeriph2B | J1 |
| 1 | CONFIG | PinHeader_2x04_P2.54mm_Vertical | J2 |
| 1 | PJ-320B | BOOMELE_PJ-320B | J3 |
| 1 | 3362P-1-201LF | TRIM_3362P-1-102 | RV1 |
| 1 | MLF2012-3R3K | L_0805_2012Metric | L1 |
| 2 | 0402YC104KAT2A 100n | C_0402_1005Metric | C1, C5 |
| 2 | C0402C105M9PAC 1u | C_0402_1005Metric | C2, C6 |
| 1 | 0402CG220J500NT 22pF | C_0402_1005Metric | C7 |
| 1 | 10UF 10uF | C_0805_2012Metric | C8 |
| 3 | 100NF 100nF | C_0603_1608Metric | C9, C10, C12 |
| 1 | 47NF 47nF | C_0603_1608Metric | C11 |
| 1 | 47UF 47uF | C_0805_2012Metric | C13 |
| 3 | 0402WGF1002TCE 10k | R_0402_1005Metric | R1, R2, R3 |
| 1 | 120R | R_0603_1608Metric | R4 |
| 1 | 33R | R_0603_1608Metric | R5 |
| 1 | 470R | R_0603_1608Metric | R6 |
Cartridge pmod design files
The KiCad project lives in the joaln27/cartridge_pmod repository on GitHub; these links point at the commit this page was built from.
- Layoutcartridge-pmod.kicad_pcb
- Schematiccartridge-pmod.kicad_sch
- BOMbom.csv
Cartridge pmod: common questions
How big is the Cartridge pmod PCB?
The Cartridge pmod measures 56 × 20 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Cartridge pmod?
25 components, from 19 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Cartridge pmod design files?
From the joaln27/cartridge_pmod repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Cartridge pmod design in my own project?
Yes, under the terms of its Apache-2.0 license, which joaln27 chose for the repository.
