All in one-USB-3.1-Hub for-EE-Engineers

jobitjoseph·All-in-one-USB-3.1-Hub-for-EE-Engineers·PCB Files/HUB0402/HUB0402.kicad_pcb

All in one-USB-3.1-Hub for-EE-Engineers PCB layout, top view — open source board by jobitjoseph
Simulate this board

About the All in one-USB-3.1-Hub for-EE-Engineers PCB

All in one-USB-3.1-Hub for-EE-Engineers is an open source PCB design by jobitjoseph, published on GitHub. It is a 4-layer board measuring 165 × 50 mm, with 298 components from 73 distinct parts.

Other key parts include the TLV75533PDBVR, TLV62084DSGR, SN74LVC1G14DCKR, SST26VF016BT-80E/SN and USB5926CT/KD. By type, the board carries 121 resistors, 113 capacitors, 22 ICs, 18 LEDs, 12 connectors and 3 switches.

It belongs with the usb & debug tools designs in this gallery.

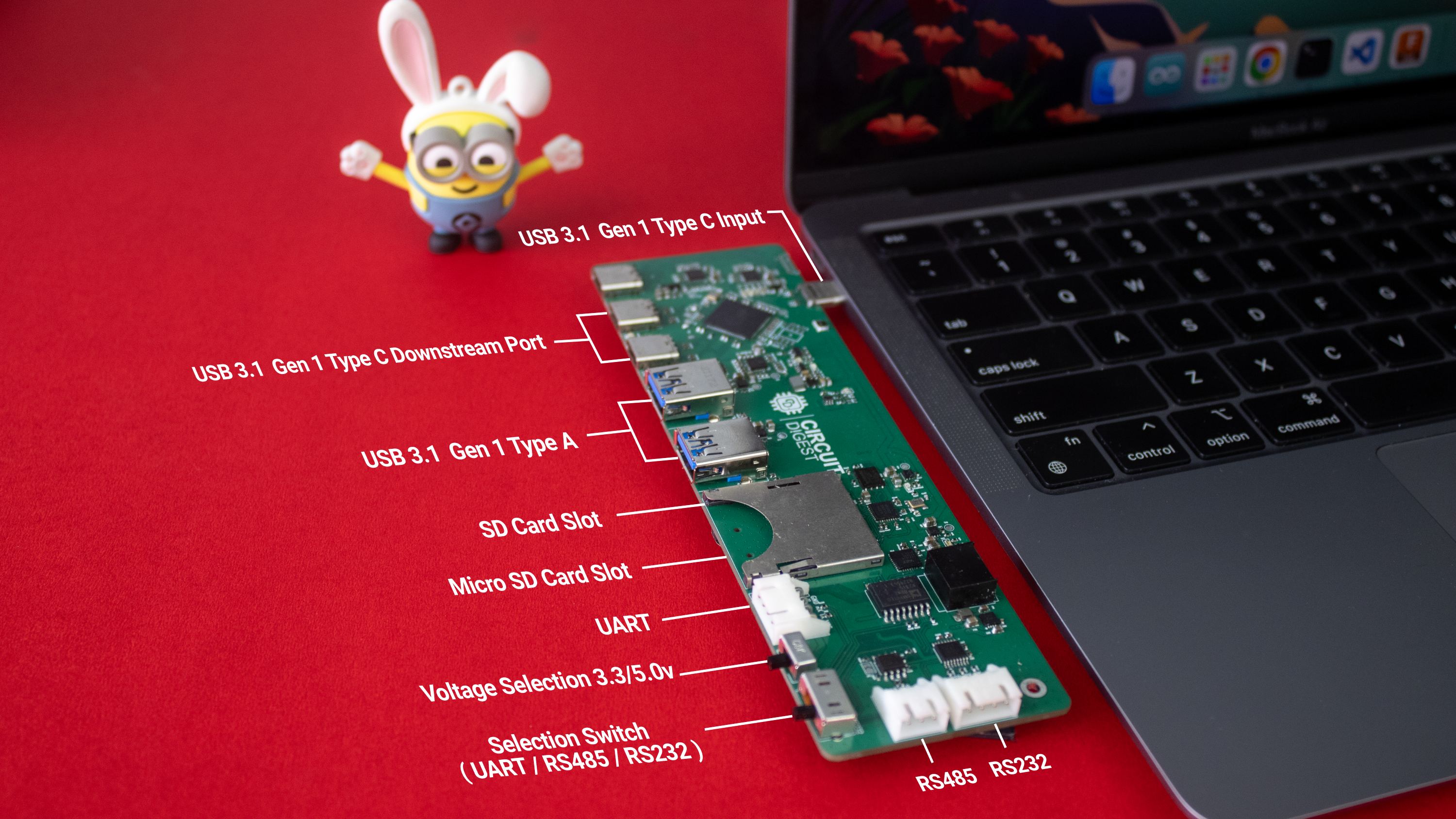

All in one-USB-3.1-Hub for-EE-Engineers, from the project README
From the project README

Main components on the All in one-USB-3.1-Hub for-EE-Engineers

TLV75533PDBVRTLV62084DSGRSN74LVC1G14DCKRSST26VF016BT-80E/SNUSB5926CT/KDUPD350A/Q8XMIC94041YFL-TRMIC2009YMLADM7171ACPZ-3.3-R7CP2102N-A02-GQFN28RADUM341E0BRWZ-RLSP485REN-L/TRSP3232EEY-LW25Q80DVZPIGGL3224-OIY04

All in one-USB-3.1-Hub for-EE-Engineers bill of materials (BOM)

298 components, 73 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TLV75533PDBVR
U1
1
TLV62084DSGR
U2
2
SN74LVC1G14DCKR
U3, U5
1
SST26VF016BT-80E/SN
SST26VF016BT-80E_SN
U4
1
USB5926CT/KD
USB5926CT_KD
U6
3
UPD350A/Q8X
U7, U8, U10
2
MIC94041YFL-TR
U9, U11
4
MIC2009YML
MIC2009YML-TR
U12, U13, U14, U20
1
ADM7171ACPZ-3.3-R7
U15
1
CP2102N-A02-GQFN28R
CP2102N-Axx-xQFN28
U16
1
ADUM341E0BRWZ-RL
U17
1
SP485REN-L/TR
SP485REN-L_TR
U18
1
SP3232EEY-L
U19
1
W25Q80DVZPIG
U21
1
GL3224-OIY04
U22
2
USB4155-03-C
USB4155-03-C_REVA
J1, J3
3
12401598E4_2A
J2, J4, J5
2
0484050003
J6, J7
2
S4B-XH-A-1
Conn_01x04
J8, J10
1
S3B-XH-A
Conn_01x03
J9
Show 53 more
QtyPartRefs
1
SD-2-A
J11
1
MSD-4-A
J12
1
RFM-0505S
PS1
1
CS1213AGF260
SW_Push
SW1
1
OS102011MA1QN1
SW2
1
OS203011MA2QP1
SW3
2
VXM7-9013-25M0000000
25MHz
XTAL1, XTAL2
10
B1931NG--20D001114U1930
LED_Green
Lite-On
LED1, LED2, LED7, LED11, LED13, LED14, LED15, LED16 +2
2
B2612UDNB20D000312U1930
LED3, LED5
2
B1931USD-20D000814U1930
LED_Red
Hubei KENTO Elec
LED4, LED9
3
B1911UYG-20D000114U1930
LED_Yellow
LED6, LED10, LED12
1
F1961NB--20C001714U1930
LED_Blue
Hubei KENTO Elec
LED8
3
BAV99LT1G
BAV99
D1, D2, D3
1
SRP3212-1R5M
1.5uH
L1
1
VLS252012HBU-150M
15uH
L2
1
VLS252012HBU-220M
22uH
L3
13
CL05A105KP5NNNC
1uF
C1, C4, C42, C45, C50, C53, C65, C68 +5
62
GRM155R71C104KA88J
0.1uF
C2, C8, C10, C11, C12, C13, C14, C15 +54
1
NC
C3
2
GRM188R61A226ME15D
22uF
C5, C7
3
GRM188R61E106MA73D
10uF
C6, C9, C95
4
GRM1555C1H100JA01D
10pF
C25, C32, C104, C107
7
CC0402MRX5R6BB225
2.2uF
C37, C41, C46, C49, C54, C64, C69
15
GRM21BR61A476ME15L
47uF
C39, C47, C56, C57, C62, C71, C72, C77 +7
2
CL21A475KAQNNNE
4.7uF
C89, C103
1
CL21A106KOQNNNE
10uF
C90
2
CL10A475KP8NNNC
4.7u
C91, C93
1
GRM1555C1H102JA01D
1n
C92
26
RC0402JR-071KL
1K
UNI-ROYAL(Uniroyal Elec)
R1, R5, R11, R12, R13, R36, R37, R38 +18
28
RC0402FR-07100KL
100K
UNI-ROYAL(Uniroyal Elec)
R2, R9, R10, R21, R33, R34, R39, R40 +20
1
RMCF0402FT64K9
65.3K
R3
1
RMCF0402FT39K2
39.2K
R4
18
RC0402JR-0710KL
10K
R6, R7, R8, R14, R15, R17, R19, R22 +10
1
ERJ-2RKF10R0X
10R
R16
3
RMCF0402FT200K
200K
R18, R20, R27
1
RC0402JR-0712KL
12K
R26
3
RC0402FR-0790K9L
90.9K
UNI-ROYAL(Uniroyal Elec)
R28, R52, R72
1
CRCW040224K0FKEDC
24K
UNI-ROYAL(Uniroyal Elec)
R30
1
ERJ-2RKF4022X
40.2K
UNI-ROYAL(Uniroyal Elec)
R31
1
ERJ-2RKF3831X
3.83K
UNI-ROYAL(Uniroyal Elec)
R32
12
ERJ-2GE0R00X
0R
UNI-ROYAL(Uniroyal Elec)
R35, R46, R49, R66, R69, R82, R87, R92 +4
2
ERJ-2RKF6651X
6.65K
UNI-ROYAL(Uniroyal Elec)
R42, R62
1
RC1210JR-070RL
0R
UNI-ROYAL(Uniroyal Elec)
R45
2
ERJ-2GE0R00X
100K
UNI-ROYAL(Uniroyal Elec)
R48, R68
6
ERJ-2RKF2201X
2.2K
UNI-ROYAL(Uniroyal Elec)
R58, R76, R85, R90, R95, R117
1
100K
UNI-ROYAL(Uniroyal Elec)
R65
4
RC0402FR-07124RL
124R
UNI-ROYAL(Uniroyal Elec)
R83, R88, R93, R115
2
RC0402FR-07330RL
330R
UNI-ROYAL(Uniroyal Elec)
R86, R91
1
ERJ-2RKF4752X
47.5k
R96
1
CRCW040222K1FKEDC
22.1k
R97
2
ERJ-2RKF2002X
20K
R108, R109
1
CRCW0402120RFKEDC
120R
R110
1
CRCW0402680RFKEDC
680R
UNI-ROYAL(Uniroyal Elec)
R118

All in one-USB-3.1-Hub for-EE-Engineers design files

The KiCad project lives in the jobitjoseph/All-in-one-USB-3.1-Hub-for-EE-Engineers repository on GitHub; these links point at the commit this page was built from.

All in one-USB-3.1-Hub for-EE-Engineers: common questions

How big is the All in one-USB-3.1-Hub for-EE-Engineers PCB?

The All in one-USB-3.1-Hub for-EE-Engineers measures 165 × 50 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the All in one-USB-3.1-Hub for-EE-Engineers?

298 components, from 73 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the All in one-USB-3.1-Hub for-EE-Engineers design files?

From the jobitjoseph/All-in-one-USB-3.1-Hub-for-EE-Engineers repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the All in one-USB-3.1-Hub for-EE-Engineers design in my own project?

The repository has no license, so all rights stay with jobitjoseph. Use it as a reference, and ask the author before reusing the design.
