Jrdish axis controller
About the Jrdish axis controller PCB
Jrdish axis controller is an open source STM32 PCB design by jrseti, published on GitHub under the MIT license. It is a 4-layer board measuring 100 × 100 mm, with 243 components from 77 distinct parts.
Its main chip is the STM32G474RET6, from the STM32 family. Other key parts include the ISOW1432BDFMR, MP2322GQH-Z, LTC4311ISC6#TRPBF, LM75BIMX-3/NOPB and W25Q32JVSSIQ. By type, the board carries 76 capacitors, 73 resistors, 34 diodes, 13 connectors, 13 inductors and 8 ICs.
It belongs with the sensors designs in this gallery.
From the project
Various printed circuit board projects

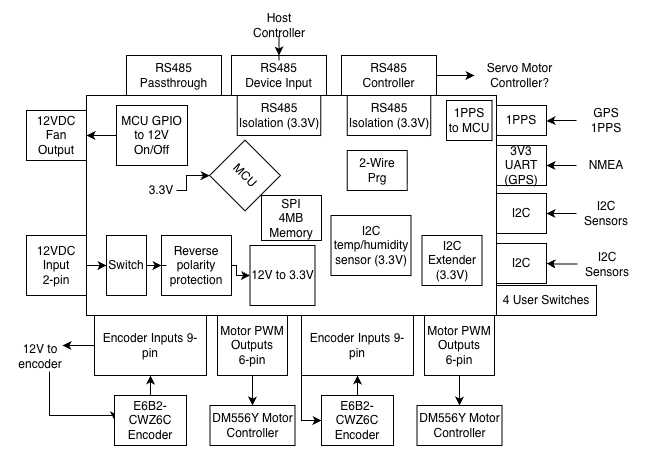

This PCB is an improved version of the mcutestboard PCB. RS485, better isolation, fan power output and mode.
This board follows on from the mcutestboard. The mcutestboard functions well, but quickly necessary improvements became evident to be able to fully service one axis of the satellite dish.
- PWM output. Isolated. - Encoder inputs. Isolated. - MCU will execute a PID loop. - Upgrade to the STM32G473CET6 LQFP48. Has 512KB Flash vs 128KB. - RS485. Isolated. With passthrough. - MCU controllerd 12V output for fan on/off. Isolated. - Requires only 12V input - I2C isolation - Onboard I2C…
Main components on the Jrdish axis controller
Jrdish axis controller bill of materials (BOM)
243 components, 77 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | STM32G474RET6 ST(意法半导体) | LQFP-64_L10.0-W10.0-P0.50-LS12.0-BL | U1 |
| 2 | ISOW1432BDFMR TI(德州仪器) | SOIC-20_L12.8-W7.5-P1.27-LS10.3-BL | U2, U3 |
| 1 | MP2322GQH-Z | QFN-8_L2.0-W1.5-P0.50-BL | U4 |
| 1 | LTC4311ISC6#TRPBF | SC-70-6_L2.2-W1.3-P0.65-LS2.2-BL | U5 |
| 1 | LM75BIMX-3/NOPB TI(德州仪器) | SOIC-8_L4.9-W3.9-P1.27-LS6.0-BL | U6 |
| 1 | W25Q32JVSSIQ W25Q32JVSSIQ_C179173 Winbond(华邦) | SOIC-8_L5.3-W5.3-P1.27-LS8.0-BL | U7 |
| 1 | MAX-M10S-00B U-BLOX(优北罗) | SMD-18_L10.1-W9.7-P1.10-TL_SKG09F | U8 |
| 2 | AO3407A | SOT-23-3_L2.9-W1.6-P1.90-LS2.8-BR | Q1, Q4 |
| 1 | AO3400A AOS | SOT-23-3_L2.9-W1.3-P1.90-LS2.4-BR | Q2 |
| 4 | BSS138 | SOT-23 | Q5, Q6, Q7, Q8 |
| 1 | NX2016SA-16MHZ-EXS00A-CS07826 | CRYSTAL-SMD_4P-L2.0-W1.6-BL | X1 |
| 2 | KF2EDGR-2.54-9P | CONN-TH_9P-P2.54_KF2EDGR-2.54-9P | CN1, CN12 |
| 3 | KF2EDGR-2.54-6P | CONN-TH_KF2EDGR-2.54-6P | CN2, CN13, CN14 |
| 3 | KF2EDGR-2.54-4P | CONN-TH_4P-P2.54_KF2EDGR-2.54-4P | CN3, CN4, CN5 |
| 2 | SM04B-SRSS-TB (LF)(SN) | CONN-SMD_4P-P1.00_SM04B-SRSS-TB-LF-SN | CN7, CN8 |
| 1 | KF2EDGR-2.54-2P | CONN-TH_P2.54_KF2EDGR-2.54-2P | CN9 |
| 1 | SMA-KWE SMA-KWE_C7498154 LX(连欣科技) | SMA-TH_SMA-KWE_C7498154 | CN17 |
| 1 | Conn_ST_STDC14 | HDR-SMD_14P-P1.27_FTSH-107-01-L-DV-K | J1 |
| 1 | MS621FE-FL11E | BAT_MS621FE-FL11E | BT1 |
| 1 | DC-005-2.5A-2.0 | CONN-TH_DC-005-2.5A-2.0 | DC1 |
Show 57 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 1812L110/48QR LUTE(陆特) | F1812 | F1 |
| 2 | MF-USMF020-2 BOURNS | F1210 | F4, F5 |
| 3 | B-2100S02P-A110 210S-1*2P L=11.6MMGold-plated black Ckmtw(灿科盟) | HDR-TH_2P-P2.54-V-M-1 | H2, H3, H4 |
| 1 | DSHP04TSGER | SW-SMD_8P-L6.7-W5.4-P1.27-LS8.4 | SW1 |
| 1 | SS-12F49-G050 | SW-TH_SS-12F45-GXXX | SW2 |
| 6 | RH-5016 荣和 | TESTPOINT-SMD_L3.0-W2.0 | TP1, TP2, TP3, TP4, TP5, TP7 |
| 1 | LTST-S270KGKT | LED-SMD_L1.7-W0.6-RD | LED1 |
| 1 | KT-0805B XL-0805QBC KENTO | LED0805-R-RD | LED2 |
| 20 | TPESD0402G05V | D0402-BI | D1, D2, D3, D7, D8, D9, D12, D13 +12 |
| 8 | TPESD0402G15V TECH PUBLIC(台舟) | D0402-BI | D4, D5, D10, D11, D31, D32, D33, D34 |
| 1 | SS14 MDD(辰达半导体) | SMA_L4.2-W2.6-LS5.0-RD_1 | D6 |
| 2 | SM712_SOT23 | SOT-23 | D27, D30 |
| 2 | SMAJ15CA | D_SMA | D28, D29 |
| 1 | 1N4148WS 1N4148WS T4 CJ(江苏长电/长晶) | SOD-323_L1.8-W1.3-LS2.5-RD | D35 |
| 8 | BLM15EX331SN1D muRata(村田) | L0402 | L1, L2, L5, L6, L7, L8, L9, L10 |
| 2 | SMW2012B371BTE Choke Sunltech(顺磁) | FILTER-SMD_4P-L2.0-W1.2-BL | L3, L4 |
| 1 | 3.3uH | IND-SMD_L3.0-W3.0-1 | L11 |
| 1 | BLM18AG601SN1D muRata(村田) | L0603 | L13 |
| 1 | LQG15HS27NJ02D muRata(村田) | L0402-RD | L14 |
| 1 | 4.7uF Samsung Electro-Mechanics | C_0603 | C1 |
| 18 | 100nF Samsung Electro-Mechanics | C_0402 | C2, C3, C4, C5, C6, C9, C11, C12 +10 |
| 2 | 10nF Samsung Electro-Mechanics | C_0402 | C7, C60 |
| 3 | 1uF Samsung Electro-Mechanics | C_0402 | C8, C10, C54 |
| 2 | 6.8pF FH(Guangdong Fenghua Advanced Tech) | C_0402 | C13, C14 |
| 6 | 1nF FH(Guangdong Fenghua Advanced Tech) | C_0402 | C15, C16, C17, C67, C68, C69 |
| 2 | 10uF Samsung Electro-Mechanics | C_0603 | C19, C58 |
| 8 | GRM21BR6YA106KE43L 10uF muRata(村田) | C0805 | C20, C23, C28, C31, C32, C35, C40, C43 |
| 8 | CL10A105KA8NNNC 1uF SAMSUNG(三星) | C0603 | C21, C24, C27, C30, C33, C36, C39, C42 |
| 4 | CL05B104KO5NNNC 100nF SAMSUNG(三星) | C0402 | C22, C25, C26, C29 |
| 4 | 0402B103K500CT 10nF Walsin(华新科) | C0402 | C34, C37, C38, C41 |
| 2 | C43Q1103K40C80F 10nF faratronic(厦门法拉) | CAP-TH_L13.0-W6.0-P10.00-D1.2 | C44, C45 |
| 1 | 47uF | C1206 | C46 |
| 1 | 100nF | C0603 | C47 |
| 2 | 10uF Murata Electronics | C_0805 | C49, C50 |
| 3 | 100nF YAGEO | C_0603 | C51, C62, C64 |
| 1 | 22pF Samsung Electro-Mechanics | C_0603 | C52 |
| 1 | 22uF Samsung Electro-Mechanics | C_0805 | C53 |
| 1 | 4.7uF Samsung Electro-Mechanics | C_0402 | C55 |
| 1 | 1uF Samsung Electro-Mechanics | C_0603 | C63 |
| 1 | 47pF Samsung Electro-Mechanics | C_0603 | C65 |
| 4 | 10nF FH(Guangdong Fenghua Advanced Tech) | C_0603 | C66, C70, C71, C76 |
| 7 | 1kΩ UNI-ROYAL(Uniroyal Elec) | R_0402 | R1, R4, R5, R6, R33, R34, R35 |
| 17 | 10kΩ UNI-ROYAL(Uniroyal Elec) | R_0402 | R2, R24, R25, R26, R27, R28, R30, R64 +9 |
| 1 | 330Ω UNI-ROYAL(Uniroyal Elec) | R_0402 | R3 |
| 19 | 100Ω UNI-ROYAL(Uniroyal Elec) | R_0402 | R7, R8, R9, R10, R11, R29, R36, R37 +11 |
| 2 | 1kΩ UNI-ROYAL(Uniroyal Elec) | R_0603 | R12, R31 |
| 6 | 180Ω UNI-ROYAL(Uniroyal Elec) | R_0603 | R14, R15, R16, R43, R44, R45 |
| 2 | 120Ω UNI-ROYAL(Uniroyal Elec) | R_0805 | R17, R46 |
| 2 | 5.1kΩ UNI-ROYAL(Uniroyal Elec) | R_0402 | R18, R19 |
| 1 | 10kΩ UNI-ROYAL(Uniroyal Elec) | R_0603 | R20 |
| 1 | 976kΩ | R_0805_2012Metric | R21 |
| 1 | 100kΩ UNI-ROYAL(Uniroyal Elec) | R_0603 | R22 |
| 1 | 220kΩ UNI-ROYAL(Uniroyal Elec) | R_0603 | R23 |
| 1 | 1206W4F100JT5E 10Ω UNI-ROYAL(厚声) | R1206 | R32 |
| 4 | 4.7kΩ UNI-ROYAL(Uniroyal Elec) | R_0402 | R47, R49, R51, R53 |
| 4 | 22Ω UNI-ROYAL(Uniroyal Elec) | R_0402 | R66, R67, R68, R69 |
| 4 | 15kΩ UNI-ROYAL(Uniroyal Elec) | R_0402 | R71, R74, R77, R80 |
Jrdish axis controller design files
The KiCad project lives in the jrseti/pcbs repository on GitHub; these links point at the commit this page was built from.
Jrdish axis controller: common questions
What microcontroller does the Jrdish axis controller use?
The Jrdish axis controller is built around the STM32G474RET6, from the STM32 family.
How big is the Jrdish axis controller PCB?
The Jrdish axis controller measures 100 × 100 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Jrdish axis controller?
243 components, from 77 distinct parts. The full bill of materials is listed on this page.
Where can I download the Jrdish axis controller design files?
From the jrseti/pcbs repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Jrdish axis controller design in my own project?
Yes, under the terms of its MIT license, which jrseti chose for the repository.
