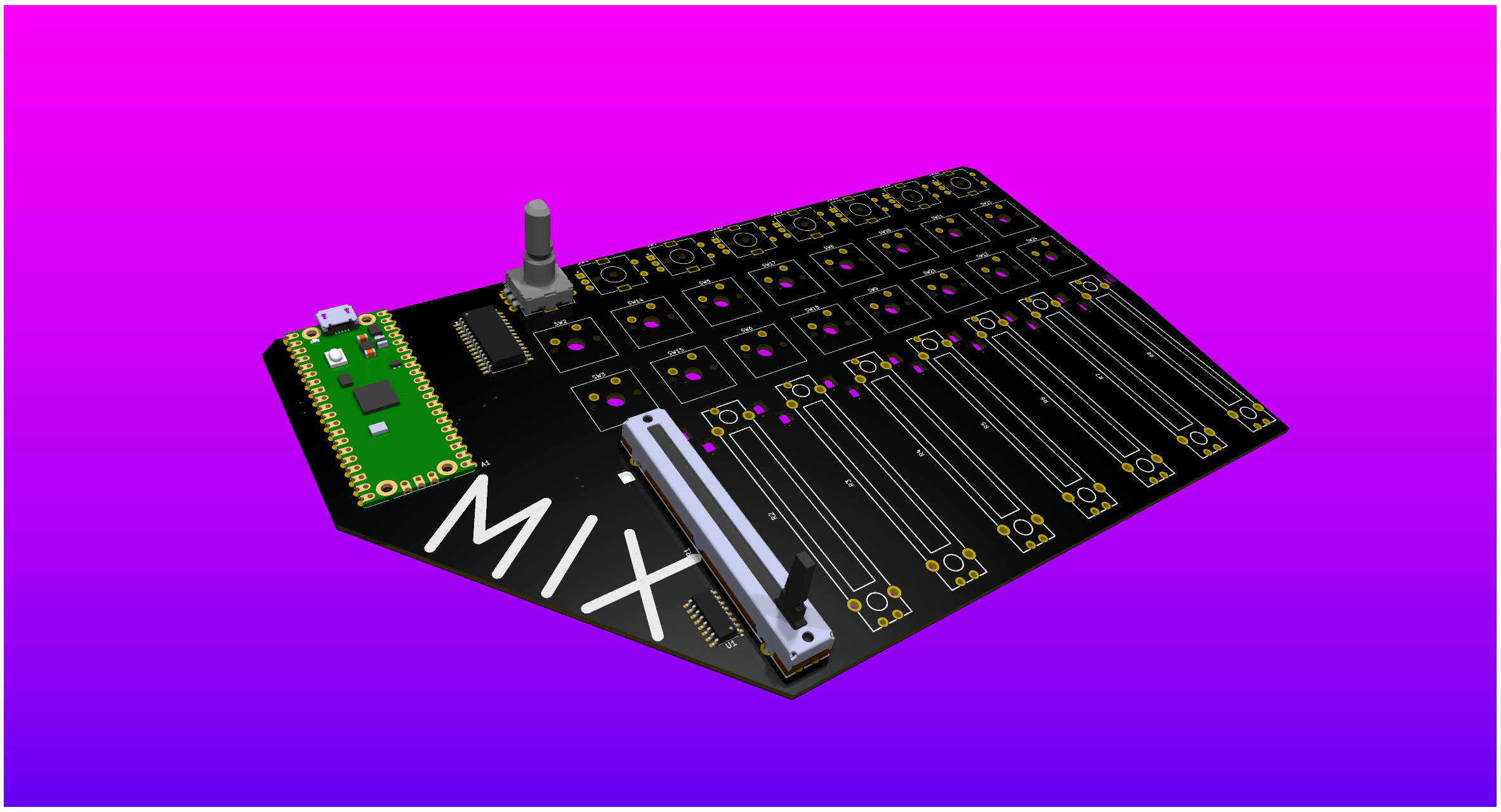

Mix PCB layout, top view — open source RP2040/RP2350 board by JustAGlitchFL

About the Mix PCB

Mix is an open source RP2040/RP2350 PCB design by JustAGlitchFL, published on GitHub. It is a 2-layer board measuring 203 × 119.7 mm, with 59 components from 7 distinct parts.

Its main chip is the RaspberryPi_Pico, from the RP2040/RP2350 family. Other key parts include the MCP3008 and MCP23017_SO. By type, the board carries 32 diodes, 16 switches, 8 resistors, 2 ICs and 1 module.

It belongs with the audio and keyboards designs in this gallery.

From the project

A multipurpose audio-focused console

Mix, from the project README
From the project README

Main components on the Mix

MCP3008MCP23017_SORaspberryPi_Pico

Mix bill of materials (BOM)

59 components, 7 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MCP3008
U1
1
MCP23017_SO
U3
1
RaspberryPi_Pico
A1
16
SW_Push
SW2, SW3, SW5, SW6, SW8, SW9, SW11, SW12 +8
16
SK6812MINI
D1, D2, D3, D4, D5, D6, D7, D8 +8
16
D_45DEG
D_45deg
D17, D18, D19, D20, D21, D22, D23, D24 +8
8
~
R1, R2, R3, R4, R5, R6, R7, R8

Mix design files

The KiCad project lives in the JustAGlitchFL/Mix repository on GitHub; these links point at the commit this page was built from.

Mix: common questions

What microcontroller does the Mix use?

The Mix is built around the RaspberryPi_Pico, from the RP2040/RP2350 family.

How big is the Mix PCB?

The Mix measures 203 × 119.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Mix?

59 components, from 7 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Mix design files?

From the JustAGlitchFL/Mix repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Mix design in my own project?

The repository has no license, so all rights stay with JustAGlitchFL. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Mix without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
