Power board
About the Power board
Power board is an open source PCB design by jypma, published on GitHub. It is a 2-layer board measuring 87.5 × 37.1 mm, with 7 components from 2 distinct parts.
It belongs with the audio designs in this gallery.
From the project
Open hardware eurorack synth modules

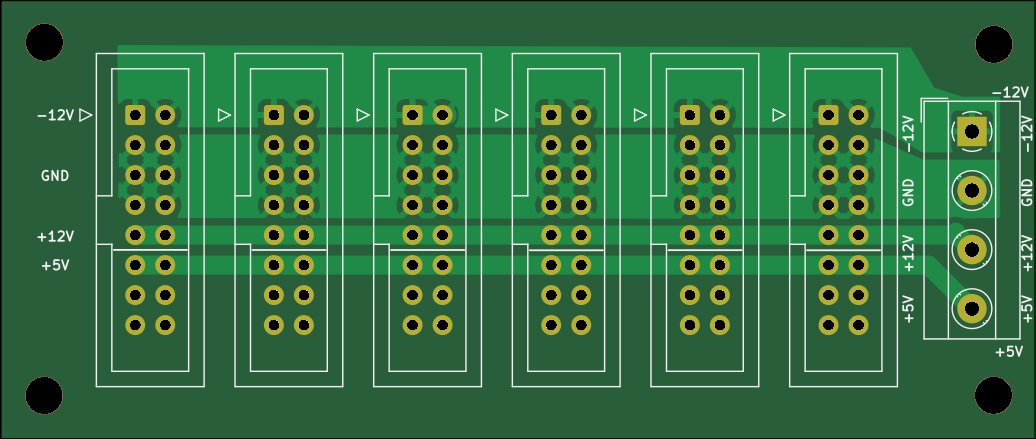

A simple power distribution board with 6 16-pin IDC connectors and a 4-way screw terminal. Silk screen contains markers for 10-pin IDC connectors as well, for modules not using the +5V (none in this repository do).
Power board bill of materials (BOM)
7 components, 2 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Conn_01x04_Female | TerminalBlock_MetzConnect_Type055_RT01504HDWU_1x04_P5.00mm_Horizontal | J1 |
| 6 | Conn_02x08_Odd_Even | IDC-Header_2x08_P2.54mm_Vertical | J2, J3, J4, J5, J6, J7 |
Power board design files
The KiCad project lives in the jypma/modsynth repository on GitHub; these links point at the commit this page was built from.
Power board: common questions
How big is the Power board?
The Power board measures 87.5 × 37.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Power board?
7 components, from 2 distinct parts. The full bill of materials is listed on this page.
Where can I download the Power board design files?
From the jypma/modsynth repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Power board design in my own project?
The repository has no license, so all rights stay with jypma. Use it as a reference, and ask the author before reusing the design.
