About the TuringBack PCB

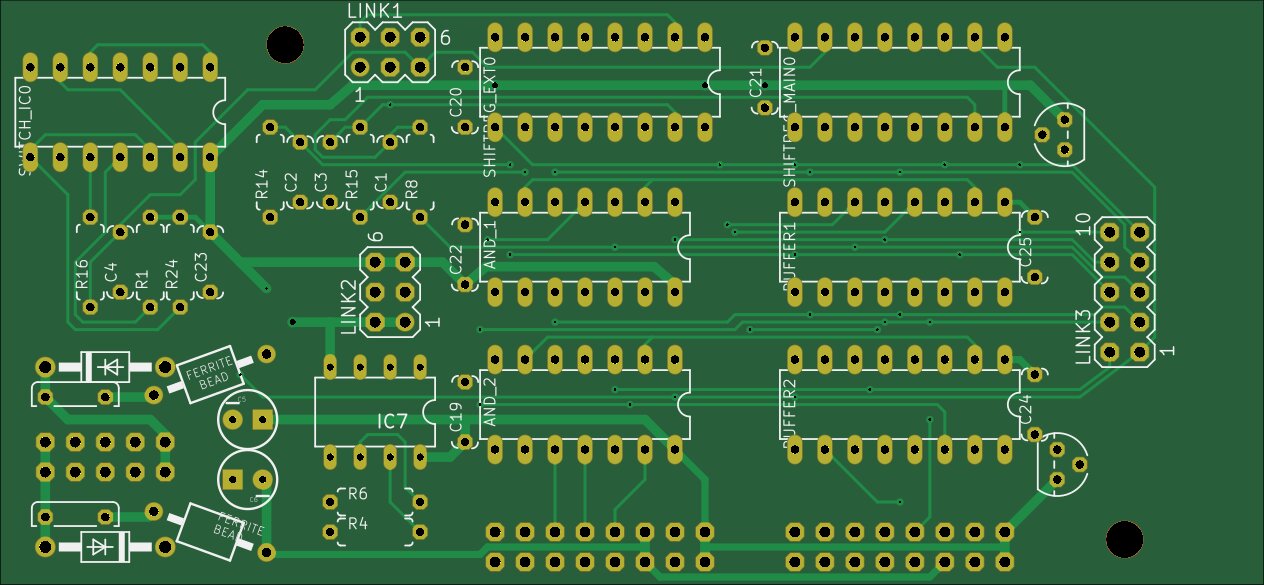

TuringBack is an open source PCB design by jypma, published on GitHub. It is a 4-layer board measuring 107 × 49.5 mm, with 45 components from 20 distinct parts.
Other key parts include the TL072P and 78L09. By type, the board carries 13 capacitors, 8 resistors, 5 ICs, 2 diodes and 2 inductors.
It belongs with the audio designs in this gallery.
From the project
Open hardware eurorack synth modules
Based on [[https://github.com/TomWhitwell/TuringMachine/][Turing Machine]] on github.
- Converted schematics to Kicad - Front panel isn't converted, since Eagle source for that isn't available. Only raw gerbers exist.
Main components on the TuringBack
TuringBack bill of materials (BOM)
45 components, 20 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TL072P | DIL08 | IC7 |
| 2 | 78L09 | TO92 | IC11, IC12 |
| 2 | — | MOUNTING_HOLE | U$4, U$5 |
| 1 | +FUSE | C050H075X075 | +FUSE0 |
| 1 | -FUSE | C050H075X075 | -FUSE0 |
| 2 | 4081 | DIL14 | AND_1, AND_2 |
| 2 | 4050 | DIL16 | BUFFER1, BUFFER2 |
| 2 | — | MA08-2 | GATES0, PULSES0 |
| 2 | — | MA03-2 | LINK1, LINK2 |
| 2 | — | MA05-2 | LINK3, SV1 |
| 2 | 4015 | DIL16 | SHIFTREG_EXT0, SHIFTREG_MAIN0 |
| 1 | 4016 | DIL14 | SWITCH_IC0 |
| 2 | 1N4001 | DO41-10 | D5, D6 |
| 2 | BL01RN1A | BL01RN1A | L1, L2 |
| 4 | 1n | C050-024X044 | C1, C2, C3, C4 |
| 2 | 10uf | CPOL-RADIAL-10UF-25V | C5, C6 |
| 7 | 100n | C050-024X044 | C19, C20, C21, C22, C23, C24, C25 |
| 6 | 10k | 0207_7 | R1, R8, R14, R15, R16, R24 |
| 1 | 100k | 0207_7 | R4 |
| 1 | 47k | 0207_7 | R6 |
TuringBack design files
The KiCad project lives in the jypma/modsynth repository on GitHub; these links point at the commit this page was built from.
TuringBack: common questions
How big is the TuringBack PCB?
The TuringBack measures 107 × 49.5 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the TuringBack?
45 components, from 20 distinct parts. The full bill of materials is listed on this page.
Where can I download the TuringBack design files?
From the jypma/modsynth repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the TuringBack design in my own project?
The repository has no license, so all rights stay with jypma. Use it as a reference, and ask the author before reusing the design.
