Motor Driver

kabot-io·kabot-hardware·kicad/kabot/kabot.kicad_blocks/Motor Driver.kicad_block/Motor Driver.kicad_pcb

Motor Driver PCB layout, top view — open source board by kabot-io
Simulate this board

About the Motor Driver PCB

Motor Driver is an open source PCB design by kabot-io, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 15.3 × 6.6 mm, with 11 components from 9 distinct parts.

Other key parts include the INA219AxDCN and DRV8837. By type, the board carries 4 capacitors, 3 resistors, 2 ICs, 1 connector and 1 fuse.

It belongs with the robotics & motion designs in this gallery.

From the project

Hardware source and production files to recreate Kabot robot in physical world

Kabot is an open-source, compact educational mobile robot. This repository contains its mechanical, electronic, and hardware production files.

The hardware was designed entirely with free and open-source software (FOSS):

- FreeCAD 1.1.1 for the mechanical design - KiCad 10.0.4 for the electronic design

Using these versions is recommended for the best compatibility with the source files.

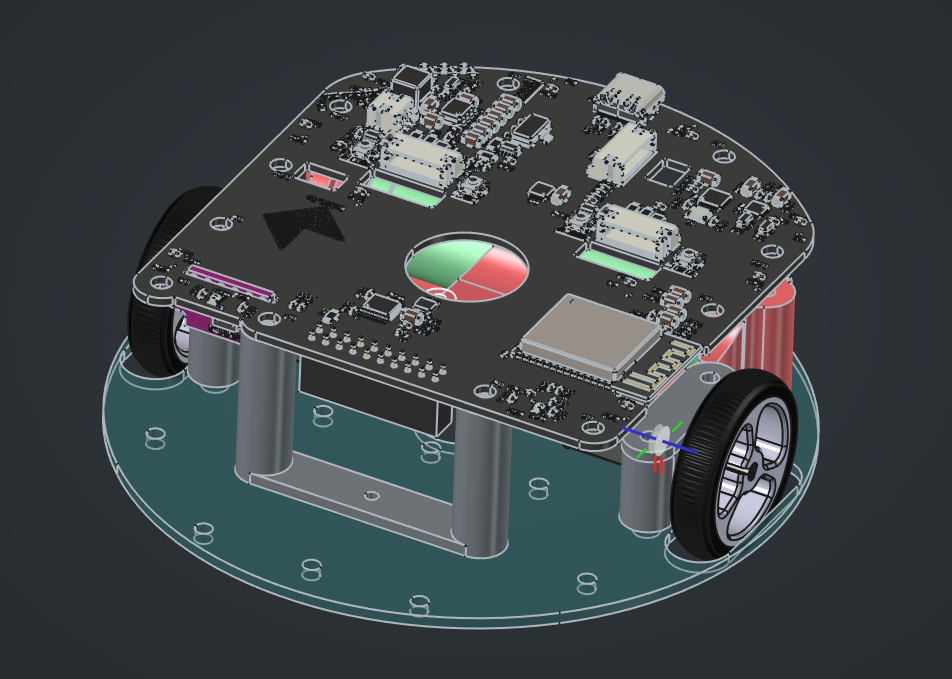

Motor Driver, from the project README
From the project README

Main components on the Motor Driver

INA219AxDCNDRV8837

Motor Driver bill of materials (BOM)

11 components, 9 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
INA219AxDCN
U3
1
DRV8837
U14
1
CONN_01X06_MOUNTINGPIN
Conn_01x06_MountingPin
J101
1
1.8A
F1
1
22U
22u
C10
2
22U
100n
C12, C14
1
100N
100n
C13
1
0R1
R6
2
5K1
1R
R9, R11

Motor Driver design files

The KiCad project lives in the kabot-io/kabot-hardware repository on GitHub; these links point at the commit this page was built from.

Motor Driver: common questions

How big is the Motor Driver PCB?

The Motor Driver measures 15.3 × 6.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Motor Driver?

11 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Motor Driver design files?

From the kabot-io/kabot-hardware repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Motor Driver design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
